Part / Model Numbers
332305J 5
Understanding the Model Number
Use the Code Sample provided below to identify each component’s location in the Model Number. The options for
each component that make up the code are provided on the lists below.
NOTE: Some pump configurations are not available. Contact Graco Customer Service or your local Graco distributor
for assistance.
G3 - G = Identifies pump as being a G3; G = Grease
G3 - A = Identifies pump as being a G3; A = Oil
Code aa: Power Source
• 12 = 12 Volts DC
• 24 = 24 Volts DC
• AC = 100 - 240 Volts AC
Code bb: Operation Control
• MX = Max (Cycle) Control
Code cc: Reservoir Capacity (Liters)
• 2L = 2 Liters
• 4L = 4 Liters
• 8L = 8 Liters
• 12 = 12 Liters
• 16 = 16 Liters
Code d: Follower Plate Installed
• F = Follower Plate Installed
• 0 = No Follower Plate
• A = Auto-Fill Shut Off
Code e: Low Level Option
• L = Low Level with Controller
• 0 = No Low Level monitoring
Code ff: Options
• 00 = No Options
• 03 = Powered Alarm Contact
• 05 = 5 Pin CPC power cable
• 07 = No Power Cord
• 08 = Normally open vent valve with alarm,
manual run, and low level in CPC
Code g, h, i, j, k, m, n, p
NOTE: Codes g - p relate to a specific location on the
G3 pump. See F
IG. 1 for these locations.
•C = CPC
•D = DIN
• 1, 2, 3 = Sensor Number
• R = Remote Manual Run
• M = Machine Count
• A = Alarm Output
• V = Vent Valve
• 0 = Not populated
• U = USB Port
G3 - G - MX
Code Sample: a a b b - c c d e f f - g h i j k m n p

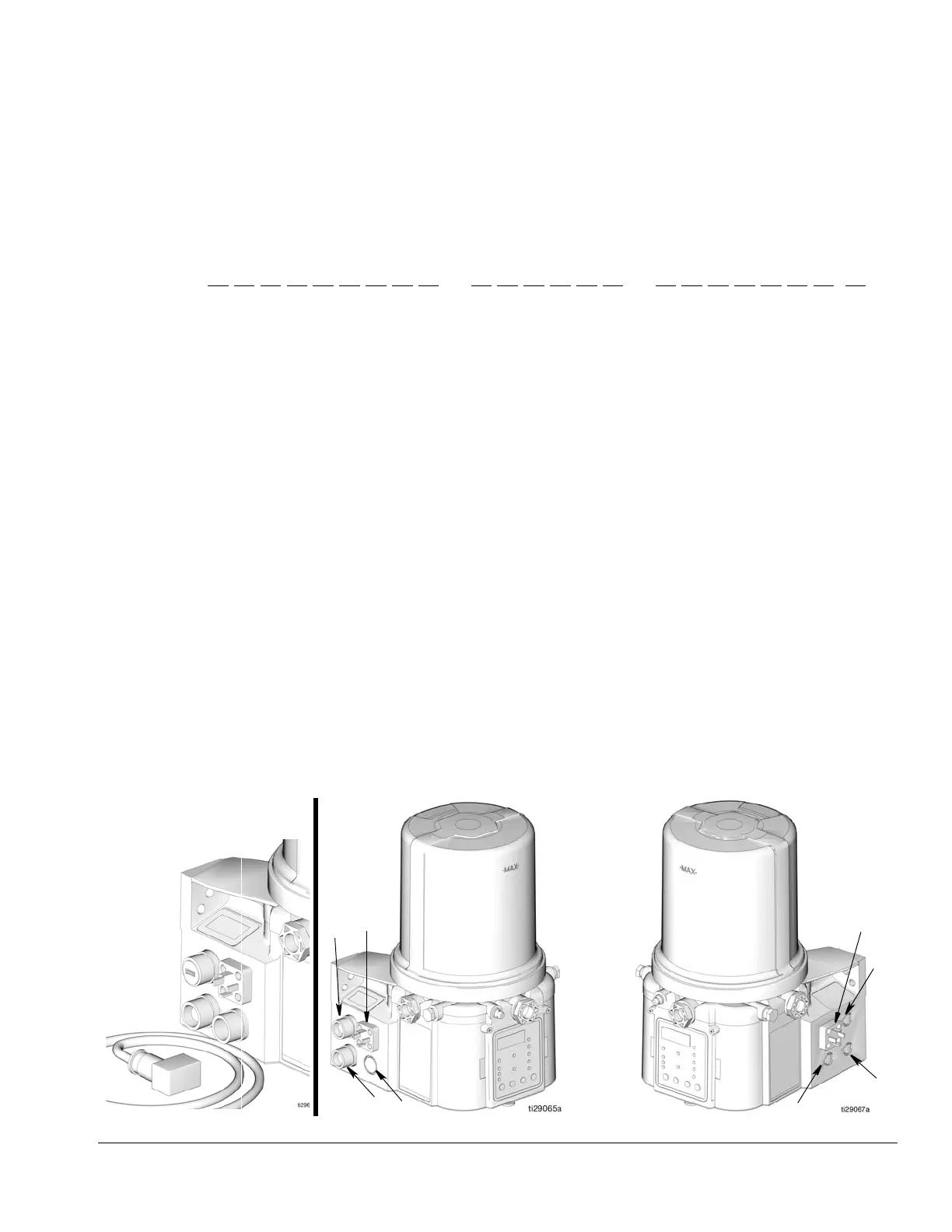

FIG. 1
