Run Mode
62 332305J
Additional Controls
Venting
In Max models a Vent Time can be set using the
Advanced Programming mode (page 51). This is typi-
cally done in a Pressure Based System (P1) to allow
injectors to reset.
• Unit vents for a set amount of time (not dis-
played).
• The LED’s next to C/P1, C/P2, C/P3 flash while
unit is venting.
• If Machine Count is set, the display will alternate
between machine counts remaining and backup
time (Max Model Rest Mode, page 60).
• If Machine Count has been set the LED next to
1-2-3 illuminates (F
IG. 52, page 61).
• If Machine Count has not been set the display
shows OFF Time (See Time Control, page 58).
• If Machine Count has not been set the LED next
to the clock in the OFF field illuminates (See
Time Control, page 58).
• While unit is venting, VEnt will display and alter-
nate with Machine Count and the Backup Time
or the OFF Time.
Prelube / Prelube Delay
In all models a power OFF/ON cycle can be controlled
with the Prelube and Prelube Delay functions.
Prelube
The Prelube function has been selected. Prelube delay
is set to 00:00:
• Power to the unit cycles OFF then ON.
• Unit immediately begins a lubrication cycle.
• Max Model - display shows Cycle/Pres-
sure/Backup Time (See Max Model Lubrication
Mode Controls, page 58).
Prelube Delay
The Prelube function has been selected. Prelube delay
is set to something other than 00:00:
• Power to the unit cycles OFF then ON.
• Unit immediately begins the Prelube Delay
count down until the lubrication cycle begins.
• The LED next to the clock in the OFF field is illu-
minated (F
IG. 54).
• The Prelube LED lights (F
IG. 54).
• The display shows time remaining until lubrica-

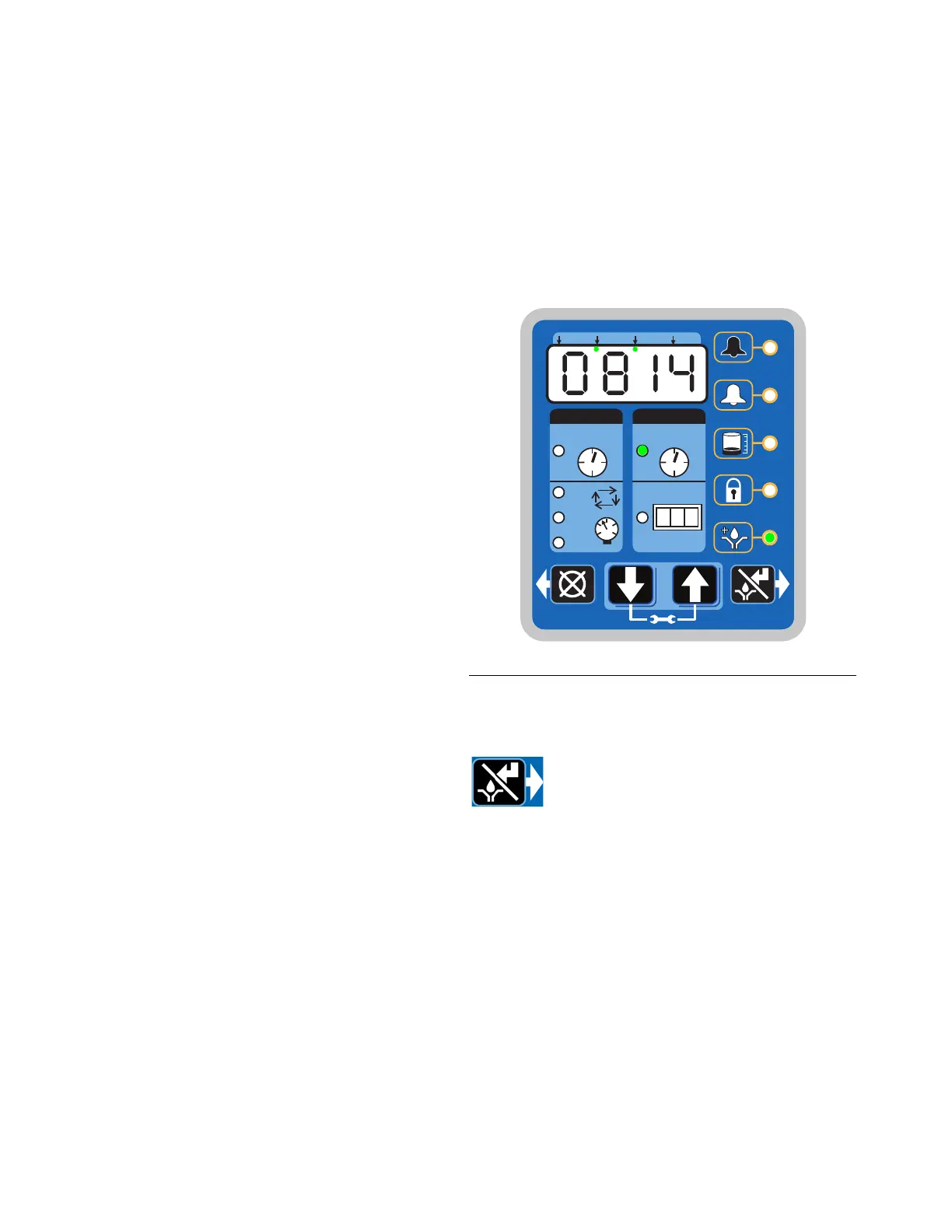

tion cycle begins. The example shown in F
IG. 54
shows 8 minutes and 14 seconds left until a
lubrication cycle begins.
Manual Run Cycle
To run an extra (non-programmed) lubrica-
tion cycle, push the Manual Start button.
NOTE: Manual Run option is not available while unit is
in Vent Mode.
FIG. 54
ON
OFF
!
1 23
HH MM
SS ##
MM : SS HH : MM
2
3
1
P
C
C
P
C
P
C
P
