Run Mode
332305J 61
With machine count set, the Rest Cycle (Pump OFF) is
ended when the machine count reaches zero (0000).
Machine Count
• A set number of triggered counts.
• The LED next to 1-2-3 illuminates (F
IG. 52).
• The display indicates the number of machine
counts remaining.

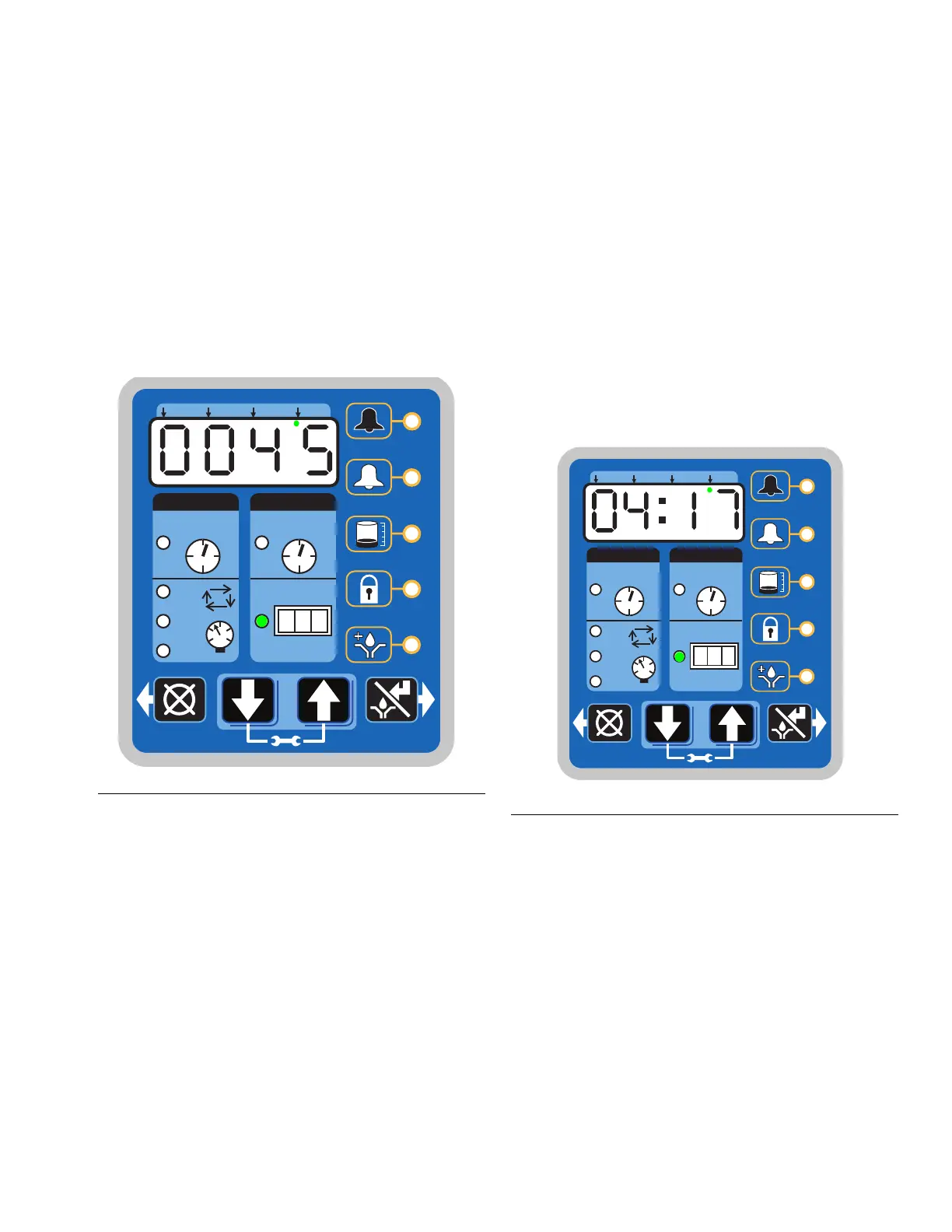

The example shown in F
IG. 52 shows the
remaining number of machine counts is 0045.
Backup Time
In Machine Count mode, if a Backup Time (maximum
rest time) has been set:
• The LED next to 1-2-3 illuminates (F
IG. 53).
• The display shows the amount of time remain-
ing till a fault or lubrication mode (pump ON).
The example shown in F
IG. 53 shows 4 hours
and 17 minutes remaining until a fault or lubrica-
tion mode (pump ON) occurs.
• If the Machine Count requirements are met the
unit will exit the Rest Mode (Pump OFF) and
enter the Lubrication Mode (Pump ON).
OFF Time
In Max models if the Machine Count is set to 0000 then
Reset Mode (Pump OFF) is controlled with OFF Time
(see Time Control, page 58).
F
IG. 52
ON
OFF
!
1 23
HH MM
SS ##
MM : SS HH : MM
2
3
1
P
C
C
P
C
P
C
P
FIG. 53
ON
OFF
!
1 23
HH MM
SS ##
MM : SS HH : MM
2
3
1
P
C
C
P
C
P
C
P
