Run Mode
60 332305J
Backup Time
• In both Cycle and Pressure modes a Backup
Time (maximum run time) has been set.
• The LED(s) next to all programmed sensors
(C/P1, C/P2, C/P3) illuminate.
• The display shows time remaining until a fault.

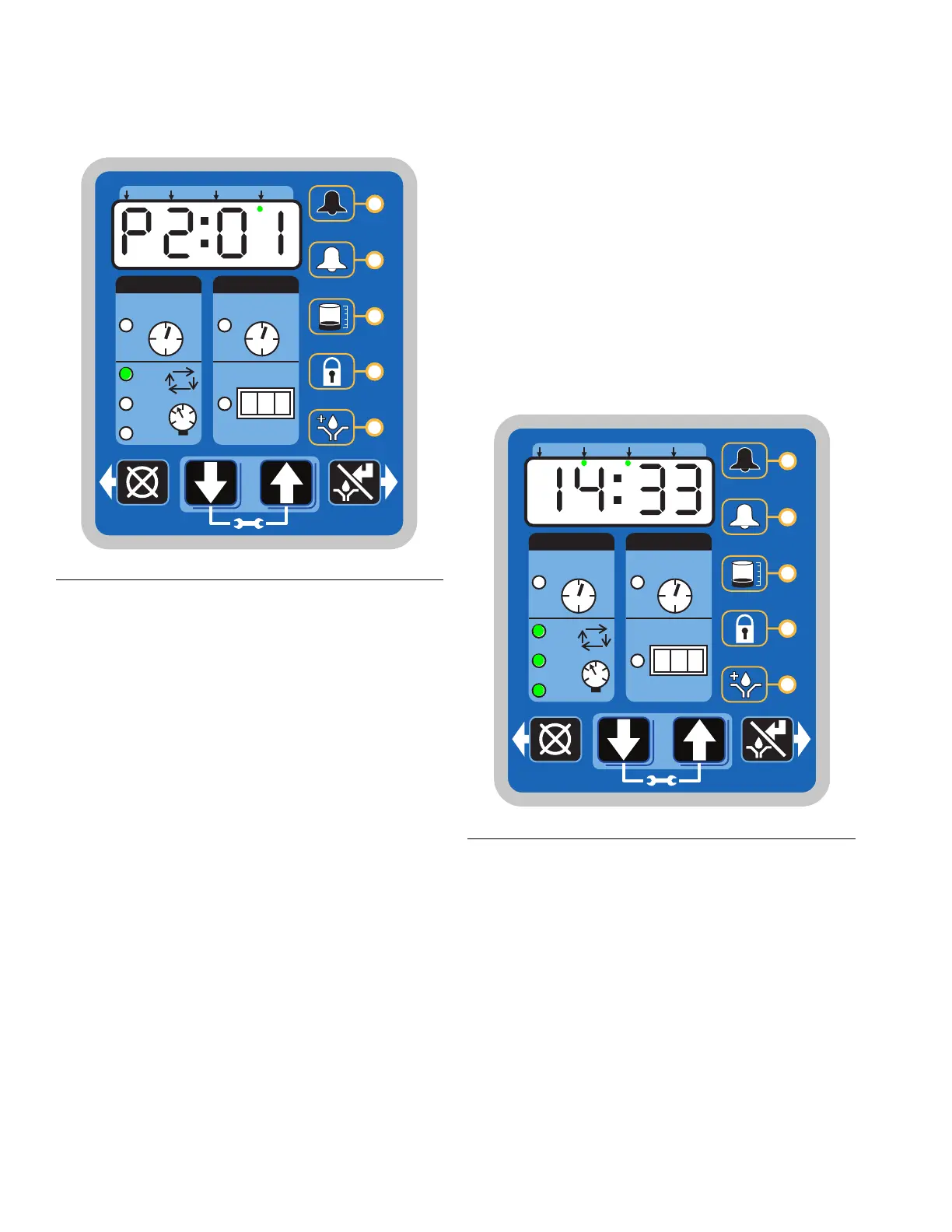

The example shown in F
IG. 51 shows 14 min-
utes and 33 seconds left until the fault occurs.
• If all cycle and/or pressure requirements are
met the unit exits the lubrication cycle (Pump
ON) and enter the rest cycle (Pump OFF).
Rest Mode (Pump OFF) Controls
In Max models the Rest Mode (Pump OFF) is controlled
by machine counts.
If the Machine Count is set to a value greater than 0000
and the Backup Time option is activated, the display
will alternate between Machine Counts and Backup
Time.
If Machine Count has been set to a value greater than
0000 and the Backup Time option is NOT activated, the
display will only show the number of Machines Counts
remaining.
F
IG. 50
ON
OFF
!
1 23
HH MM
SS ##
MM : SS HH : MM
2
3
1
P
C
C
P
C
P
C
P
FIG. 51
ON
OFF
!
1 23
HH MM
SS ##
MM : SS HH : MM
2
3
1
P
C
C
P
C
P
C
P
