Graco G3 Series User Manual

Alarms: Firmware Versions 6.01 and Below
332305J 65

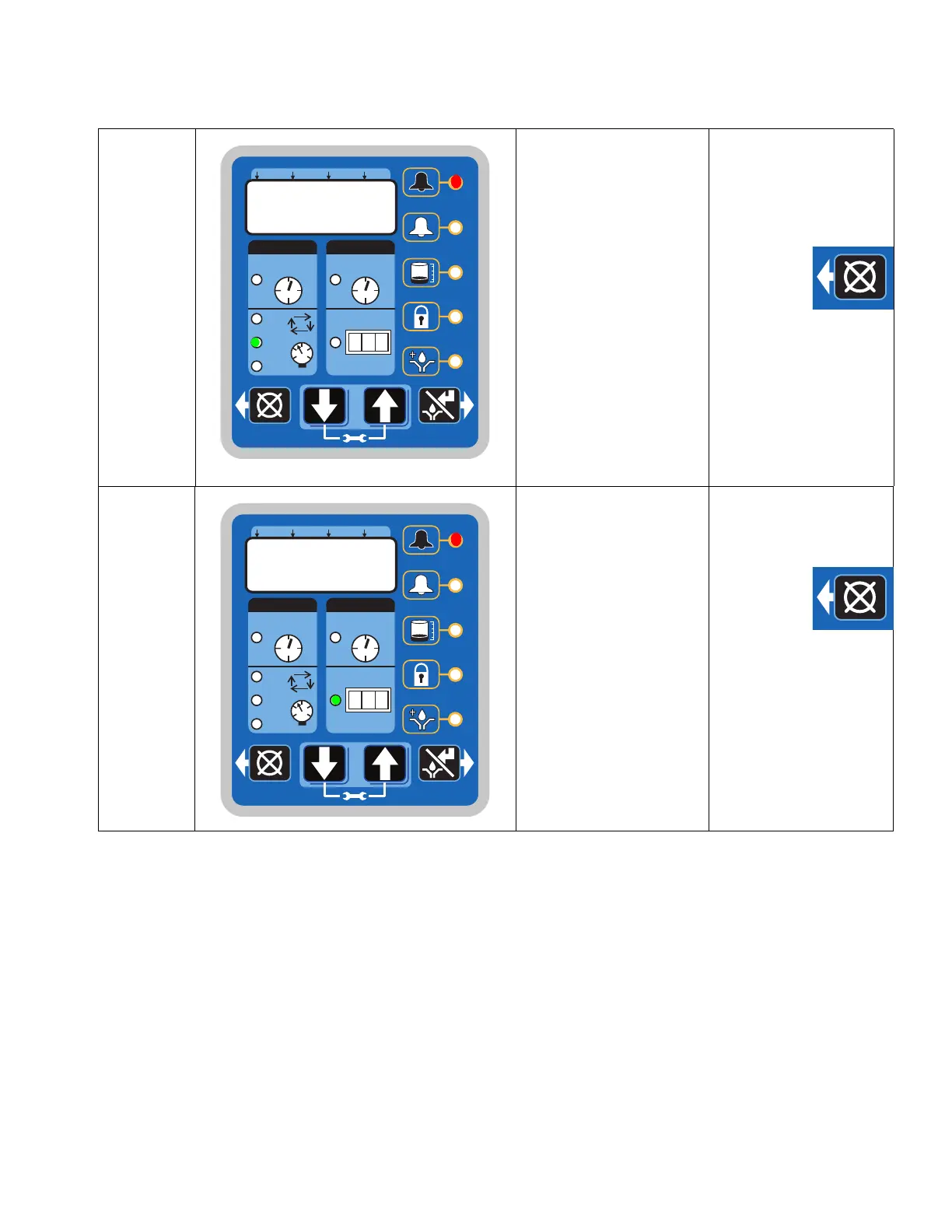

Cycle /
Pressure
Fault
In pressure mode indi-
cates that unit is over pres-
surized or a lubrication
cycle was not completed in
the user-defined amount of
time.
In cycle mode indicates
that a cycle was not com-
pleted in the user-defined
amount of time.
LED corresponding to the
affected sensor input
blinks.
Could be more than one
sensor alarm at the same
time.
Examine system to deter-
mine if you have a
plugged or broken line or
other component failure,
i.e., divider valve, injector.
Press and
hold the
RESET but-
ton to clear
fault.
Machine
Count Fault
Unit has not received the
correct number of machine
counts in the user defined
Backup Time.
Examine system to deter-
mine if the machine sen-
sor is operating properly.
Press and
hold the
RESET but-
ton to clear
fault.
ON
OFF
!
1 23
HH MM
SS ##
MM : SS HH : MM
2
3
1
P
C
C
P
C
P
C
P
ON
OFF
!
1 23
HH MM
SS ##
MM : SS HH : MM
2
3
1
P
C
C
P
C
P
C
P
