Setup/Startup
14 3A3426EOperation

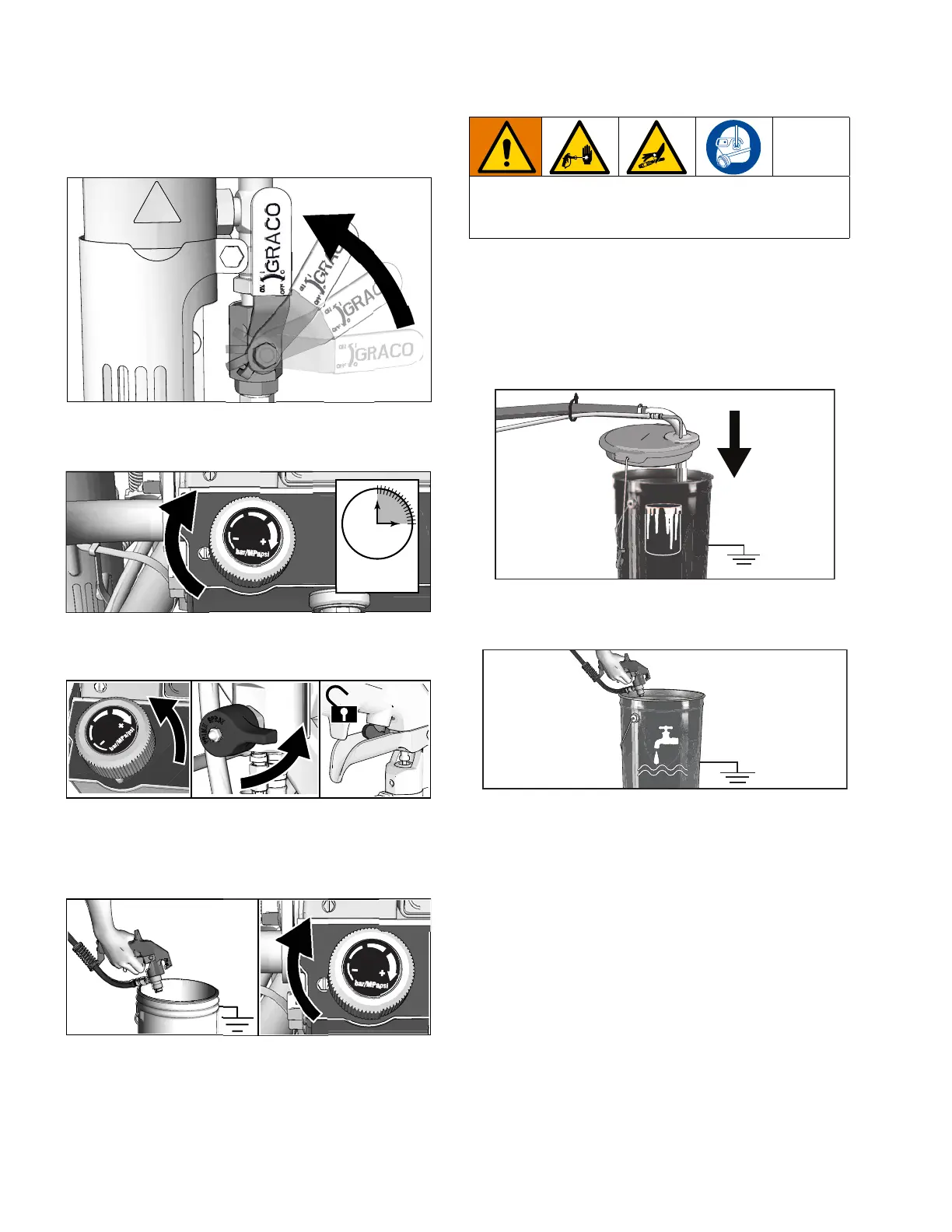

14. Set pump switch to ON (pump is now active). For
200
DC, perform this step for first color/pump to be
primed.
15. Increase pressure control enough to start pump.
Allow fluid to circulate for 15 seconds.
16. Turn pressure down, turn prime valve horizontal.
Disengage gun trigger lock.
17. Hold all guns against a grounded metal flushing pail.
Trigger guns and increase fluid pressure slowly until
pumps run smoothly.
18. Inspect fittings for leaks. If leaks occur, turn sprayer
OFF immediately. Perform Pressure Relief
Procedure. Tighten leaky fittings. Repeat Startup,
steps 1 - 17. If no leaks, continue to trigger gun until
system is thoroughly flushed. Proceed to step 19.
19. Place siphon tube in paint pail.
20. Trigger all guns again into a flushing fluid pail until
paint appears. Assemble tips and guards.
21. For 200
DC, repeat steps 8-9, and 14-20 for second
color/pump to be primed.
High-pressure spray is able to inject toxins into the
body and cause serious bodily injury. Do not stop
leaks with hand or rag.
ti27613a
ti27774a
