Parts
312760A 55

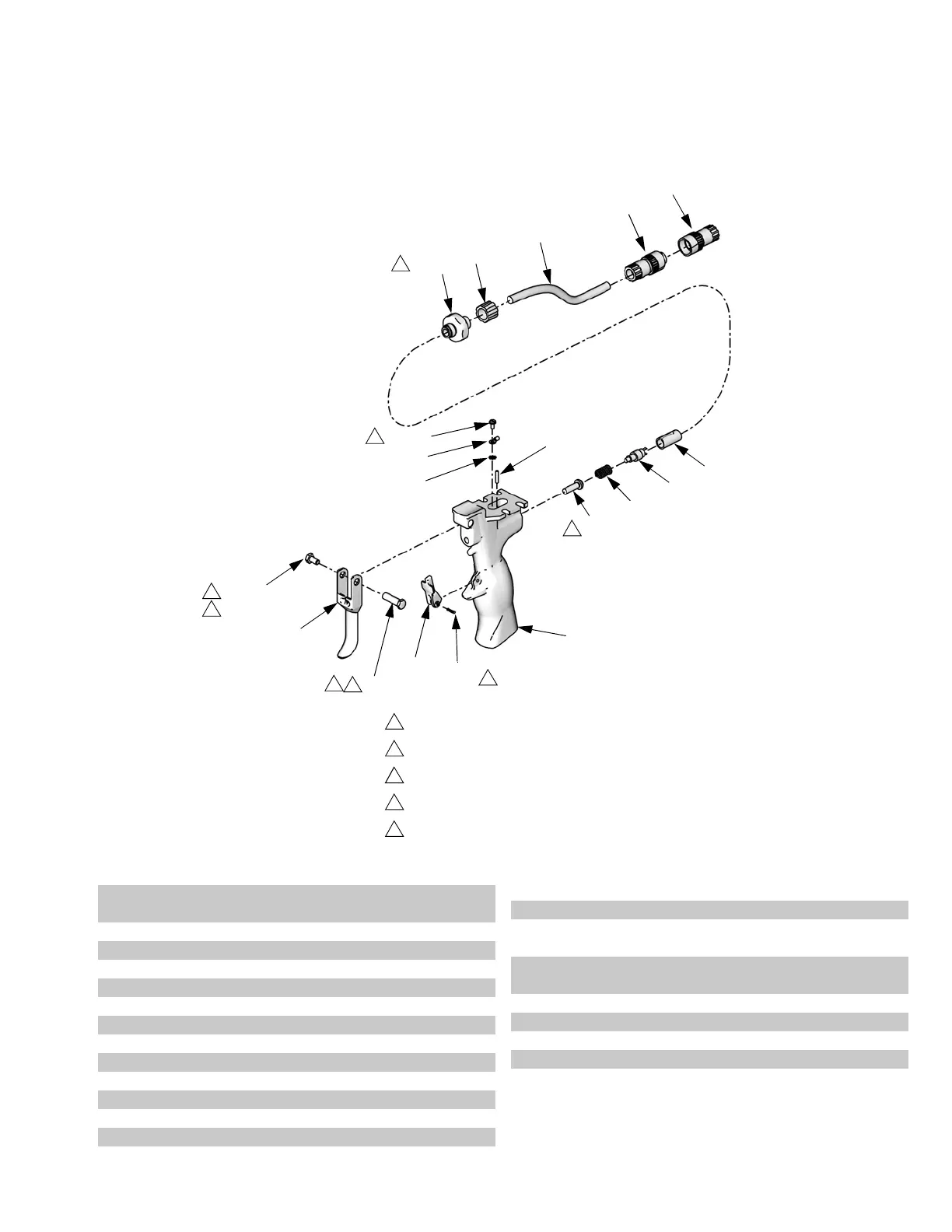

Dispense Valve Handle, Part 255208
*Not shown.
1018
1017
1019
1011
1010
1008
1009
1015
1014
1016
1013
1001
1003
1002
1005
1004
1006
1012
1007
Apply lubricant, part 070272.
Torque to 20-30 in-lb (2.3-3.4 N•m)
Press fit pin to bottom.
Torque to 125-135 in-lb (14.1-15.2 N•m)
Torque to 15-20 in-lb (1.7-2.2 N•m)
1
2
3
4
5
1
1
1
2
2
3
4
5
ti12477a
Ref Part Description Qty
1001 15K666 HANDLE, 2K dispense valve, elec-
tric
1
1002 276745 STOP, trigger 1
1003 112033 PIN, dowel 1
1004 15B209 TRIGGER, gun 1
1005 192272 PIN, pivot 1
1006 203953 SCREW, hex head cap 1
1007 101995 PIN, spring str 1
1008 112312 TERMINAL, ring 1
1009 112505 WASHER, lock 1
1010 112506 SCREW, ground 1
1011 15K670 PLUG, air valve 1
1012 551318 CONNECTOR, relief 1/4 npt 1
1013 15K668 PLUNGER, trigger, 2K handle 1
1014 551320 SWITCH, electric mini snap action 1
1015 15K671 SPACER, switch 1
1016 551396 SPRING, 0.26 x 0.37 x 0.51 music
wire
1
1017 551325 CONNECTOR, cable, female,
3-socket
1
1018 551324 CONNECTOR, cable, male, 3-pin 1
1019 111647 CABLE, 4 conductor 1.5
1020 117026 SCREW, socket head cap, M5 x 12 4
1021 * 070272 LUBRICANT, grease 1
Ref Part Description Qty
