Parts
56 312760A
Lever Actuated MD2 Valves, LC0121 and LC0123
† See MD2 manual referenced at the beginning of this manual for dispense valve parts information.
1101b
1101a
1103
1102
ti12441a

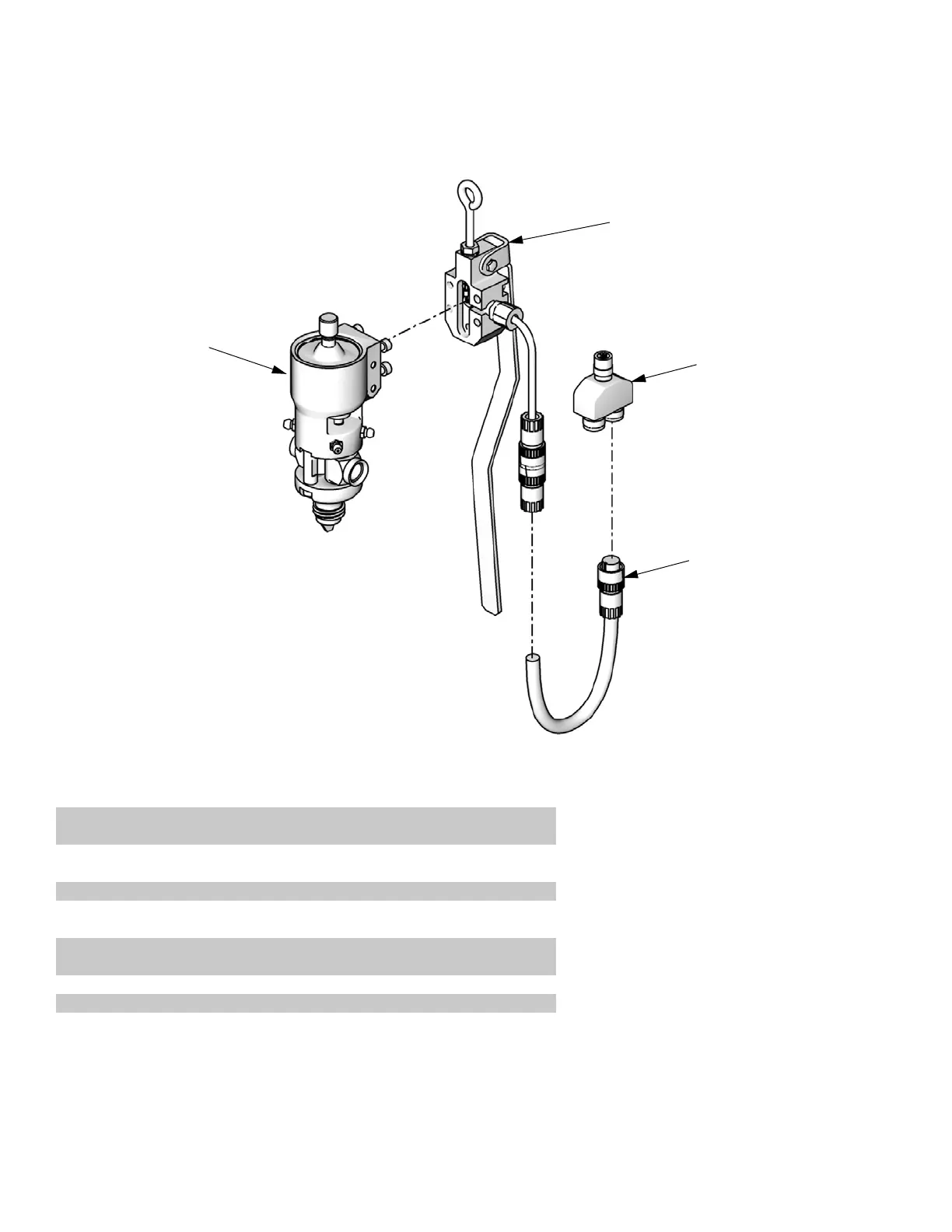

Assembly LC0121 Shown
Ref Part Description Qty
1101 LC0005 VALVE, assembly, 1:1, lever, electric
(assembly LC0121 only)
1
LC0007 VALVE, assembly, 10:1, lever, electric
(assembly LC0123 only)
1
1101a 255249 LEVER, 2K dispense valve 1
1101b
† 255181 VALVE, dispense, 10:1, soft seats
(assembly LC0123 only)
1
† 255179 VALVE, dispense, 1:1, soft seats
(assembly LC0121 only)
1
1102 121198 CORD, euro, male, 4 pin, 3 wire, 6 m l 1
1103 120953 CONNECTOR, splitter 1
