Graco PR70 - Operator (Manual) Mode Operation

Parts
312760A 57

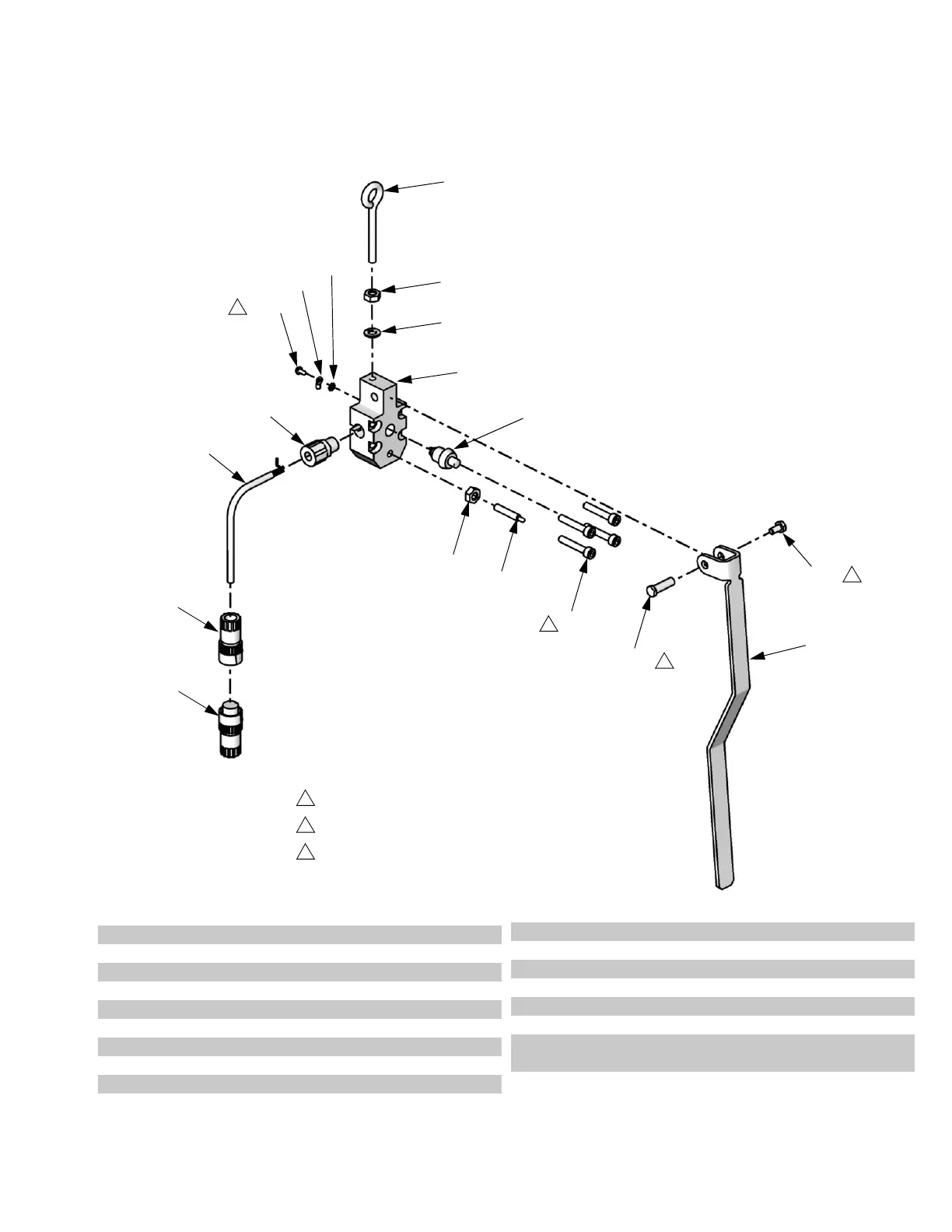

Dispense Valve Lever, Part 255249
*Not shown.
1202
1203
1204
1201
1207
1206
1211
1205
1210
1209
1203
1213
1212
1214
1208
1215
1217
1216
Apply adhesive 070269 to threads.
Torque to 15-20 in-lb (1.7-2.2 N•m)
Torque to 20-30 in-lb (2.3-3.4 N•m)
1
2
3
1
2
3
3
ti12485a
Ref Part Description Qty
1201 15K922 BLOCK, mounting, lever, 2K 1
1202 121191 BOLT, eye, 1/4 - 20 x 2.00, mild steel 1
1203 100015 NUT, hex mscr 2
1204 100016 WASHER, lock 1
1205 192272 PIN, pivot 1
1206 203953 SCREW, hex head cap 2
1207 121192 SWITCH, pb, no 1
1208 551318 CONNECTOR, relief 1/4 npt 1
1209 121193 PLUNGER, spring, 1/4-20 1
1210 121194 SCREW, socket head cap, M5-0.8 x
30, mild steel
4
1211 15M479 LEVER, actuator, valve 1
1212 112312 TERMINAL, ring 1
1213 112505 WASHER, lock 1
1214 112506 SCREW, ground 1
1215 111647 CABLE, 4 conductor 1.5
1216 551324 CONNECTOR, cable, male, 3-pin 1
1217 551325 CONNECTOR, cable, female,
3-socket
1
1218 * 070269 SEALANT, anaerobic 1
Ref Part Description Qty
