Graco ProMix 2KS Repair Manual

Pressure Relief Procedure
16 312780K

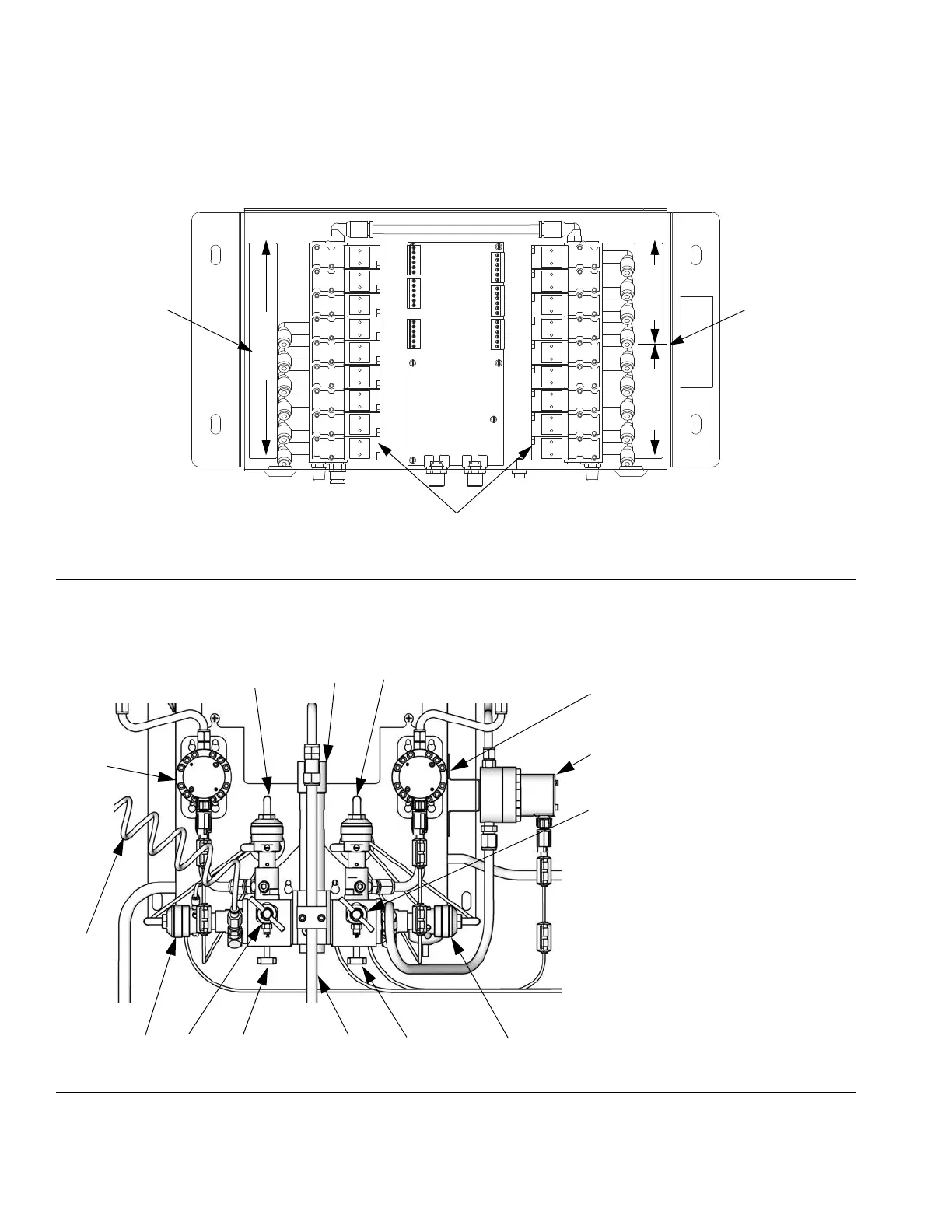

FIG. 3: Color Change Solenoids
TI12826a
Solvent Solenoid
Overrides
Solenoid
Identification
Label
Solenoid
Identification
Label
Color
Color Catalyst
FIG. 4. Wall Mount Fluid Station
TI12556b
MA
MB
DVB
MS
SPV
DVA
APV
SM
FI
SVA SVB
RVB
RVA
AT
Key:
MA Component A Meter
DVA Component A
Dose Valve
RVA Component A
Sampling Valve
SVA Component A
Shutoff Valve
MB Component B Meter
DVB Component B
Dose Valve
RVB Component B
Sampling Valve
SVB Component B
Shutoff Valve
MS Solvent Meter
(accessory)
SPV Solvent Purge Valve
APV Air Purge Valve
SM Static Mixer
FI Fluid Integrator
AT Air Purge Valve Air
Supply Tube
