Parts
312780K 61
Parts
ProMix 2KS Automatic Wall Panel System
Configurator Key
The configured part number for your equipment is printed on the equipment identification labels. See the
illustrations below for location of the identification labels. The part number includes one digit from each of
the following six categories, depending on the configuration of your system. The digits in this table do not
correspond to ref. nos. in the parts lists or parts drawings.
Automatic
System
Control and Display A and B Meter Color Valves Catalyst Valves Flow
Control
A D = EasyKey with LCD Display 0 = No Meters
1 = G3000 (A and B)
2 = G3000HR (A and B)
3 = 1/8 in. Coriolis (A) and
G3000 (B)
4 = G3000 (A) and 1/8 in.
Coriolis (B)
5 = 1/8 in. Coriolis (A) and
G3000HR (B)
6 = G3000HR (A) and 1/8 in.
Coriolis (B)
7 = 1/8 in. Coriolis (A and B)
0 = No Valves
(single color)
1 = Two Valves
(low pressure)
2 = Four Valves
(low pressure)
3 = Seven Valves
(low pressure)
4 = Twelve Valves
(low pressure)
0 = No Valves
(single catalyst)
1 = Two Valves
(low pressure)
2 = Four Valves
(low pressure)
N = No
Y = Yes
A
(acid
models)
E = EasyKey with LCD Display 1 = G3000 (A) and G3000A
(B)
0 = No Valves
(no color; need
to order acid kit
26A096-26A100;
see page 79)
0 = No Valves
(single catalyst)
N = No

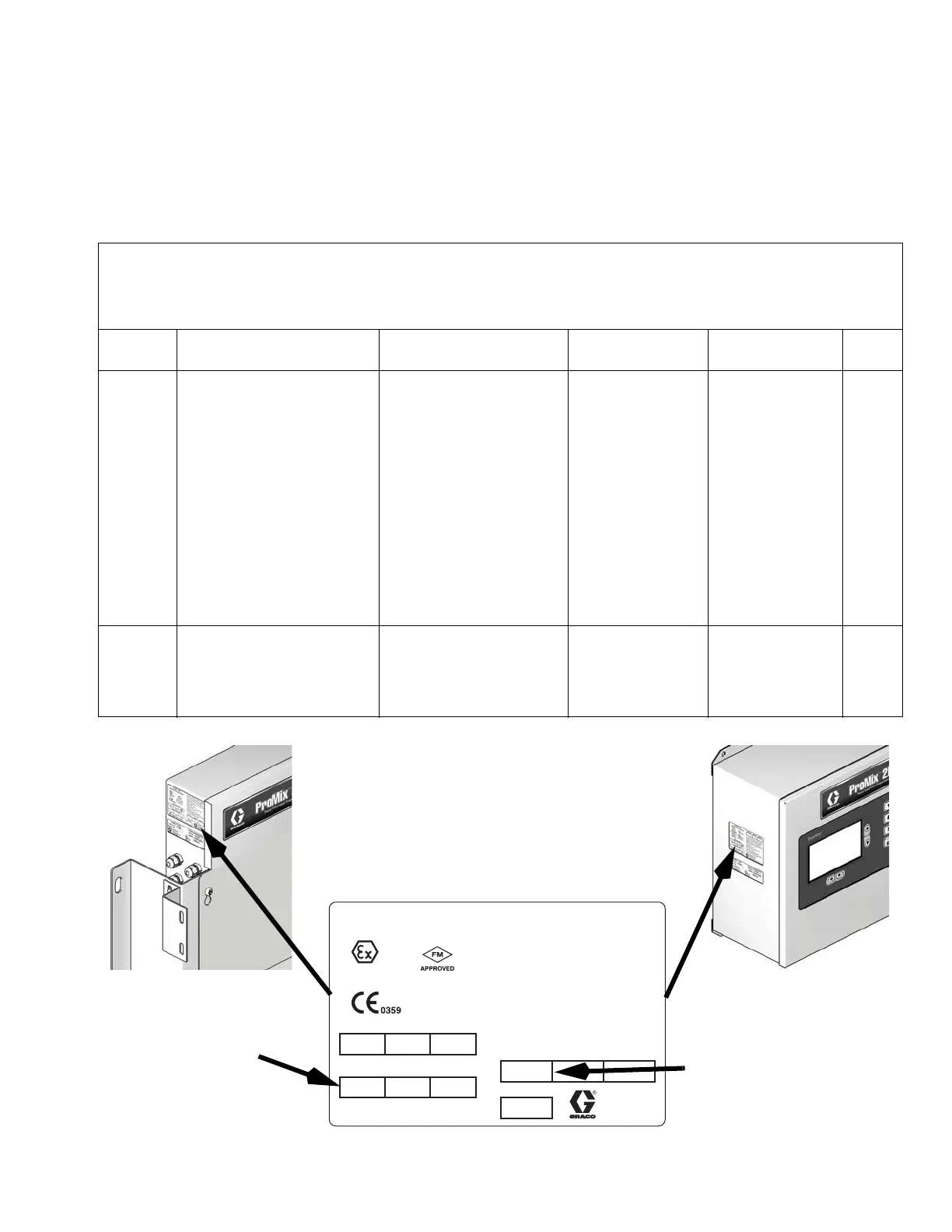

Label Location
on EasyKey
Label Location on
Fluid Station
Maximum Fluid
Working Pressure
is listed here
TI12418aTI12423a
6-Digit Configured Part No.
To Next Page
