System Configuration and Part Numbers
6 312780K
RoboMix Fluid Station Configurator Key
The configured part number for your equipment is printed on the equipment identification labels. See FIG. 2
for location of the identification labels. The part number includes one digit from each of the following six
categories, depending on the configuration of your system.
RoboMix
System
Control and Display A and B Meter Color Valves Catalyst Valves Flow
Control
R D = EasyKey with LCD Display 0 = No Meters
1 = G250 (A and B)
2 = G250HR (A and B)
0 = No Valves
(single color)
1 = Two Valves
(low pressure)
2 = Four Valves
(low pressure)
3 = Seven Valves
(low pressure)
4 = Twelve Valves
(low pressure)
0 = No Valves
(single catalyst)
1 = Two Valves
(low pressure)
2 = Four Valves
(low pressure)
N = No
Y = Yes

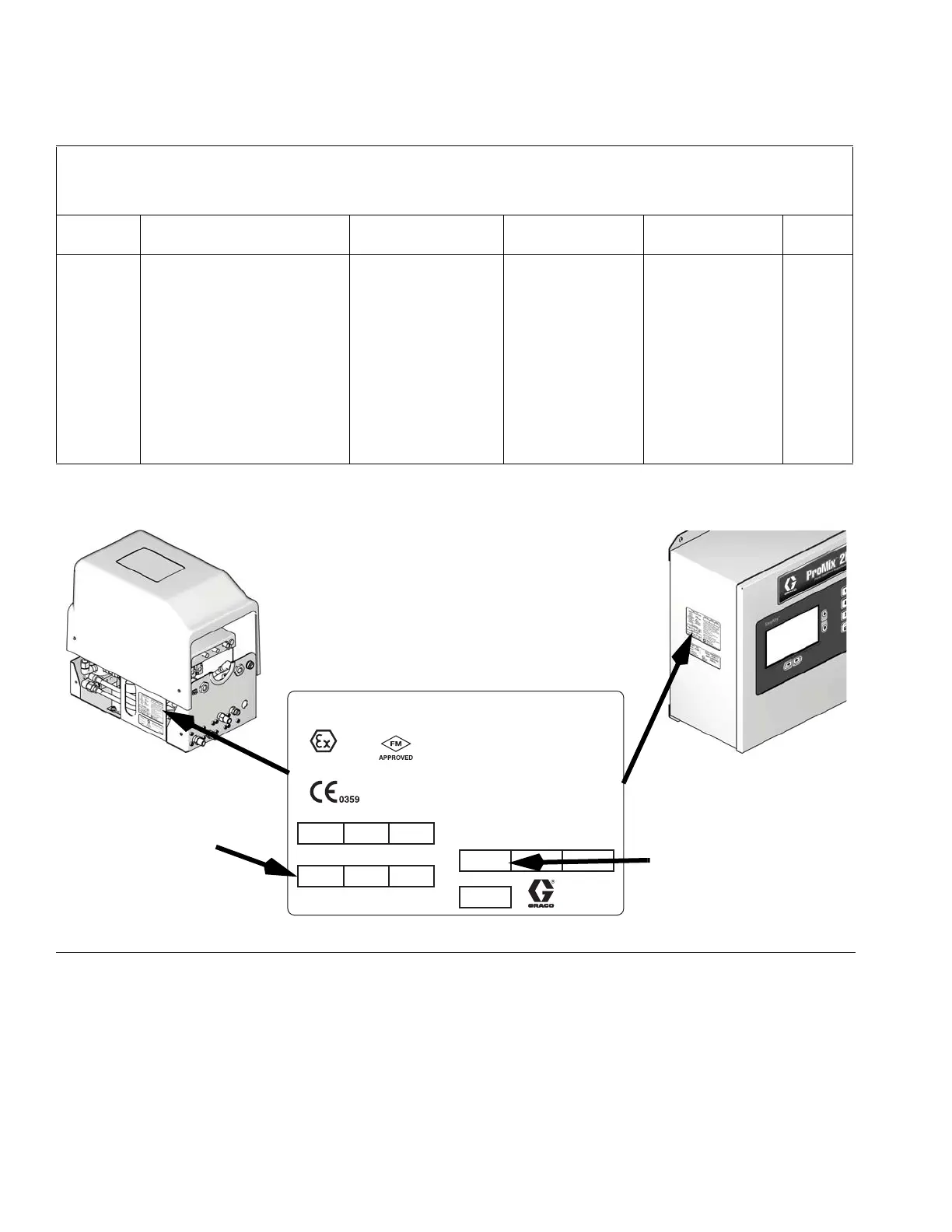

FIG. 2: Identification Label, Automatic RoboMix Fluid Station Systems
 

  

  
 































Label Location
on EasyKey
Label Location on
RoboMix Fluid Station
Maximum Fluid
Working Pressure
is listed here
TI12418aTI12512a
Configured Part Number
