Graco ProMix 2KS Repair Manual

Troubleshooting
20 312780K
Wall Mount Fluid Manifold Troubleshooting
See FIG. 6. To remove the fluid manifold, see page 51.
See manual 312781 for complete information on the
fluid manifold.

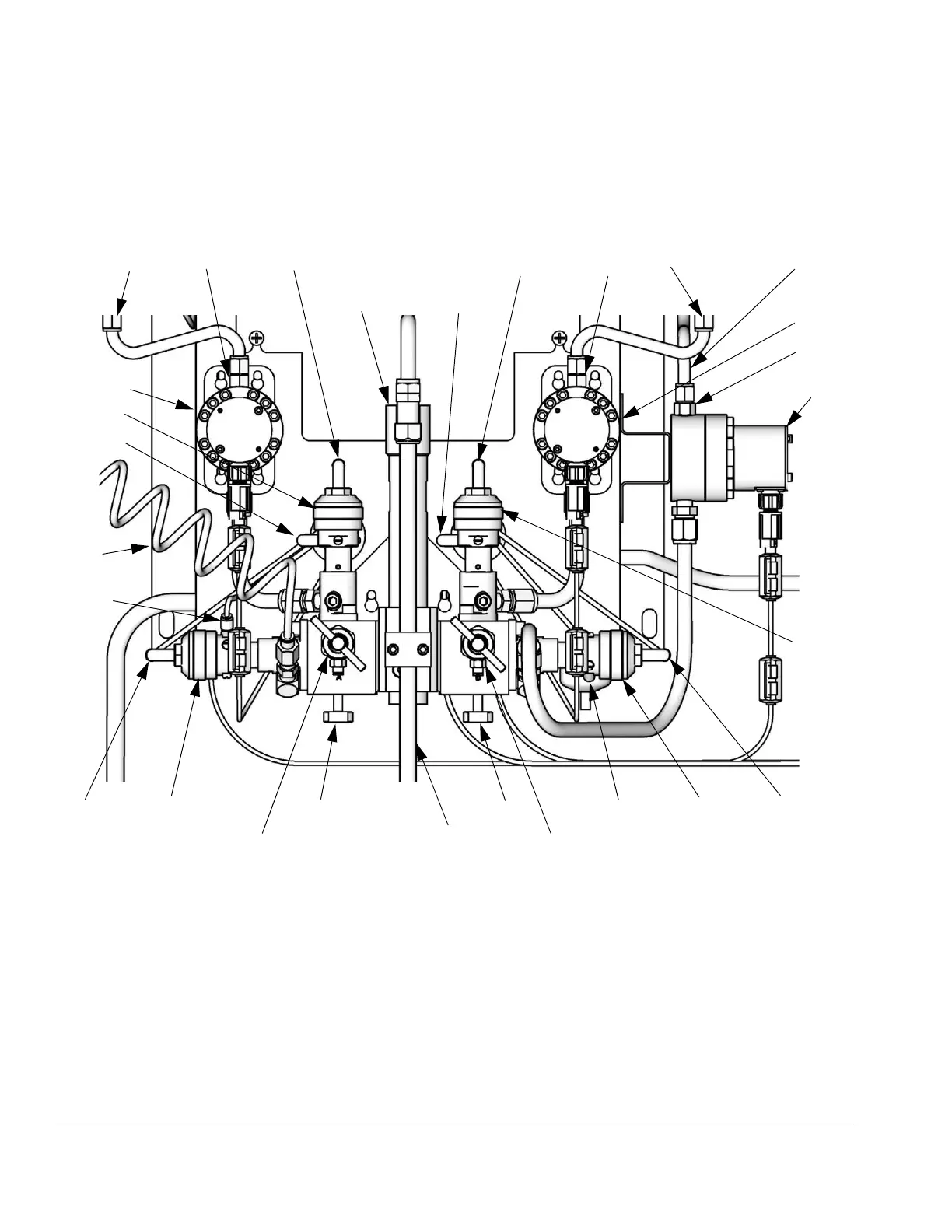

F
IG. 6. Wall Mount Fluid Manifold
Key:
Component A Side
MA Component A Meter
DVA Component A Dose Valve
RVA Component A Sampling Valve
SVA Component A Shutoff Valve
APV Air Purge Valve
AT Air Purge Valve Air Supply Tube
ASL Component A Supply Line
ACV Meter A Check Valve
Component B Side
MB Component B Meter
DVB Component B Dose Valve
RVB Component B Sampling Valve
SVB Component B Shutoff Valve
BSL Component B Supply Line
BCV Meter B Check Valve
SPV Solvent Purge Valve
SSL Solvent Supply Line
MS Solvent Meter (accessory)
SCV Solvent Meter Check Valve
Mixed Material
SM Static Mixer
FI Fluid Integrator
TI12556b
MA
MB
DVB
MS
SPV
DVA
APV
SM
FI
SVA SVB
RVBRVA
AT
DVA OFF
DVA ON
APV ON
APV OFF SPV OFFSPV ON
DVB OFF
DVB ON
ASL BSL SSLACV BCV
SCV
