System Configuration and Part Numbers
4 312780K
System Configuration and Part Numbers
Wall Mount Fluid Station Configurator Key
The configured part number for your equipment is printed on the equipment identification labels. See FIG. 1
for location of the identification labels. The part number includes one digit from each of the following six
categories, depending on the configuration of your system.
Automatic
System
Control and Display A and B Meter Color Valves Catalyst Valves Flow
Control
A D = EasyKey with LCD Display 0 = No Meters
1 = G3000 (A and B)
2 = G3000HR (A and B)
3 = 1/8 in. Coriolis (A) and
G3000 (B)
4 = G3000 (A) and 1/8 in.
Coriolis (B)
5 = 1/8 in. Coriolis (A) and
G3000HR (B)
6 = G3000HR (A) and 1/8 in.
Coriolis (B)
7 = 1/8 in. Coriolis (A and B)
0 = No Valves
(single color)
1 = Two Valves
(low pressure)
2 = Four Valves
(low pressure)
3 = Seven Valves
(low pressure)
4 = Twelve Valves
(low pressure)
0 = No Valves
(single catalyst)
1 = Two Valves
(low pressure)
2 = Four Valves
(low pressure)
N = No
Y = Yes
A
(acid
models)
E = EasyKey with LCD Display 1 = G3000 (A) and G3000A
(B)
0 = No Valves
(no color; need to
order acid kit
26A096-26A100;
see page 8)
0 = No Valves
(single catalyst)
N = No

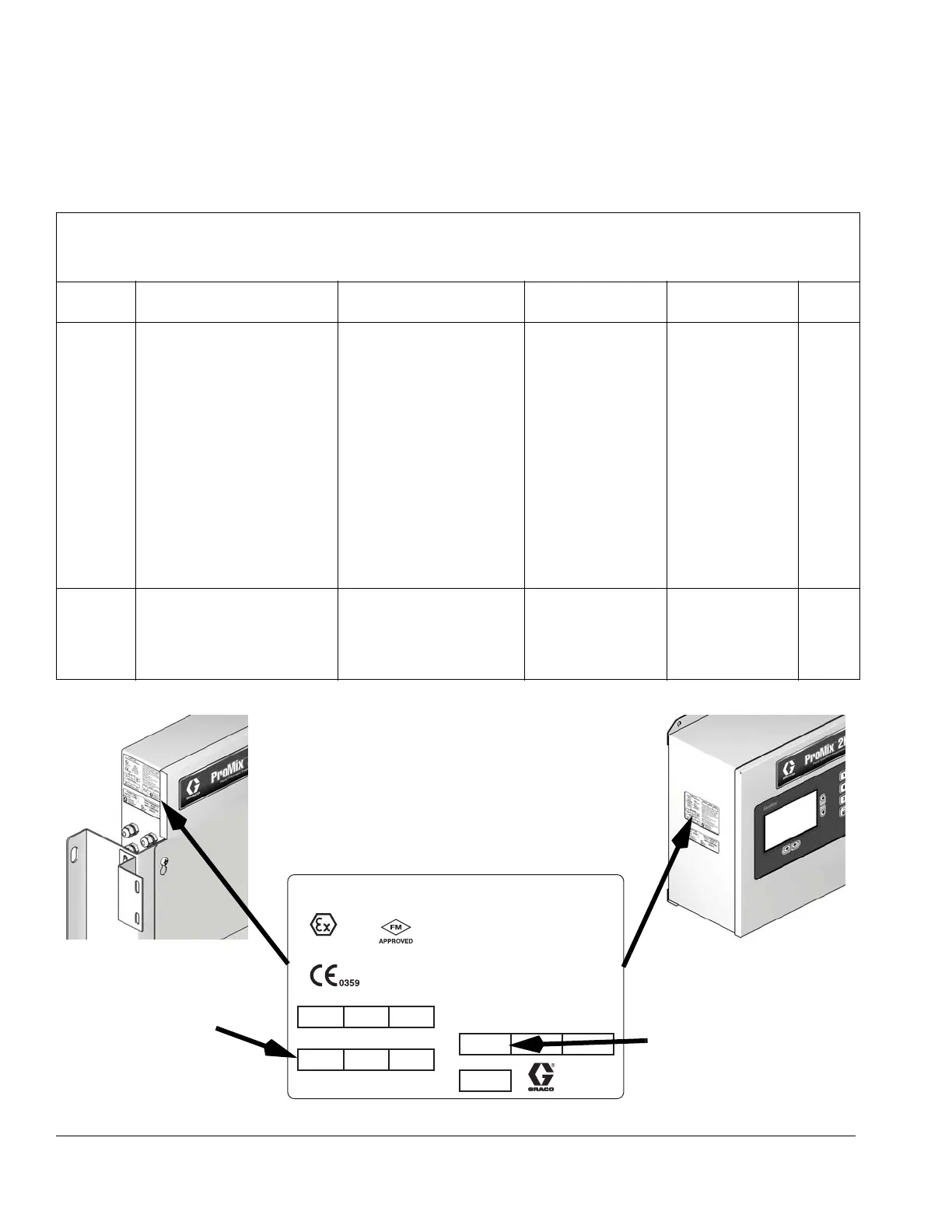

FIG. 1: Identification Label, Automatic Wall Fluid Station Systems
Label Location
on EasyKey
Label Location
on Fluid Station
Maximum Fluid
Working Pressure
is listed here
TI12418aTI12423a
Configured Part Number
