Service
52 312780K
RoboMix Fluid Station
Preparation
1. Follow Before Servicing, page 40.
2. Remove the RoboMix cover (410). F
IG. 26.
3. Note the position of all RoboMix hoses, then discon-
nect them.

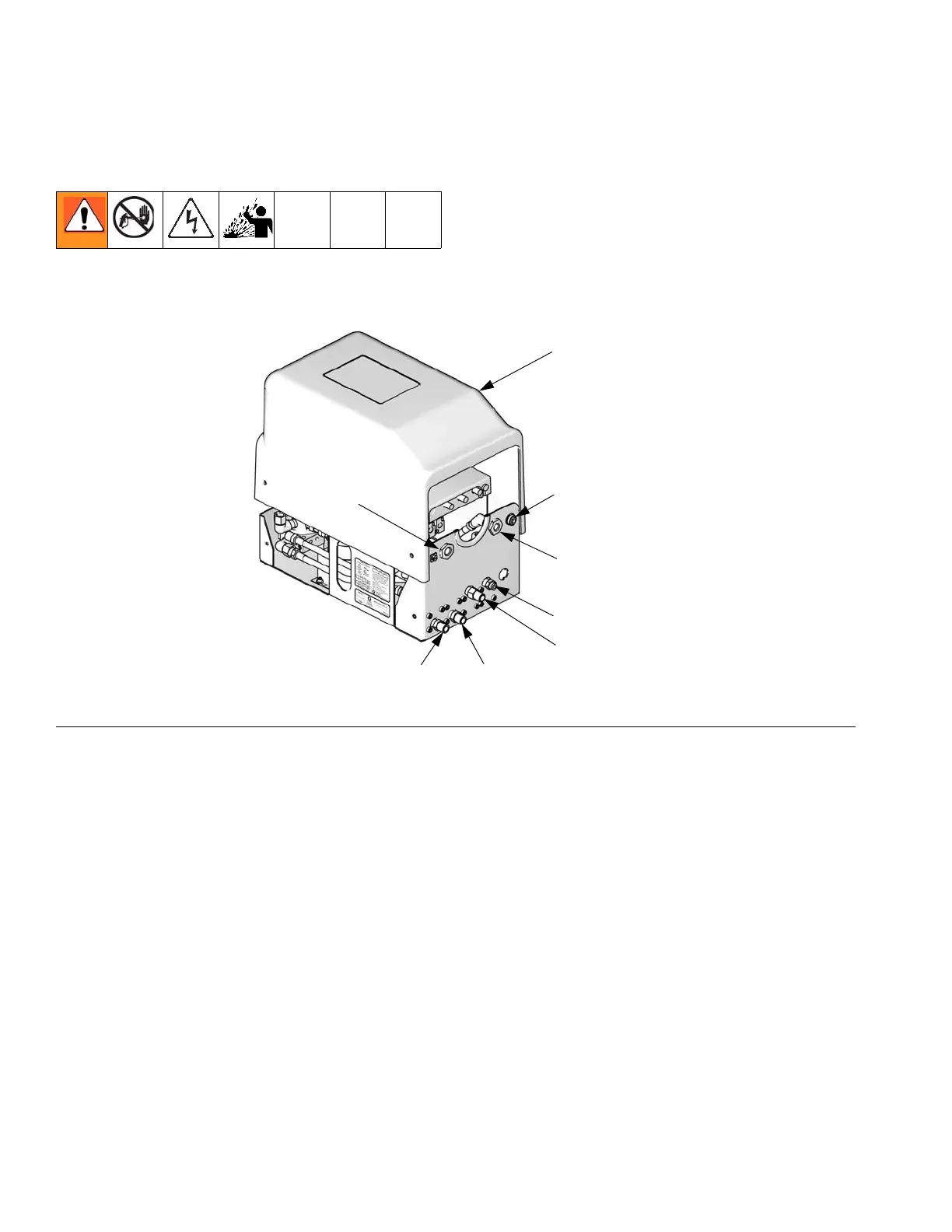

FIG. 26: RoboMix Fluid Station
Air Purge Inlet
Solvent Inlet
B Dump Outlet
A Inlet
B Inlet
Air Logic Inlet
A Dump Outlet
410
TI12512a
