Graco ProMix 2KS Repair Manual

Parts
78 312780K

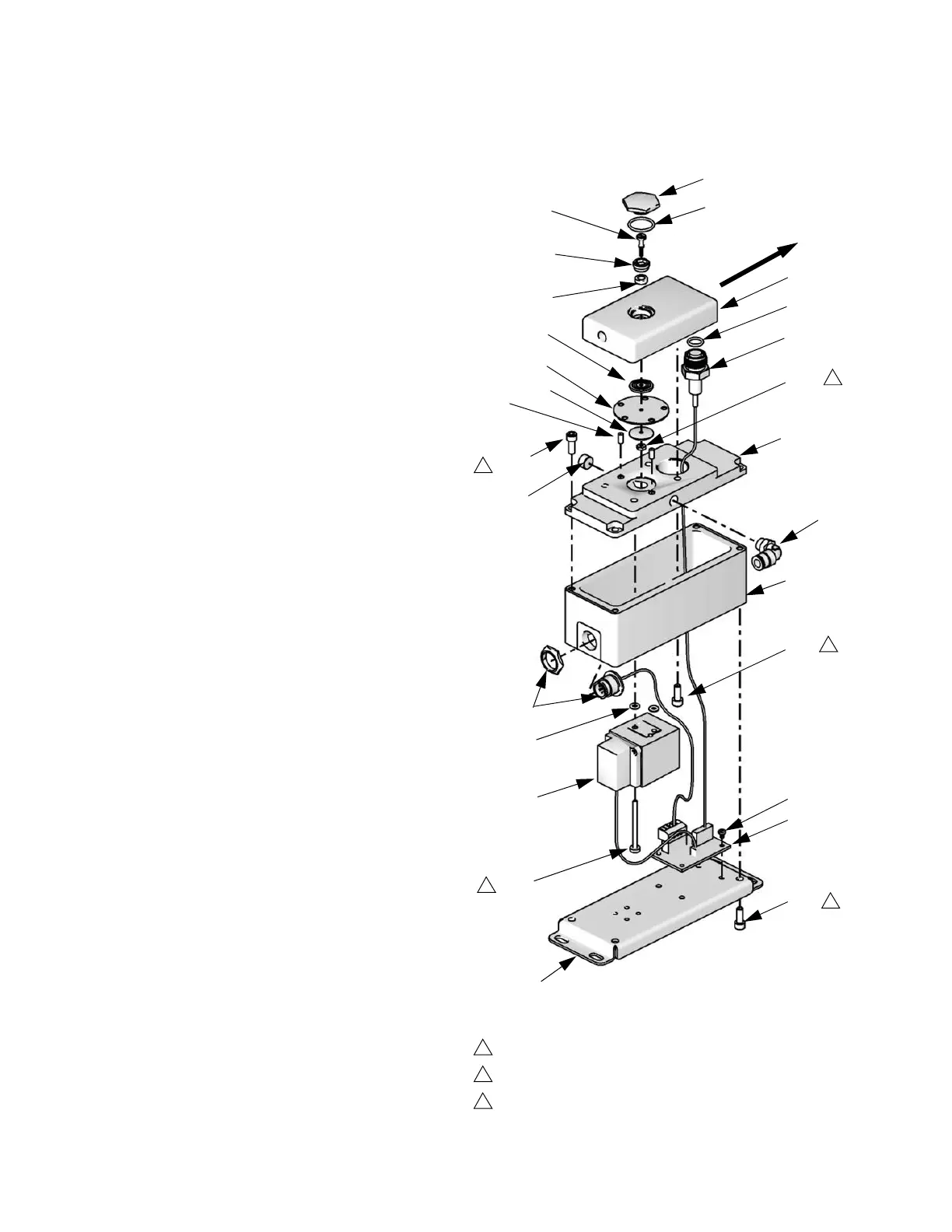

249849 Flow Control Regulator
* Parts included in Regulator Service Kit 15G843.
Purchase separately.
‡ Parts included in Sensor Service Kit 15G867.
Purchase separately.
Parts labeled n/a are not available separately.
Ref.
No. Part No. Description Qty
601* 102980 NUT, full, hex; 4-40 1
602‡* n/a O-RING; chemically resistant
fluoroelastomer
1
603 112698 ELBOW; 1/8 npt(m) x 1/4 in.
(6 mm) OD tube
1
604* n/a O-RING; chemically resistant
fluoroelastomer
1
605 n/a SCREW, cap, socket-hd;
10-32 x 1/2 in. (13 mm)
12
606 n/a PLATE, fluid, regulator 1
607 15F799 PLATE, air, regulator 1
609* n/a SEAT, regulator 1
610* n/a RETAINER, seat 1
611 n/a HOUSING, flow control 1
612* n/a SPACER, regulator 1
613* n/a NEEDLE, regulator 1
614 n/a BRACKET, flow control 1
615 15F806 PLUG, regulator 1
616* 168881 GASKET; acetal 1
617* 178321 DIAPHRAGM, regulator 1
618 249179 BOARD, circuit assembly 1
619 120013 VALVE, proportional, V/P;
includes items 619a and 619b
1
619a n/a • SCREW, cap, socket-hd;
M3 x 0.5 x 44 mm
2
619b 106560 • O-RING, mounting, 007 2
620‡* n/a SENSOR, pressure control 1
621 107295 SCREW, machine, pan-hd;
4-40 x 3/16 in. (5 mm)
4
622 104765 PLUG, pipe; 1/8 ptf 1
623* 192387 PIN, dowel 2
624 15G613 WIRE HARNESS, flow control 1
604*
606
620*‡
607
603
605
619
618
621
605
614
601*
624
622
605
*623
*613
*610
*609
*612
*617
*616
611
615
TI12506a
602*‡
619a
619b
Flow
direction
1
2
2
3
2
Torque to 8-10 in-lbs (0.9-1.1 N•m)
Torque to 30-40 in-lbs (3.4-4.5 N•m)
Torque to 5-7 in-lbs (0.6 -0.8 N•m)
1
2
3
