Graco Reactor 2 H-XP3 Repair Manual

Repair
Replace Replace
Replace
HCM HCM
HCM
1.FollowBeforeBeginningRepair,page51.
2.Opentheelectricalenclosureanddisconnectall
cablesfromtheHCM(603).
3.Removethenuts(610)andHCM(603).
4.Setrotaryswitch.

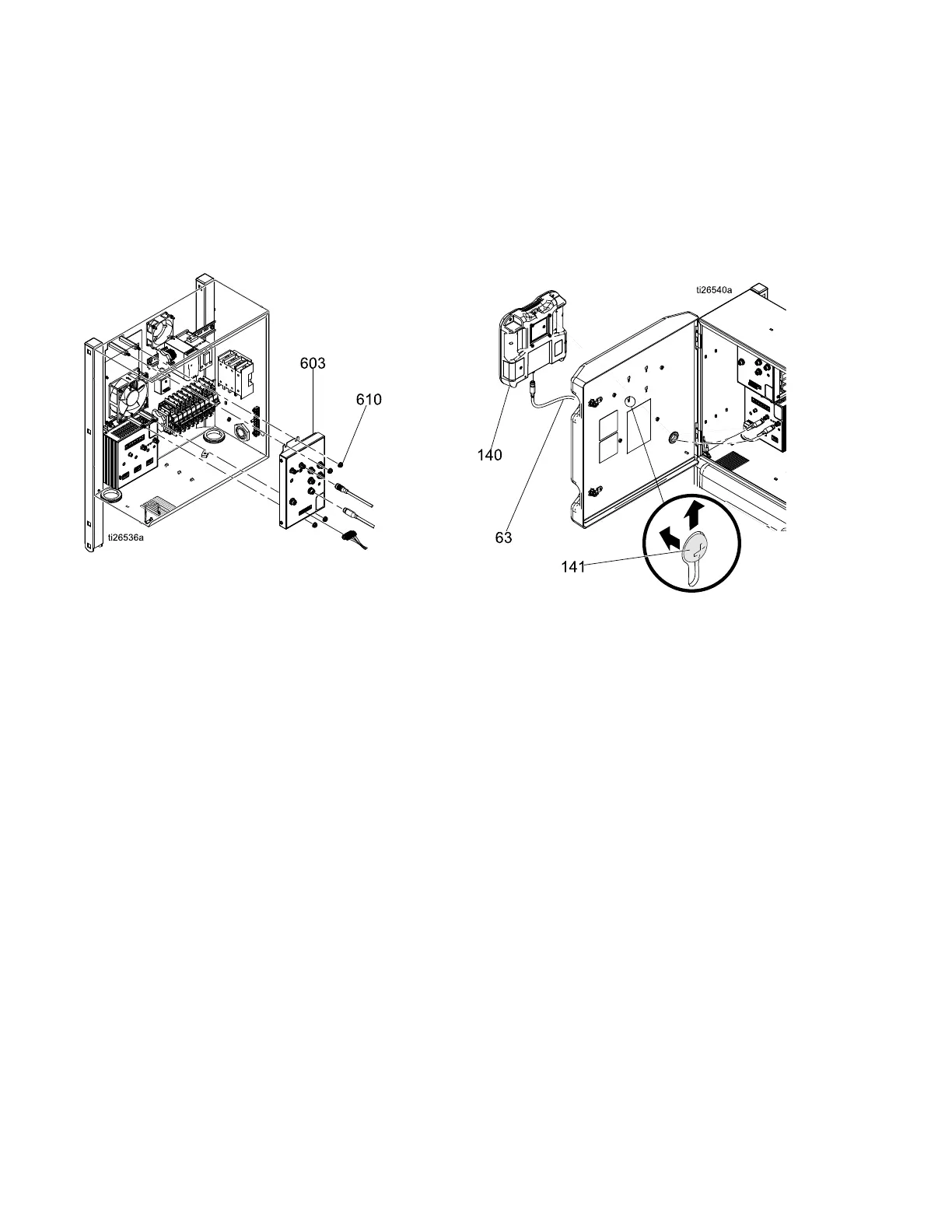

Figure13ReplaceHCM
HCM HCM
HCM
Rotary Rotary
Rotary
Switch Switch
Switch
Positions Positions
Positions
0=Reactor2,H-30
1=Reactor2,H-40
2=Reactor2,H-50
3=Reactor2,H-XP2
4=Reactor2,H-XP3
Replace Replace
Replace
ADM ADM
ADM
1.Loosenfourscrews(70)oninsideofelectrical
enclosuredoor(61).Liftupandpulloutto
removeADM(88).
2.DisconnectCANcable(475).
3.InspectADM(88)fordamage.Replaceif
necessary.
Figure14
66 334946C
