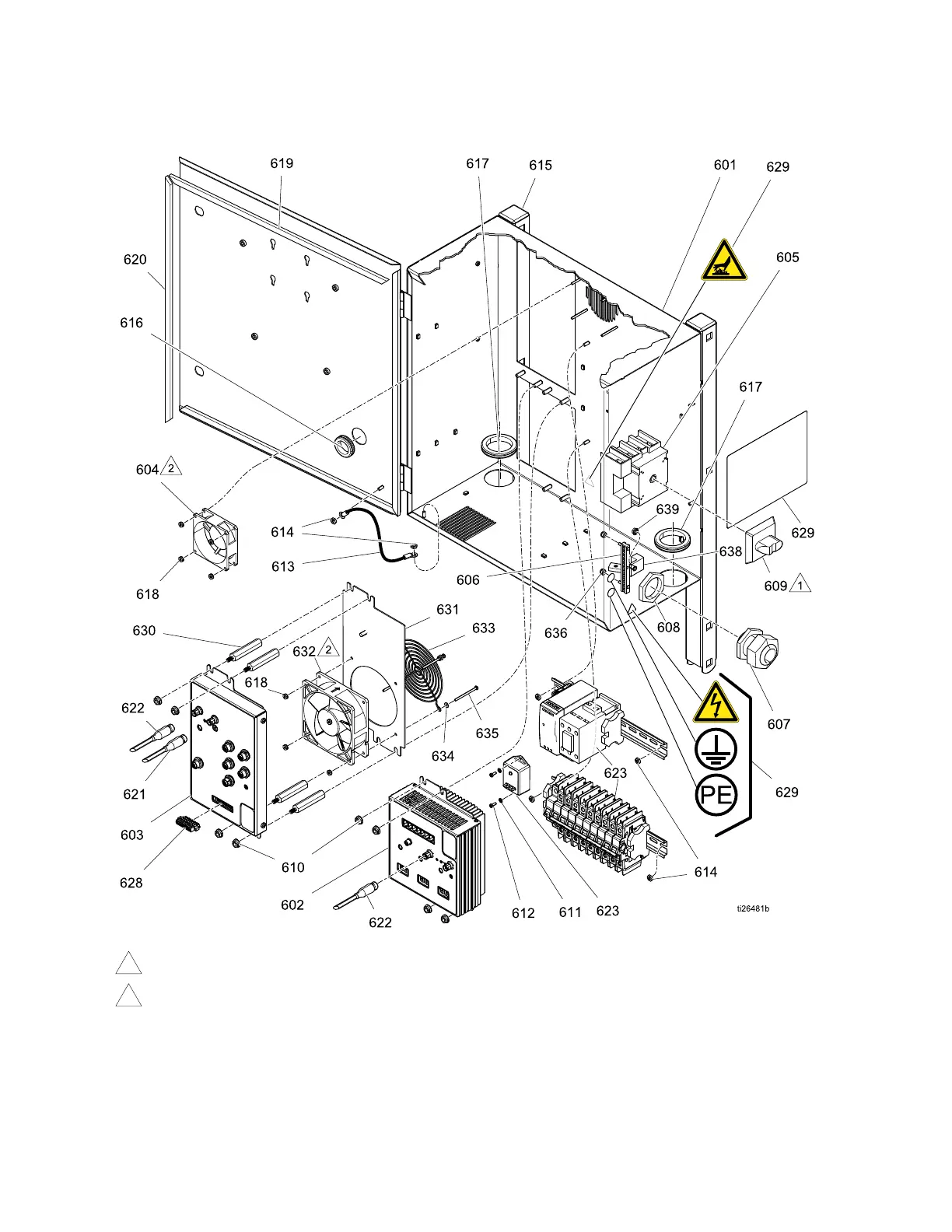

Parts
Electrical Electrical
Electrical
Enclosure Enclosure
Enclosure
W
WLL EE
3
3
(
(
1
Installdisconnectswitch(609)sothatupis
ONandleftisOFF.
2
Mountfans(604,632)witharrowspointing
towardsthepanel.
334946C 87
