Graco Reactor 2 H-XP3

Parts
Hydraulic Hydraulic
Hydraulic
Cylinder Cylinder
Cylinder
Parts, Parts,
Parts,

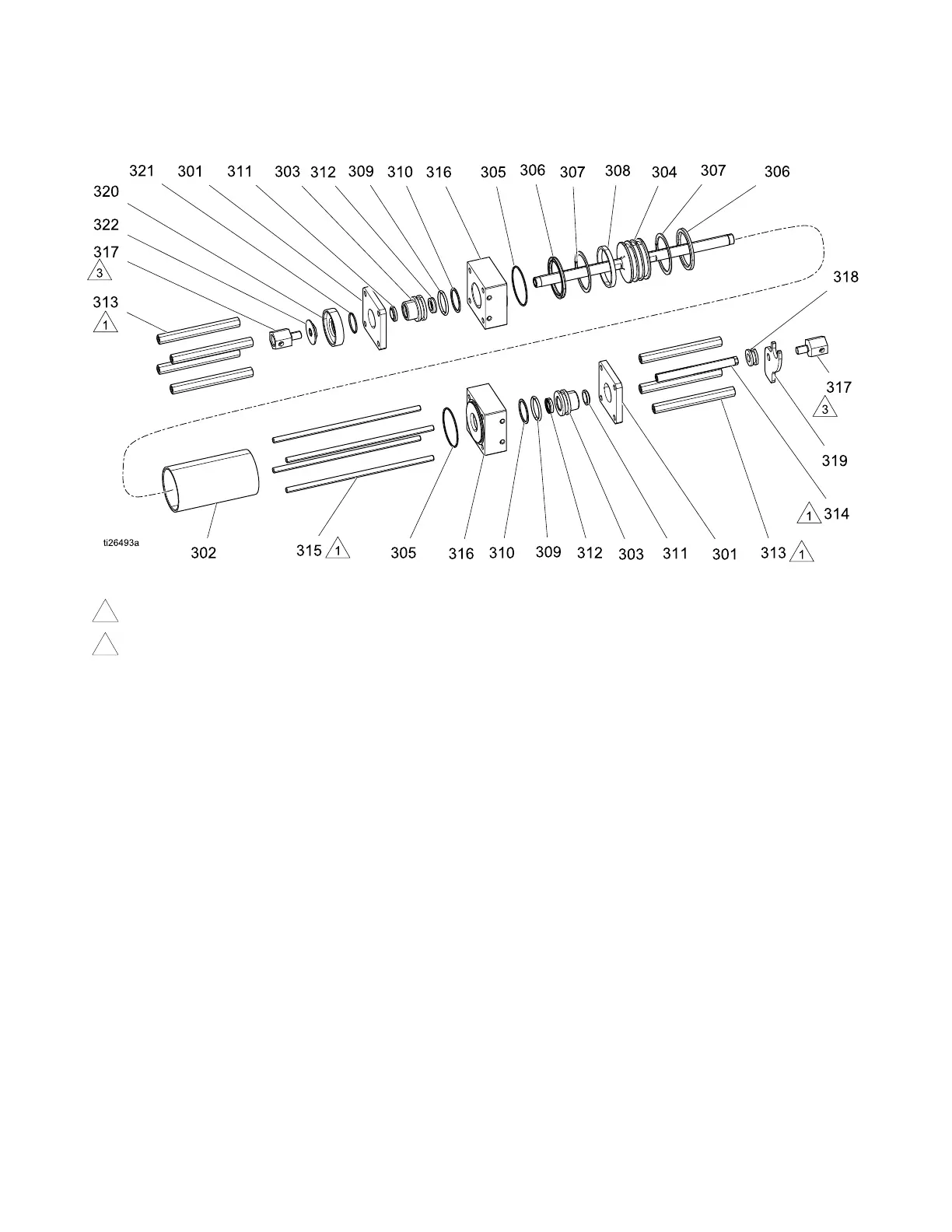

17G499 17G499
17G499
1
Torquespacers(313,314)androd(315)to200
in-lbs(22.5N•m).
3
Torqueto40+/-5ft-lbs(345+/-54N•m)
4.
Applygreasetoallsoftpartsbeforeassembly.
Ref. Ref.
Ref.
Part Part
Part
Description Description
Description
Qty Qty
Qty
301295029PLATE,retainer2
302295030
CYLINDER
1
303*
295031
BUSHING,rod
2
304296642
PISTON,cylinder,
hydraulic
1
305*
295640
O-RING
2
306*
295641
SEAL,u-cup
2
307*
295642
RING,back-up
2
308*
296643
RING,wear
1
309*
158776
PACKING,o-ring
2
310*
295644
RING,back-up
2
311*
295645WIPER,rod2
312*
296646
SEAL,shaft
2
Ref. Ref.
Ref.
Part Part
Part
Description Description
Description
Qty Qty
Qty
313295032
SPACER,proportioner
7
314261502
SPACER,reversing
switch
1
315295034
ROD,tie
4
316295035
BLOCK,port
2
317261864
CLEVIS,hex
2
318
17G527BUSHING,clocking
1
319
17G529
PLATE,clocking,driver1
320
---
ADAPTER,lube,cylinder
(includedinkit261863)
1
321177156
PACKING,o-ring
1
322295852
NUT,jam,baf󰘱e
1
* Parts are also included in Hydraulic Cylinder Repair Kit 296785. Purchase separately.
82 334946C
