Graco Reactor 3 Repair And Parts

Repair
42 3A8501A

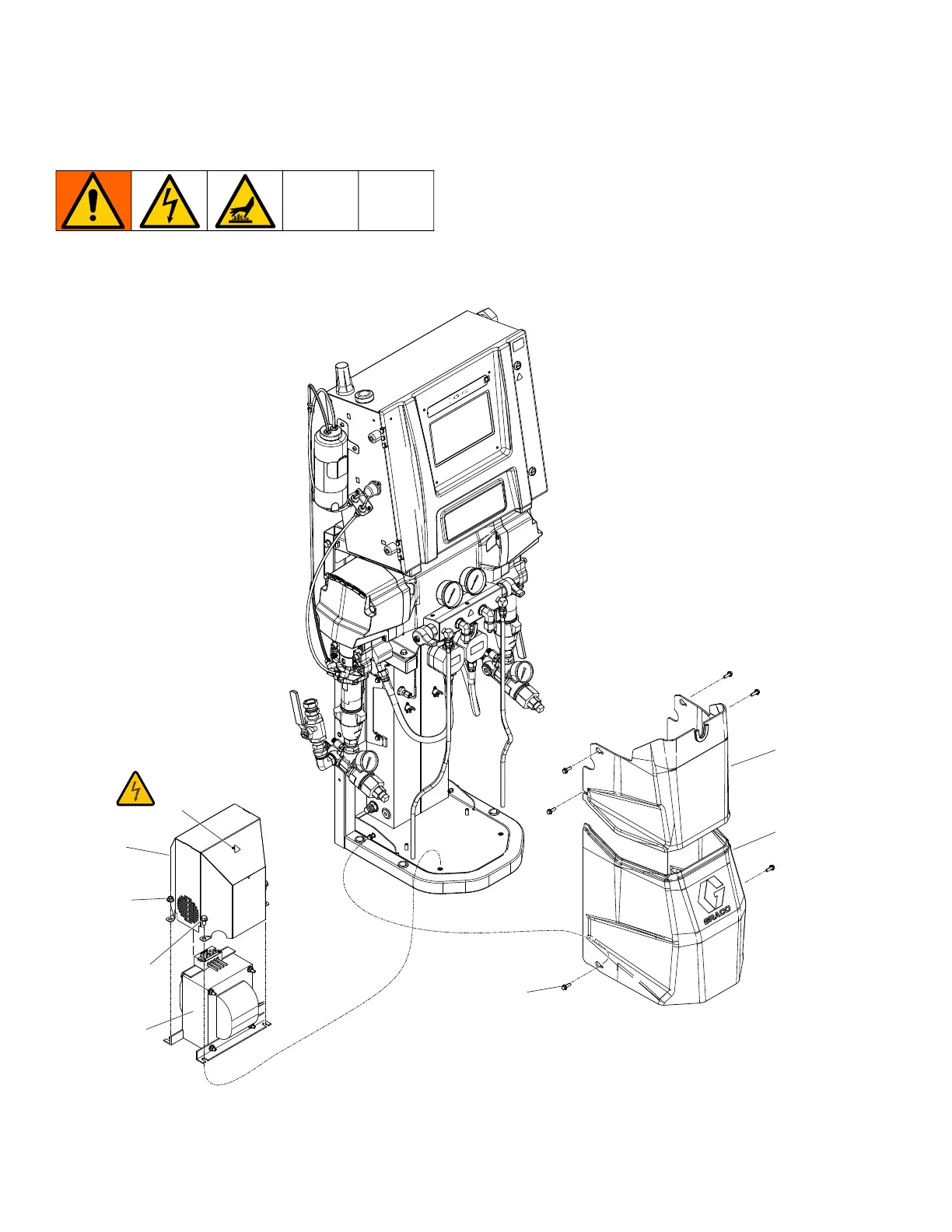

Replace Transformer
1. Follow Shutdown on page 20.
2. Remove bolts (24) and covers (57, 58).
3. Remove transformer cover (9).
4. Disconnect transformer connections from terminal
blocks. Connections are labeled: 1, 2, 3, and 4.
5. Remove transformer (8).
6. Install transformer (8) in reverse order.
ti40201a
58
57
76
22
38
9
24
8
