Graco Reactor 3 Repair And Parts

Component Identification
16 3A8501A

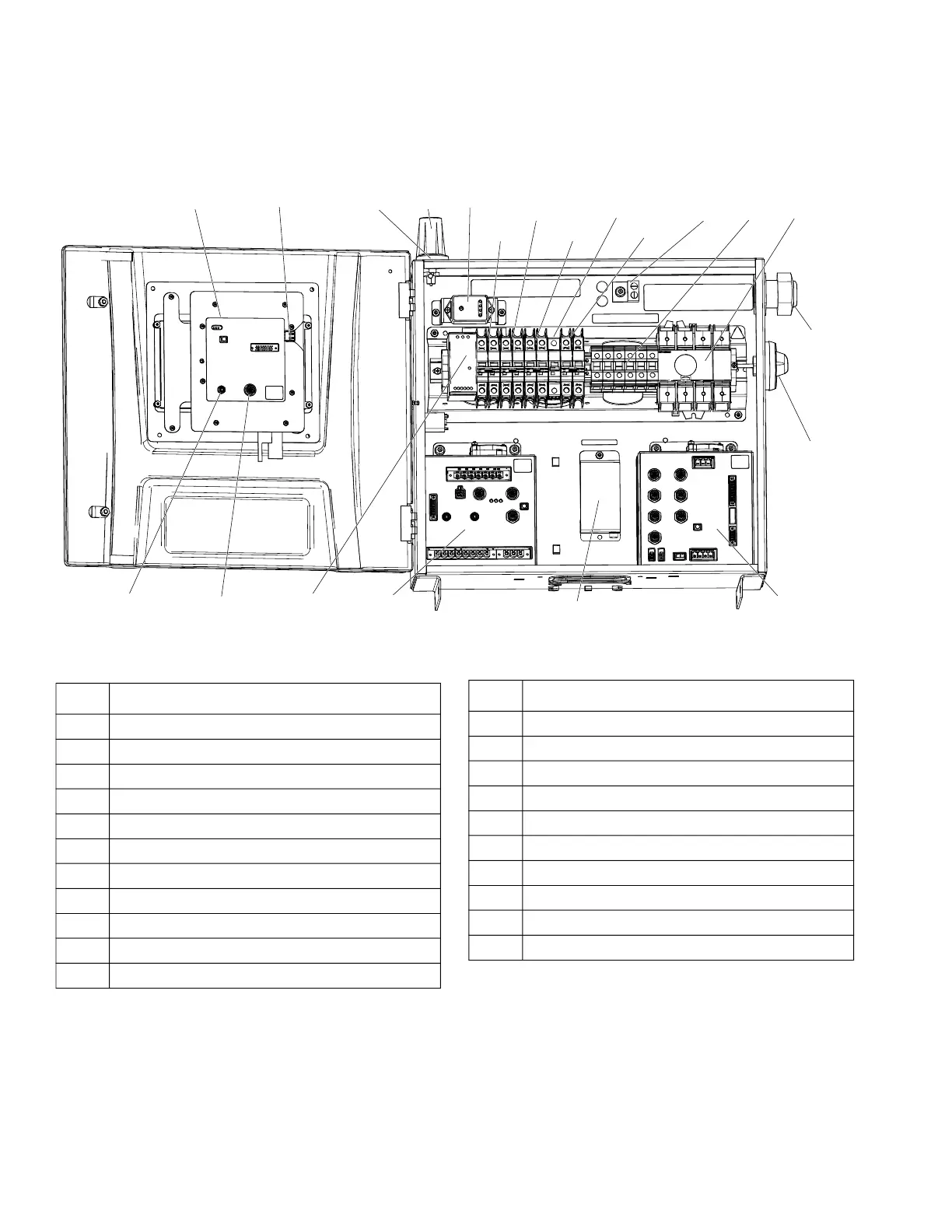

Electrical Enclosure
Key
† Not included on all modules.
WLE
$$0
$&/
$&0
$&&
$$$
$$1
$$%
03
(&
06
(*
$$'
$$)
$$3
$$5
$$(
AAK
AAG
AAL
AAHAAJ
Ref. Description
AAA Temperature Control Module (TCM)
AAB Motor Control Module (MCM)
AAD Wiring Terminal Blocks
AAE 24V Power Supply
AAF Surge Protector
AAG Transformer Breaker
AAH Motor Breaker
AAJ A-Side Heat Breaker
AAK B-Side Heat Breaker
AAL Hose Breaker
AAM Advance Display Module (ADM)
AAN† Reactor Connect App Module
AAP† Cellular Antenna
AAR† GPS Antenna
ACC Reactor Connect Module Cable Connection
ACL ADM USB Port
ACM ADM CAN Cable Connection
EC Electrical Cord Strain Relief
EG Incoming Power Ground Terminal
MP Main Power Disconnect Knob
MS Main Power Disconnect Switch
