Graco Reactor 3 Repair And Parts

Repair
26 3A8501A
Install Pump
NOTE: Steps 1–5 apply to pump B. To reconnect pump
A, proceed to step 6.
1. Ensure locknut (G) is threaded onto the pump with
the flat side up. Screw the pump into bearing
housing (M) until the pin holes align. Push pin (F) in.
Push the retaining wire clip (E) above the pin.
2. Continue threading the pump into the housing until
fluid outlet (D) is aligned with the steel tube and top
threads are +/- 1/16 in. (2 mm) of bearing face (N).
3. Tighten locknut (G) by hitting it firmly with a
non-sparking hammer.
4. Reconnect fluid inlet (C) and outlet (D).
5. Proceed to step 13.
NOTE: Steps 6–12 apply to pump A only.
6. Ensure locknut (G) is threaded onto the pump with
the flat side up. Carefully twist and extend
displacement rod 2 in. (51 mm) above wet-cup.
7. Start threading the pump into the bearing housing
(M). When pin holes align, insert the pin. Pull the
retaining wire clip down.
8. Continue threading the pump into bearing housing
(M) until the top threads are +/- 1/16 in. (2 mm) of
bearing face (N). Ensure the barbed fittings at
wet-cup flush ports are accessible.
9. Connect the A-side outlet hose loosely at the pump
and heater. Line up the hose, then tighten fittings
securely.
10. Tighten the locknut (G) by hitting it firmly with a
non-sparking hammer.
11. Apply a thin film of TSL fluid to barbed fittings.
Using two hands, support hoses (T) while pushing
straight onto barbed fittings. Secure each hose with
a wire tie between two barbs.
NOTE: Do not let hoses kink or buckle.
12. Reconnect fluid inlet (C).
13. Purge the air and prime the system. See your
Reactor operation manual.

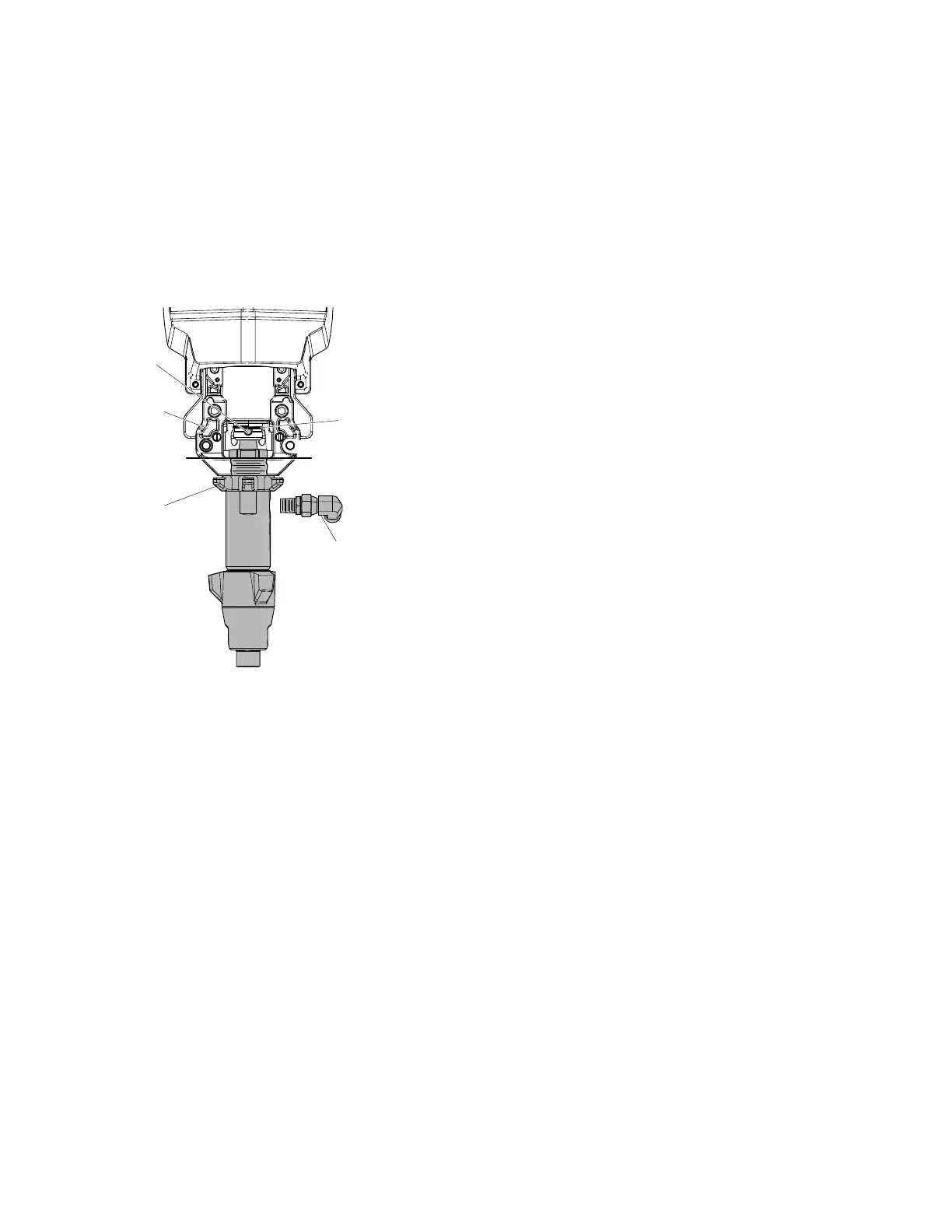

ti41060a
F
E
M
N +/- 1/16 in.
N +/- 1/16 in.
G
D
