Graco Reactor 3 Repair And Parts

Parts
3A8501A 57
Heaters

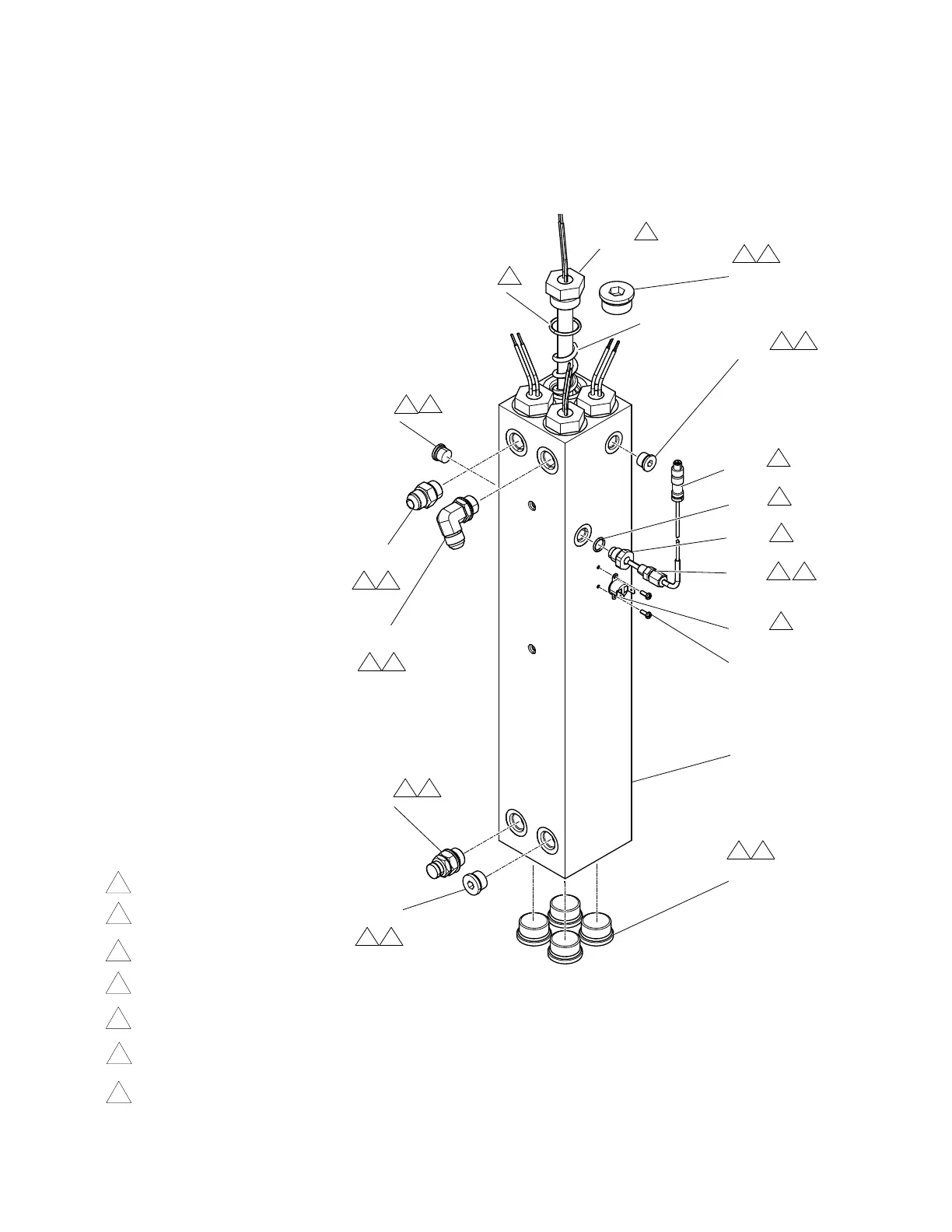

18E141, 18E142, 18E145, and 18E146 Parts
ti39924a
202
209
211
210
202
201
216
208
209
214
215
213
212
206
207
2
4
2
4
2
4
3
4
3
4
3
4
1
4
1
4
7
4
6
5
204
4
205
203
1
7
7
Torque to 120 ft-lb (162.3 N•m).
Torque to 23 ft-lb (31.2 N•m).
Torque to 40 ft-lb (54.2 N•m).
Apply lubricant to o-rings before assembling.
Apply thermal paste to base of switch.
Apply sealant and tape to all non-swiveling and non-drying threads.
Assemble compression fitting into adapter and tighten to 17 ft-lb (23 N•m). Insert sensor into compression
fitting, then tighten compression nut to 21 +/- 2 ft-lb (28 +/- 2.7 N•m). While holding the sensor against the
heater rod. Hold the npt portion of the compression fitting while tightening to prevent rotation of the fitting body.
