Graco Reactor 3 Repair And Parts

Repair
40 3A8501A
Repair Fluid Temperature
Sensor (FTS)
Installation

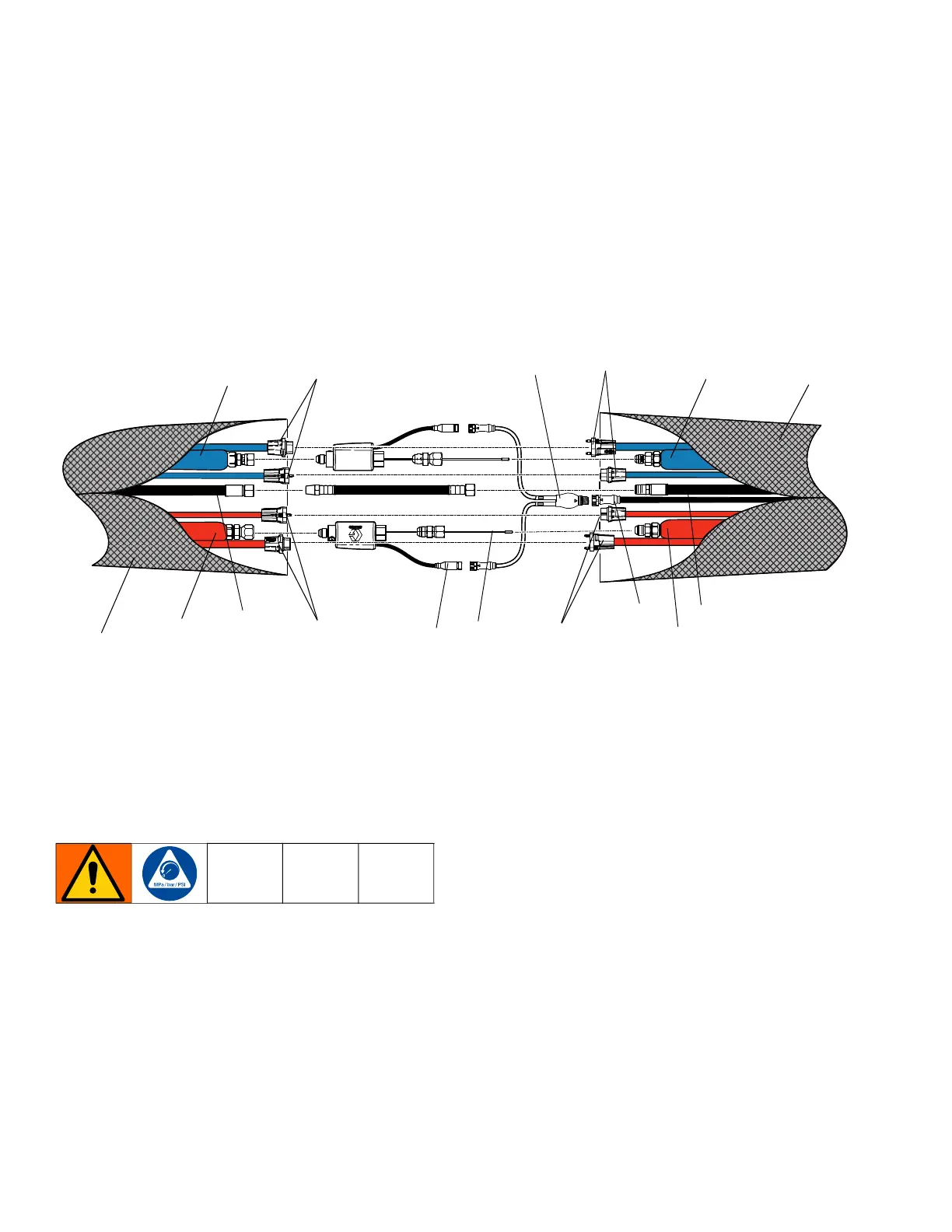

The fluid temperature sensor (FTS) is an optional
accessory. Install the FTS between two sections of
hose. See your heated hose manual for details.
Test / Removal
1. Relieve pressure. Follow the Pressure Relief
Procedure on page 19.
2. Follow Shutdown on page 20.
3. Remove tape and protective covering from the FTS.
Disconnect hose cable (F).
4. If the FTS is not reading properly at the end of the
hose, see Check Hose RTD Cables and FTS on
page 38.
5. If the FTS fails, replace the FTS or run it in
resistance mode:
a. Disconnect air hoses (C, L) and electrical
connection (D).
b. Disconnect A-side FTS fluid fittings from whip
hose (W) and main hose (M).
c. Remove FTS probe (H) from the hose.
d. Repeat for B-side (RES).
WLD
A
W
A
F
H
D
E
D
L
C
M
B
D
G
D
B
