Repair
34 3A8501A
Replace Flow Meter
NOTE: For Elite models only.
1. Follow the Pressure Relief Procedure on page 19.
2. Follow Shutdown on page 20.
3. Remove cover (57, 58).
4. Disconnect the flow meter cable.
5. Use two wrenches to disconnect hoses (40), then
remove the flow meter (19) from manifold (17).
6. Install the new flow meter and reconnect the hose.
7. Reconnect the flow meter cable.
8. Enter the k-factor on the Pressure/Flow Setup
screen in the ADM. Refer to Setup Screen in your
Reactor 3 operation manual.
NOTE: The K-factor is printed on the flow meter
label.

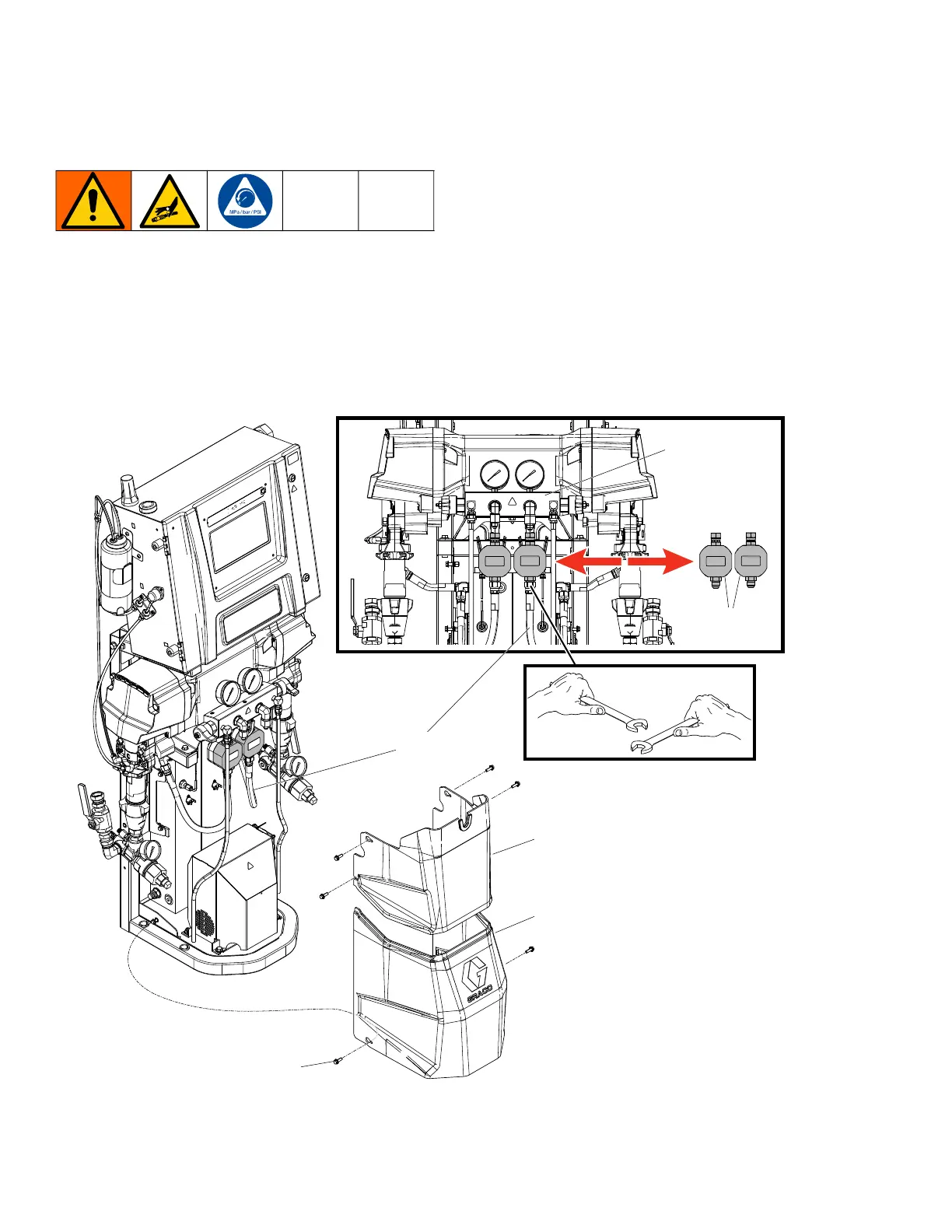

ti40199a
