Graco Reactor 3 - Page 33

Repair
3A8501A 33
Replace Transformer Fan
1. Follow Shutdown on page 20.
2. Remove bolts (24) and covers (57, 58).
3. Disconnect the transformer fan cable and remove
the wire tie.
4. Remove four screws (39), finger guard (36), and the
fan (10).
5. Install the new fan in reverse order, then secure the
fan and replace the covers.

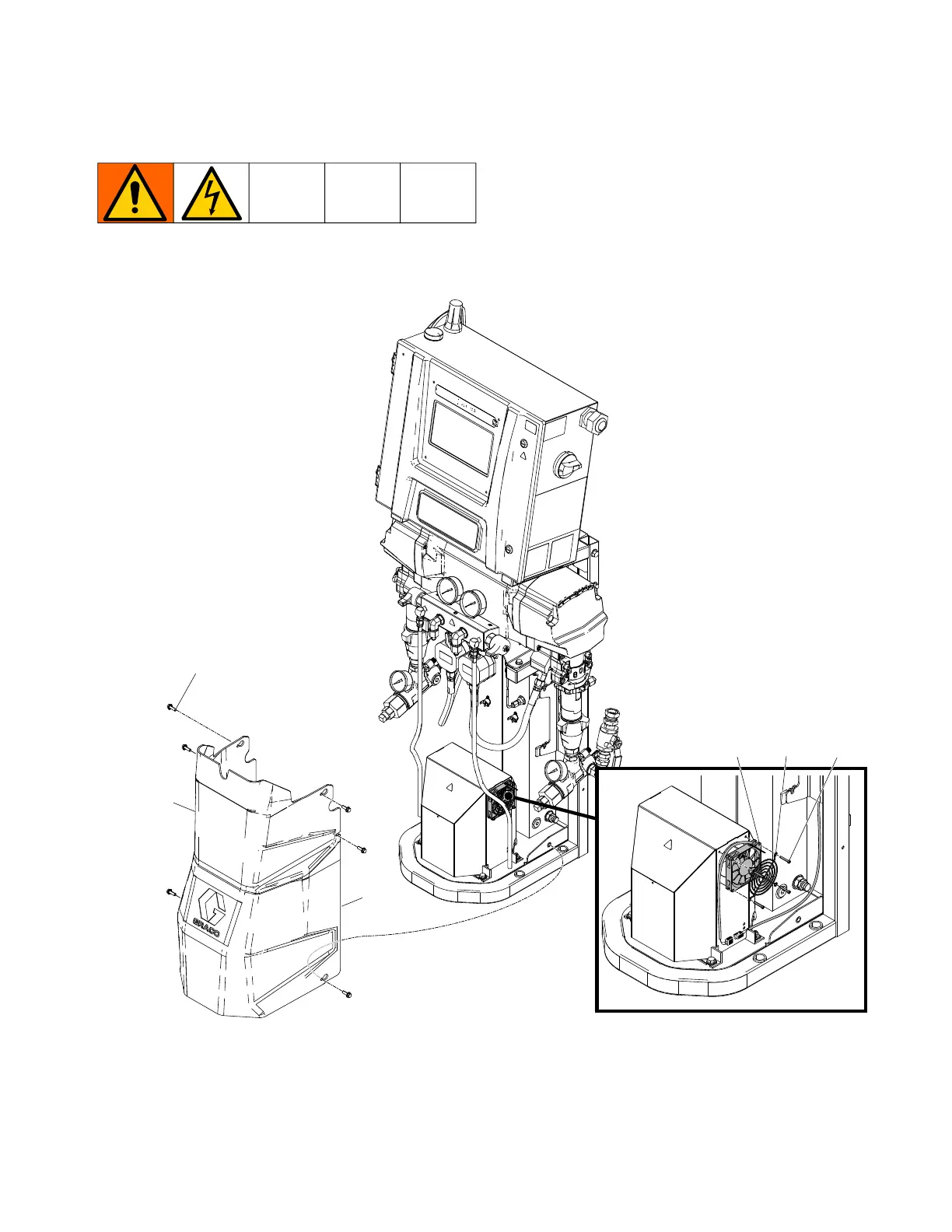

ti40191b
24
57
58
39
36
10
