Graco Reactor 3 Repair And Parts

Repair
3A8501A 39

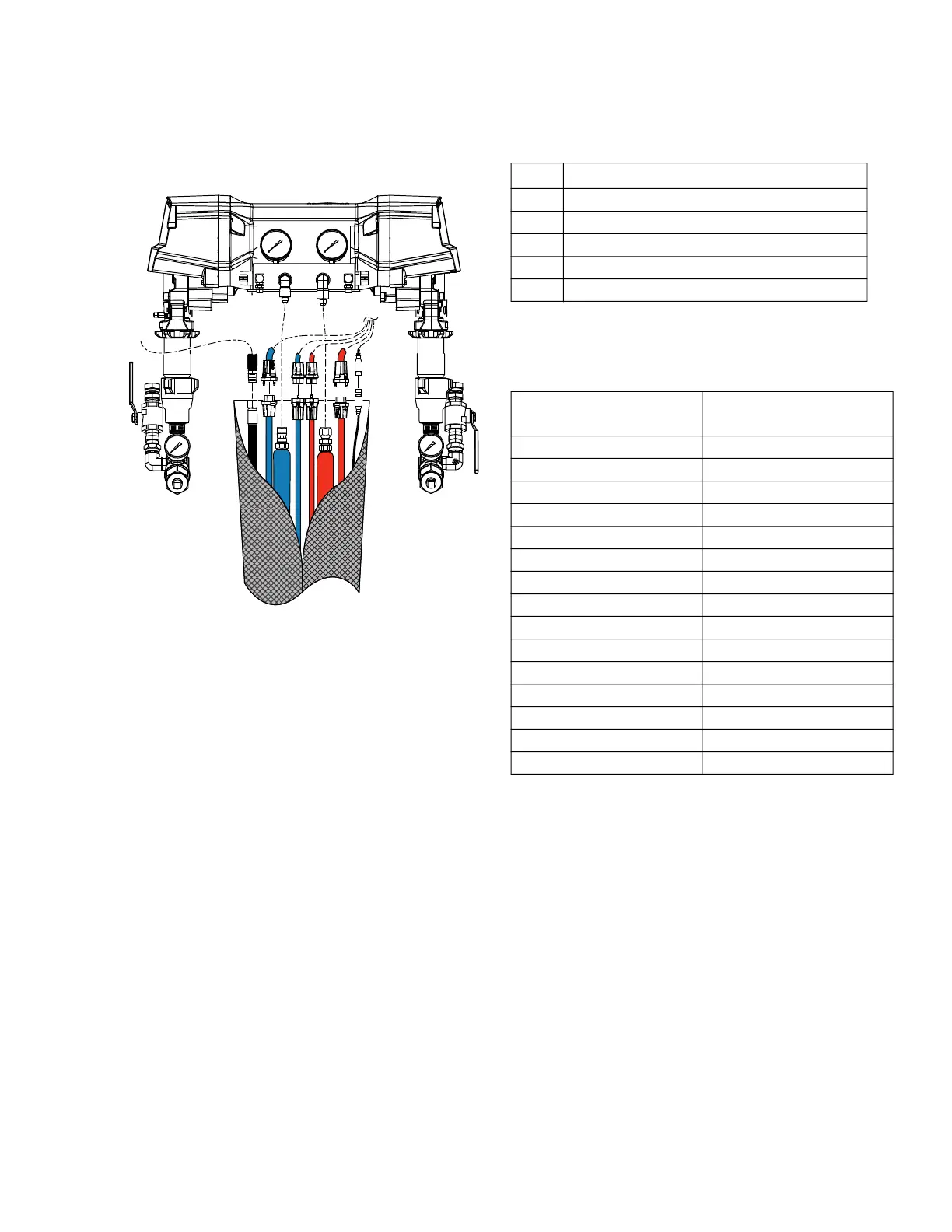

6. If the FTS reads properly at the Reactor but not at
the end of the hose, check cable connections.
Verify that connections are tight.
NOTE: To assist in taking readings, order RTD Test
Kit 18E258. The kit includes two cables: one cable
with a compatible female connector and another
cable with a male connector. Both cables have
stripped wire at the other end for easy test probe
access. See the RTD Test Kit Wire Reference table.
RTD Test Kit Wire Reference
RTD Resistance vs. Temperature
WLE
Pins Wire Color
1 Brown
2 Bare
3 Blue
4 Black
5 White
RTD or FTS
Resistance Ohms
RTD or FTS
Temperature °C (°F)
843 -40 (-40)
882 -30 (-22)
922 -20 (-4)
961 -10 (14)
1000 0 (32)
1039 10 (50)
1078 20 (68)
1117 30 (86)
1155 40 (104)
1194 50 (122)
1232 60 (140)
1271 70 (158)
1309 80 (176)
1347 90 (194)
1385 100 (212)
