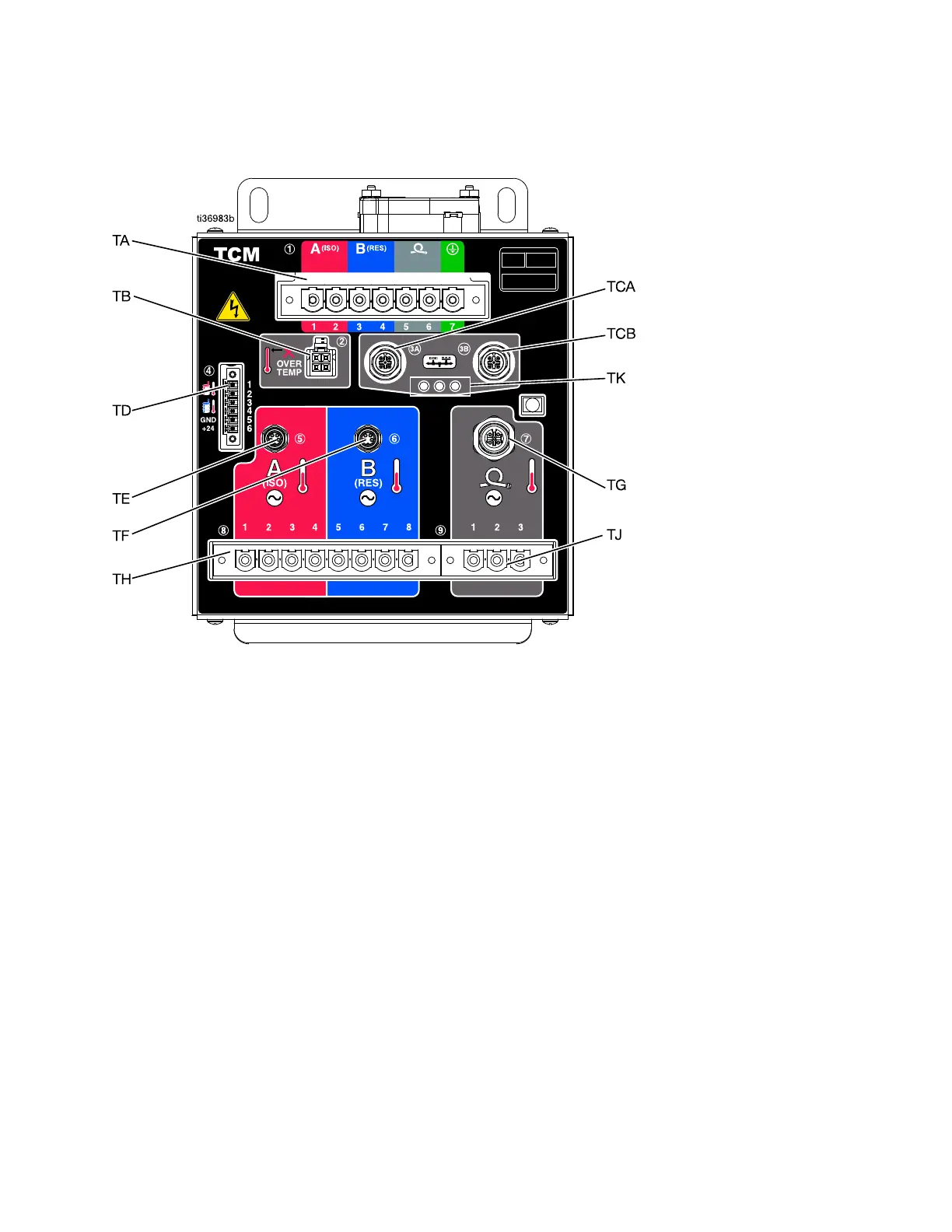

ComponentIdentication
Temperature Temperature
Temperature
Control Control
Control
Module Module
Module
(TCM) (TCM)
(TCM)
ti36 983b
TA
TB
TD
TE
TF
TH
TG
TJ
TCB
TCA
TK
Ref. Ref.
Ref.
Description Description
Description
TA
MainPowerInput
TB
HeaterOvertemperatureInputs
TCA
TCB
CANCommunicationsConnections
TD
A/BInletTemperaturesand24VDCPowerSupplyInput
TE
AHeaterTemperatureInput
TF
BHeaterTemperatureInput
TG
A/BHoseTemperatureInputs
TH
A/BHeaterPowerOutputs
TJ
A/BHosePowerOutputs
TK
TCMLEDStatusLights
3A8500A 19
