Graco Reactor 3 User Manual

Setup
Connect Connect
Connect
Power Power
Power
Allelectricalwiringmustbedonebya
qualiedelectricianandcomplywithalllocal
codesandregulations.
1.Turnthemainpowerswitch(MP)OFF.
2.Opentheelectricalenclosuredoor.
NOTE: NOTE:
NOTE:
Theterminaljumpersarelocated
insidetheelectricalenclosuredoor.

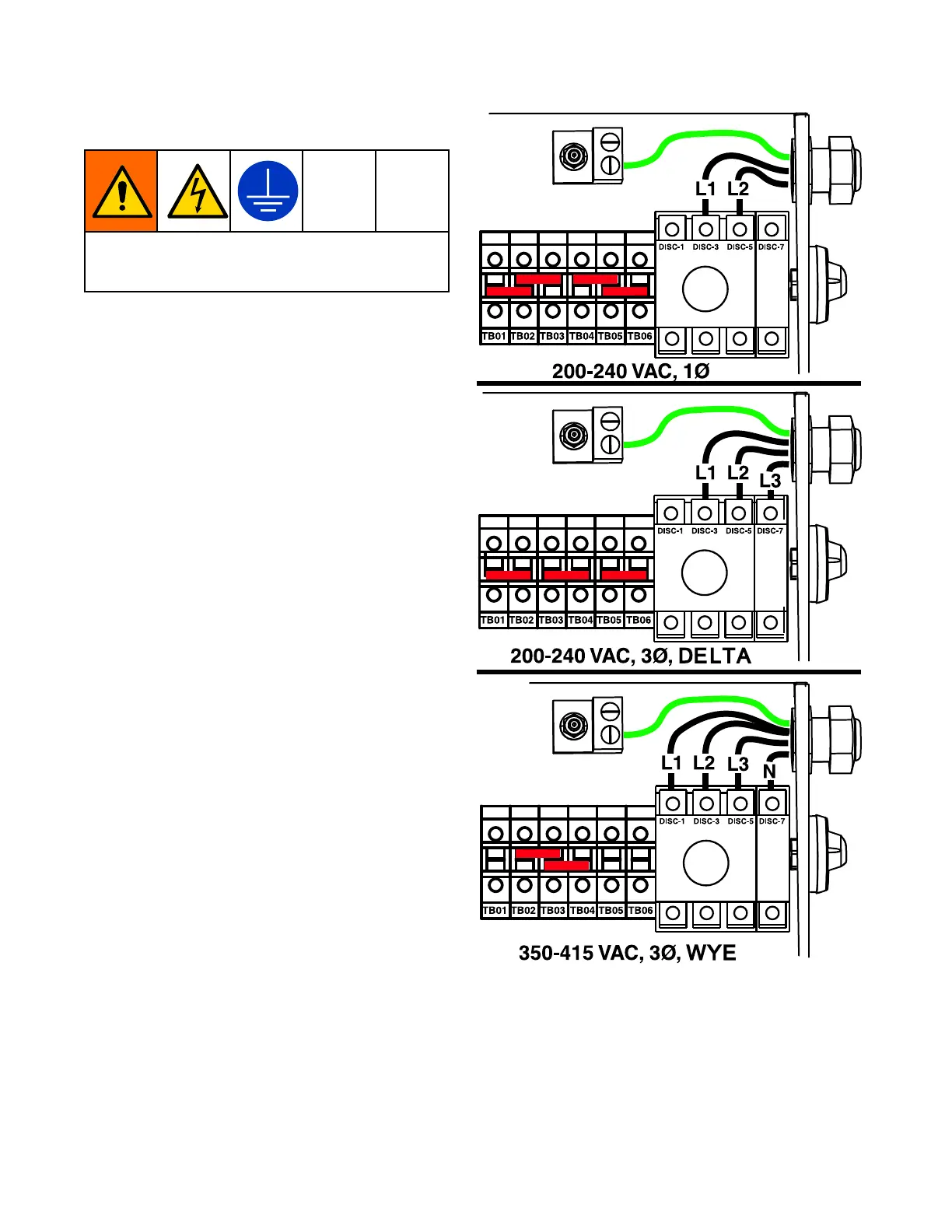

3.Installthesuppliedterminaljumpersinthe
positionsshownintheimageforthepower
sourceused.
NOTE: NOTE:
NOTE:
Ensuretheterminaljumpersarefully
insertedandlayush.
4.Routethepowercablethroughthestrain
relief(EC)inelectricalenclosure.
5.Connecttheincomingpowerwiresand
groundwireasshownintheimage.Gently
pullonallconnectionstoverifytheyare
properlysecured.
6.Verifythatallitemsareconnectedproperly
asshownintheimagethenclosethe
electricalenclosuredoor.
ti39334a
24
3A8500A
