Repair
46 332144E

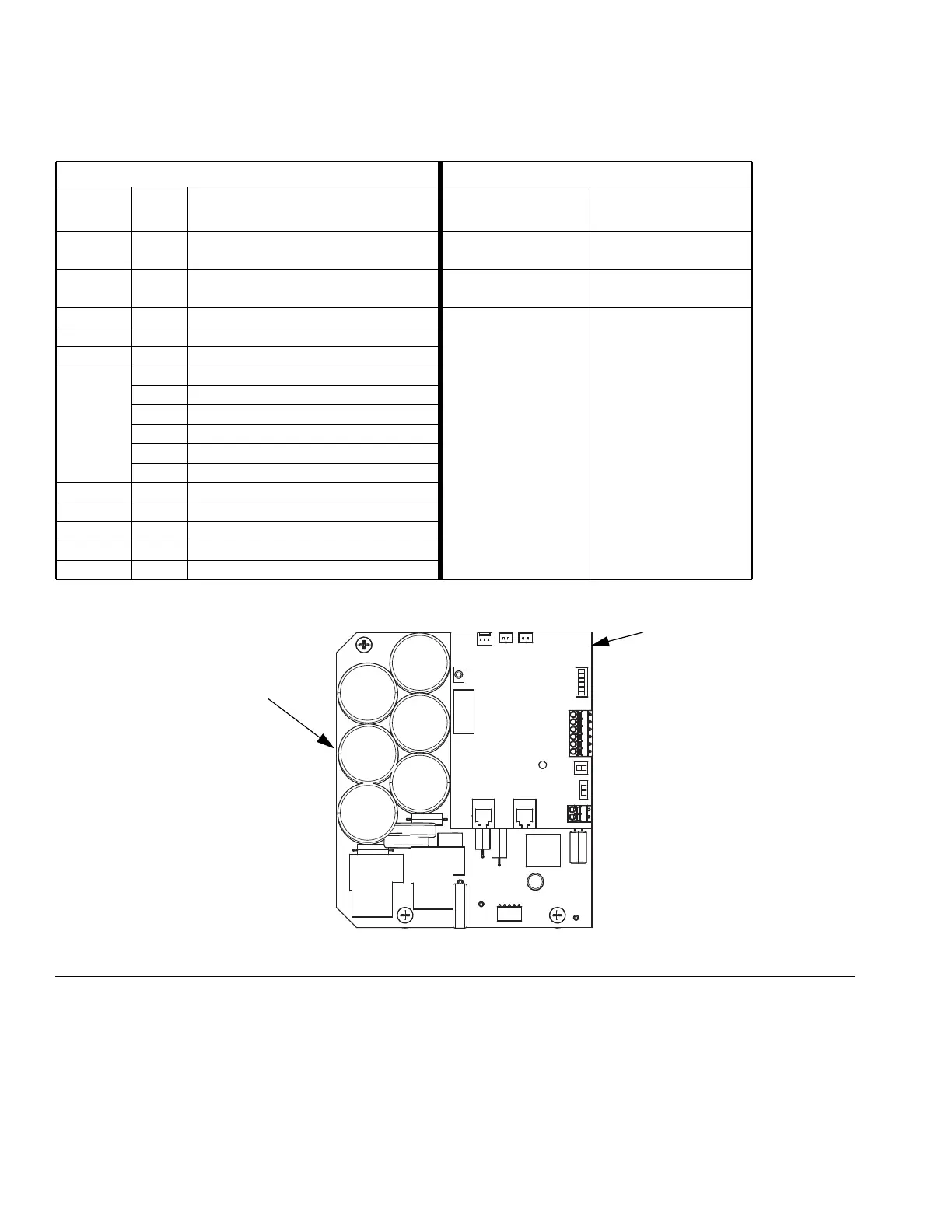

Table 8: Control Board Connectors (see FIG. 12)
Top Board Connectors Bottom Board Connectors
Board
Jack Pin Description Connector Description
J1 n/a Not Used Female Quick
Connect Terminals
Power
J2 n/a Not Used Plug Housing with
Male Blades
Motor Power
J3 n/a Error LED
J4 n/a Tank Level LED
J5 n/a Function Knob
J6 1 Brown - ISO Sensor V+
2 Blue - ISO Sensor V-
3 Black - ISO Sensor Signal
4 Brown - RES Sensor V+
5 Blue - RES Sensor V-
6 Black - RES Sensor Signal
J8 n/a Boost Power Relay
J9 n/a Motor Overtemperature
J10 n/a Cycle Switch
J11 n/a ISO Pressure Transducer
J12 n/a RES Pressure Transducer
FIG. 12: Wiring Connections
J1
J6
J9
J8
J10
J11
J12
J5
J4
J3
J2
J98
Top
Bottom
