Graco Reactor E-10hp User Manual

Parts
68 332144E

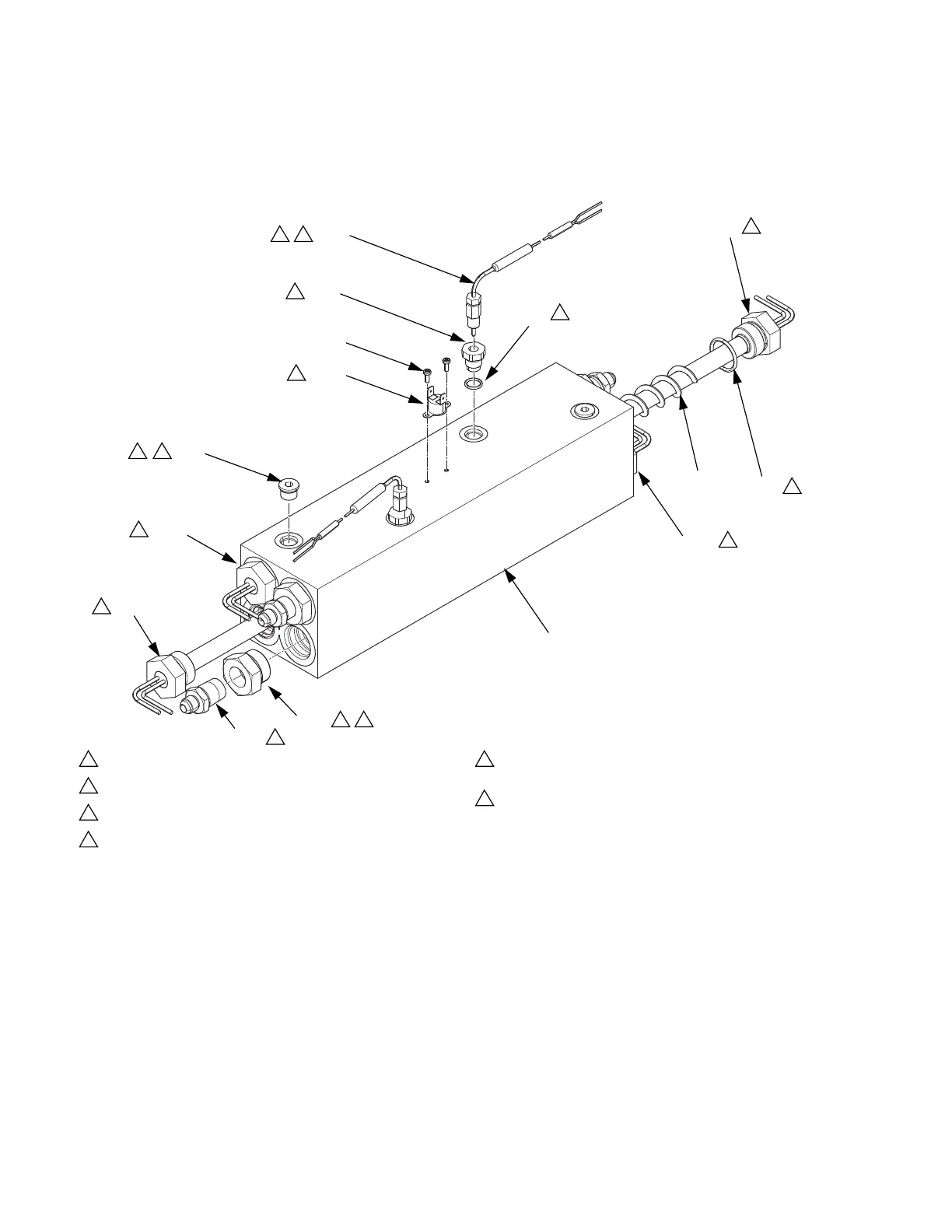

24U009, 100-120VAC Heater
24T955, 200-240VAC Heater
--- Not available for purchase.
Torque to 120 ft-lbs (163 N•m).
Torque to 23 ft-lbs (31 N•m).
Apply 110009 thermal heat sink compound.
Apply sealant and tape to all non-swiveling and threads
without o-r ings.
Apply lubricant to o-rings before assembling in heater
housing.
Tighten NPT fitting from sensor to heater housing as shown.
Remove tape from probe tip prior to inserting. Insert probe
until tip bottoms on heater element. Tip must touch heating
element. Insert ferrule and tighten ferrule nut to sensor probe.
Orient sensor as shown and torque 1/4 turn past tight.
1
2
3
4
5
6
311
3
308
304
2 5
305
306
5
310
2
64
309
312
5
307
1
316
1
301
302
1 5
303
4
316
1
307
1
ti21850a
Ref. Part Description Qty.
301 --- BLOCK, heater 1
302 15H302 FITTING, reducer 1-3/16 SAE x 1/2
npt
4
303 16V432 FITTING, adapter, #6 JIC x npt,
mxm
4
304 15H304 FITTING, plug, 9/16 SAE 2
305 15H306 ADATPER, thermocouple, 9/16 x
1/8
2
306 120336 O-RING, packing 2
307 24T958 HEATER, fire rod, 230 V, 24T955
only
2
24U012 HEATER, fire rod, 120 V, 24U009
only
2
308 15B137 SWITCH, overtemperature 1
309 16U940 MIXER, heater 4
310 117484 SENSOR, 2
311 --- SCREW, mach; #6-32 2
312 124132 O-RING 4
316 24T959 HEATER, fire rod, 230 V; 24T955
only
2
24U014 HEATER, fire rod, 120 V; 24U009
only
2
Ref. Part Description Qty.
