Graco Reactor E-10hp User Manual

Parts
332144E 69

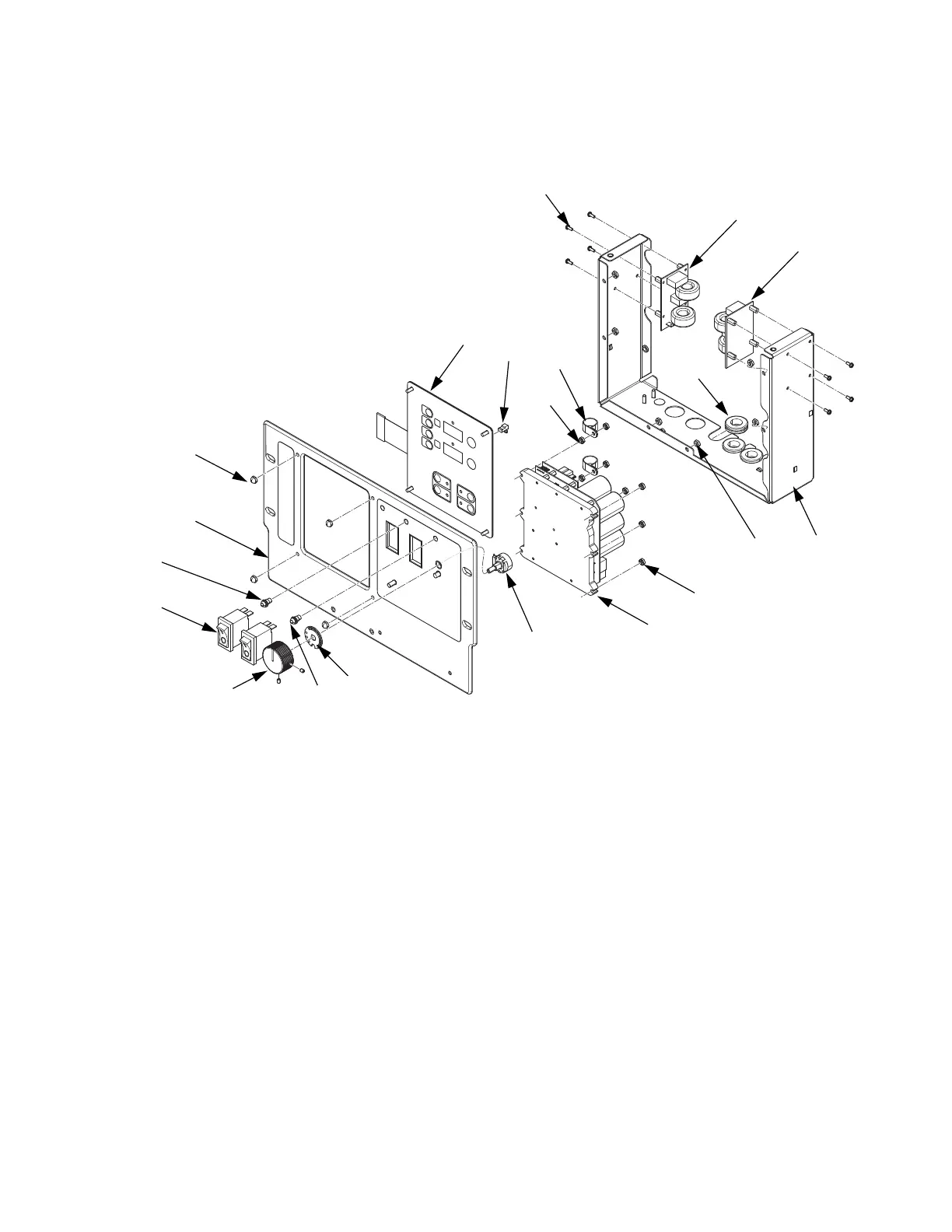

24T962, Display
--- Not available for purchase.
352
353
360
351
357
358
356
365
364
355
363
366
354
363
367
359
359
373
361
388
ti21841a
Ref. Part Description Qty.
351 24T963 PLATE, display, front
1
352 24T964 ENCLOSURE, control
1
353 24T966 DISPLAY, heat two zone
1
354 24T967 CONTROL, board, assy
1
355 24K983 SWITCH, rocker, w/breaker, 240v,
20a
2
356 24L001 KNOB, control, w/ball plunger
1
357 24L002 POTENTIOMETR, adjustment,
pressure
1
358 15G053 PLATE, detent, display
1
359 300005 FILTER, board
2
360 117523 NUT, cap (#10)
4
361 127157 SCREW, mach, captive, #8
8
363 127158 NUT, captive, #8
8
364 24T968 DIODE, light-emitting, red
1
365 24T971 DIODE, light-emitting, yellow
1
366 --- CLAMP, cable
2
367 113505 NUT, keps, hex hd
6
368 101765 GROMMET
3
373 127019 CONNECTOR, jumper, e-stop
1
