Parts
70 332144E

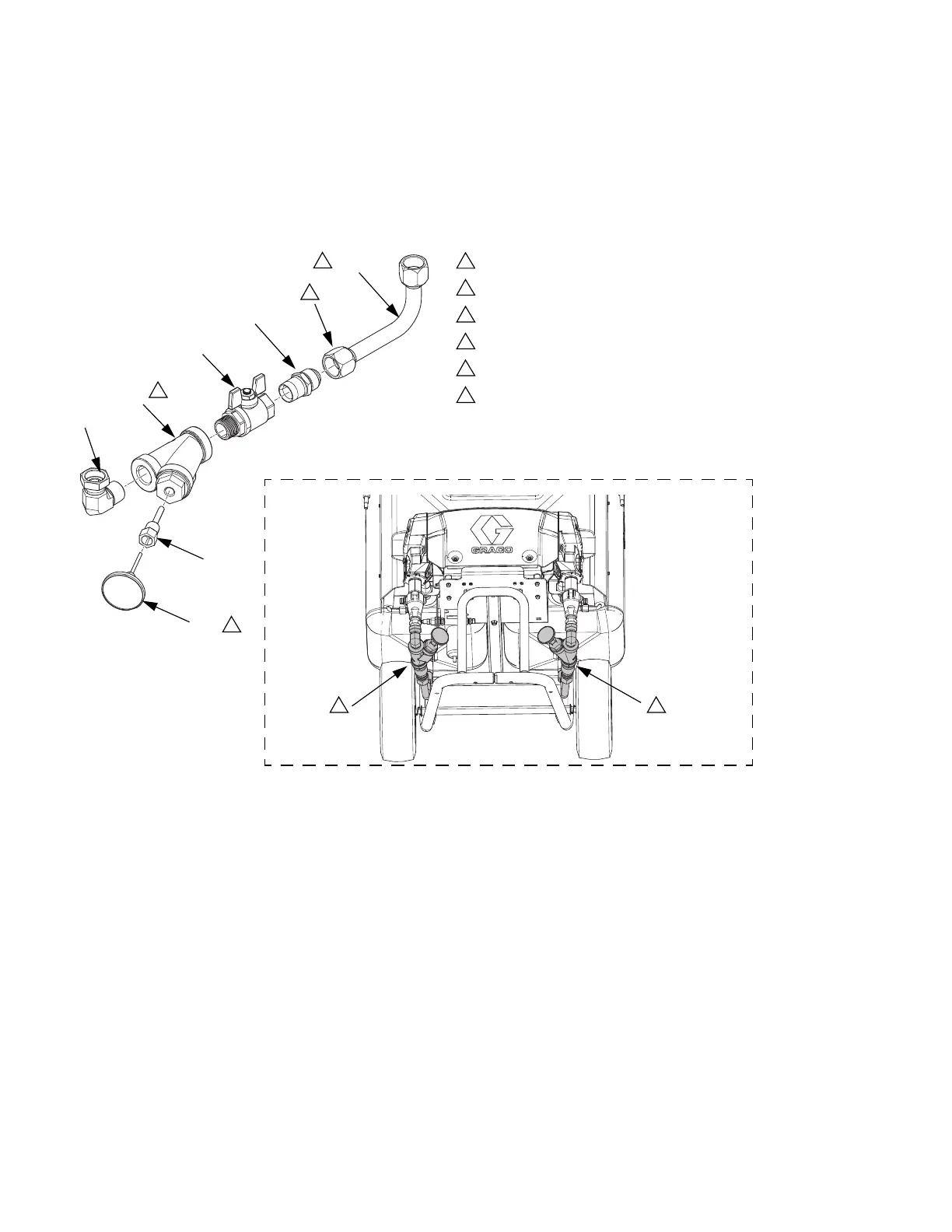

Fluid Inlets
24T986, ISO Inlet
24T982, RES Inlet
Align Y-strainer as shown
Apply sealant to all npt threads. Do not apply to JIC threads.
Apply thermal lubricant to thermometer probe.
Torque fitting of bent tube to 45-50 ft-lbs (61-67 N•m).
Align bent tube to fitting within 2°.
Align thermometer dial as shown.
1
2
3
4
5
6
406
405
404
401
402
403
407
3
1
4
5
6 6
24T986 24T982
ti21851a
ti21852a
Ref. Part Description Qty.
401 101078 STRAINER, Y
1
402 15D757 HOUSING, thermometer, Viscon HP
1
403 102124 THERMOMETER, dial
1
404 24T983 VALVE, ball, 3/4 npt, mxf, T-handle
1
405 24T984 FITTING, adapter JIC-12 X 3/4 npt,
mxm
1
406 24T985 TUBE, assy, inlet
1
407 160327 FITTING, union adapter, 90°
1
