WP810 Administration Guide
Version 1.0.7.83
9.
Alphanumeric Keypad
Provides the digits, letters, and special characters in context-sensitive
applications. For + sign, press and hold key 0.
10.
Hands-free / Speaker
key
Activates or deactivates the mute feature when keep pressing on *
in idle screen.
11.
LED indicator
1dual-color LED indicator indicating power, call, battery, message
waiting…
12.
3.5 mm headset jack
Phone connector for the headphones/headsets.
13.
Color LCD Screen
1.8-inch (128x160) color LCD
14.
Softkeys
Correspond to functions displayed on the LCD. These functions
change depending on the current context.
15.
Menu/OK key
Access to contacts list.
16.
On-hook or Power key
Selects the option chosen by the cursor or enters the main menu from
the home screen.
17.
# / Lock key
Terminates calls or turns the handset on / off.
18.
Contacts
Locks keypad against unintentional entries when keep pressing #.
 Press and hold # key for approximately 2 seconds to lock the keys.
 Press Unlock softkey and then # to unlock the keys.
19.
Microphone
Picks up audio earpiece and hands-free calls.

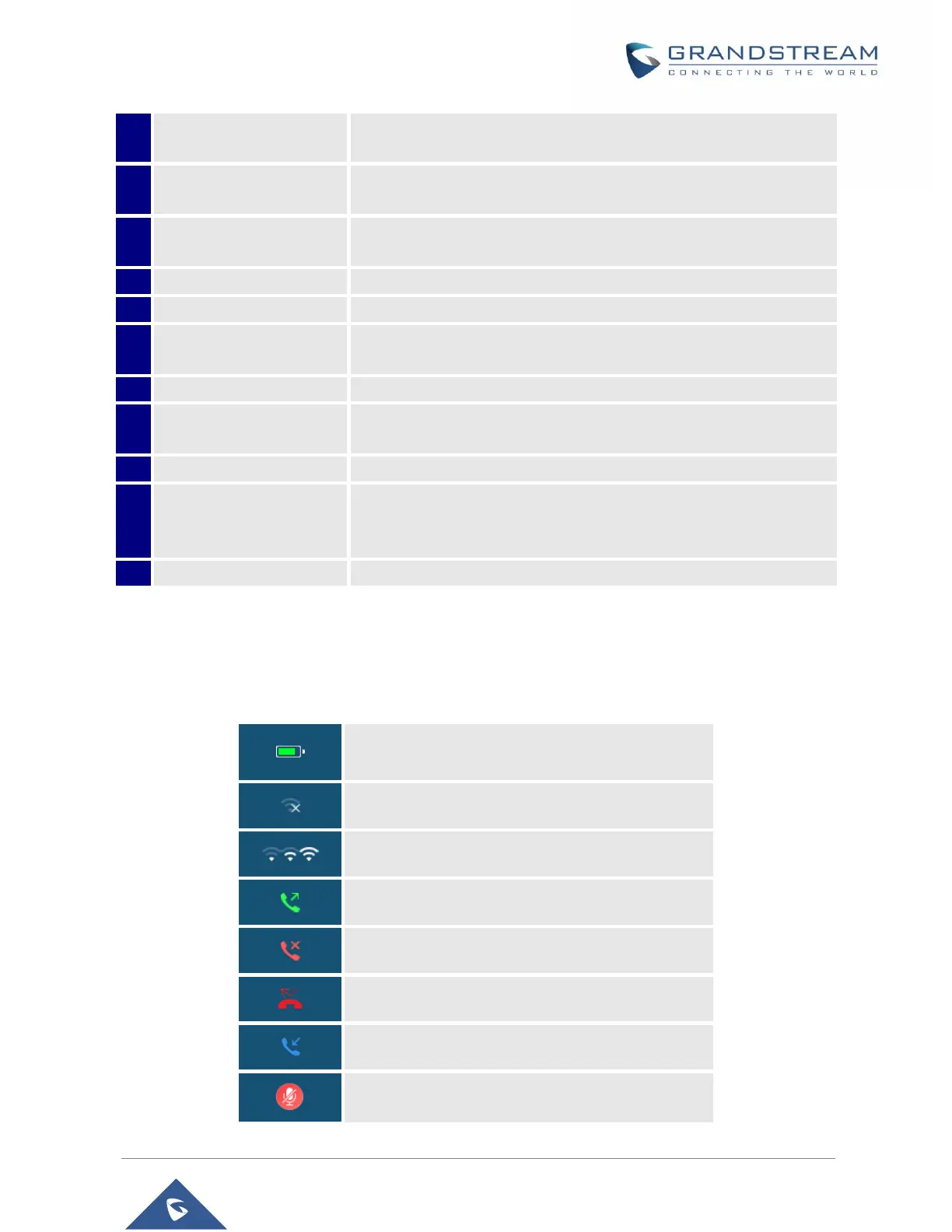

WP810 Icons Description
Following table contains description of each icon that might be displayed on the screen of the WP810.
Table 5: WP810 Icons Description
Battery status
Charging
Wi-Fi not enabled/configured
Wi-Fi signal status
Outgoing Call notification
Missed Call notification
Rejected Call notification
Incoming Call notification
Mute enabled icon
