The 13-pin jack that comes with the Hexpander can be mounted
on the edge, on the front, or on the back of the instrument. Edge-
mounting requires a rectangular hole and the included 13-pin jack
plate, while front and rear mounting can either use the jack plate
or a round hole. The Hexpander board can be located in the control
cavity, but it must not touch any electrical components or shielding.

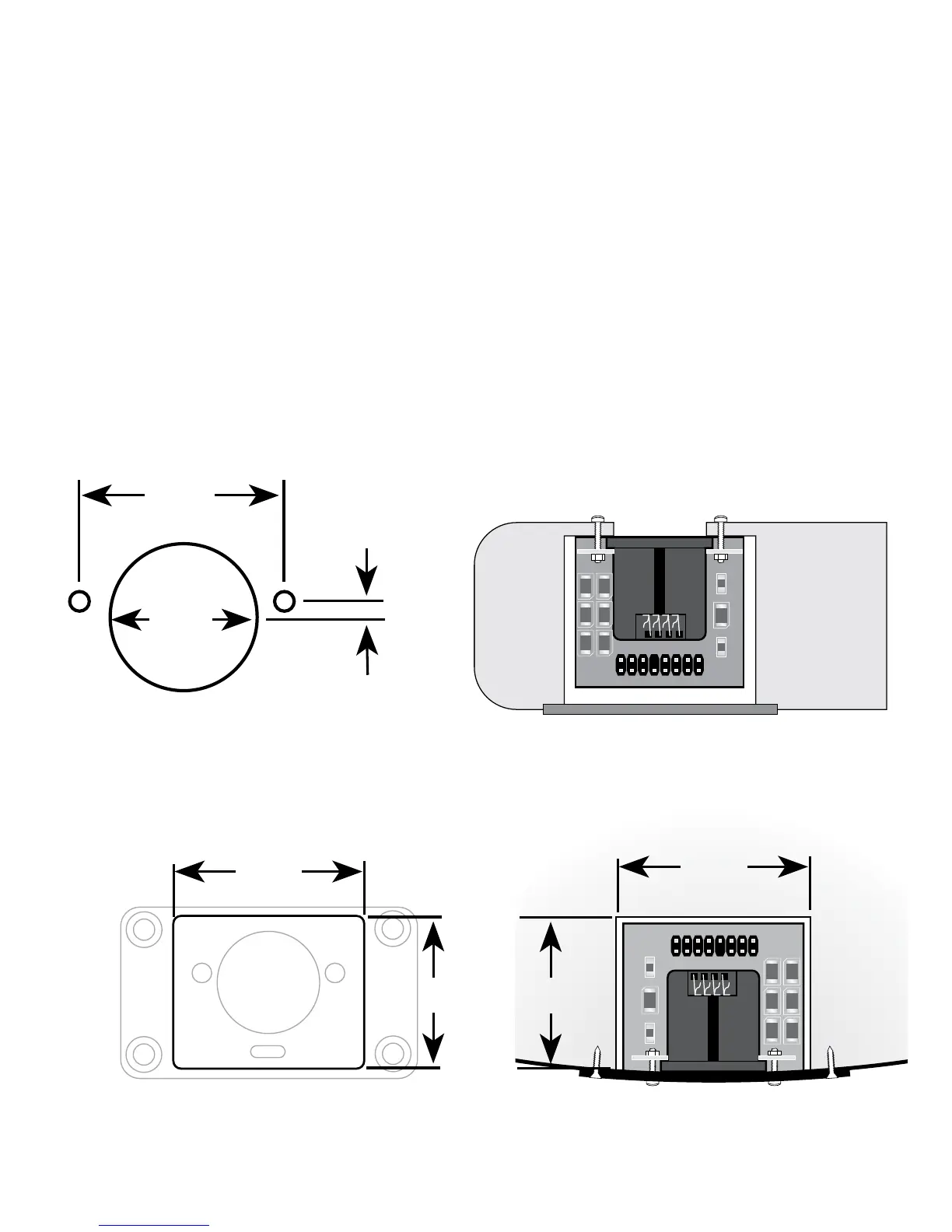

Hexpander and 13-pin Jack
Output Jack Hole Size
7/8”
1/16”
5/8”
Rear Mount
Output Jack Cavity Size
1 1/4”
1”
Edge or Front Mount with jack plate
1-1/8”
1 1/4”
