53

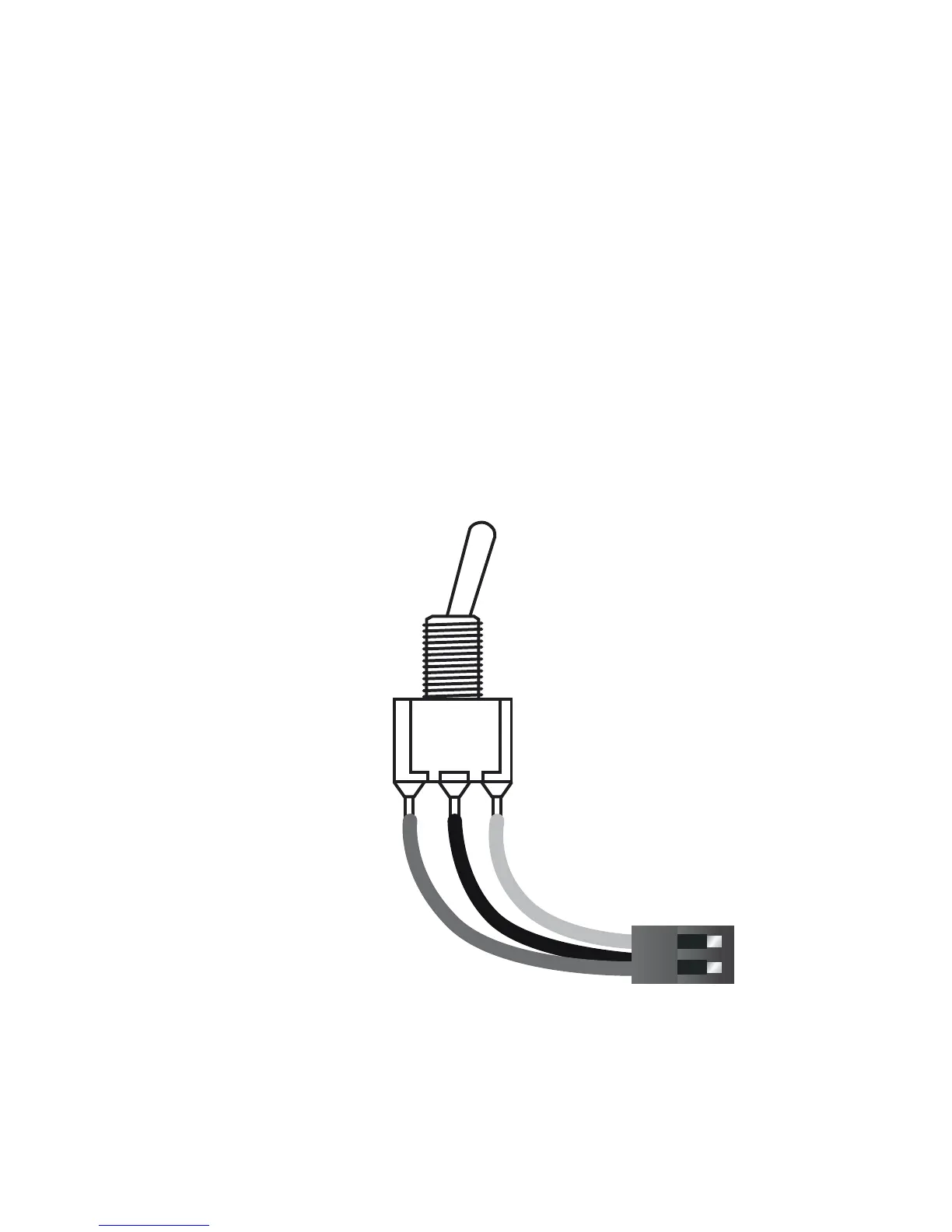

Drill a 1/4” hole in the pick guard or guitar top and mount the
QuickSwitch using the nuts and washers supplied. Orient the
switch according to your preference, using the colors of the wires
soldered onto the switch to indicate which direction is which.
Plug the QuickSwitch into the second row of the Hexpander
on the pins marked MM and AM to select MIDI/both/guitar.
QuickSwitch for MIDI/both/guitar *optional*
Quick
Switch
both
MIDI
Hexpander
MM
AM
Red
Blue
*
What’s on
the other
QuickSwitch
