Graphtech Ghost User Manual

60

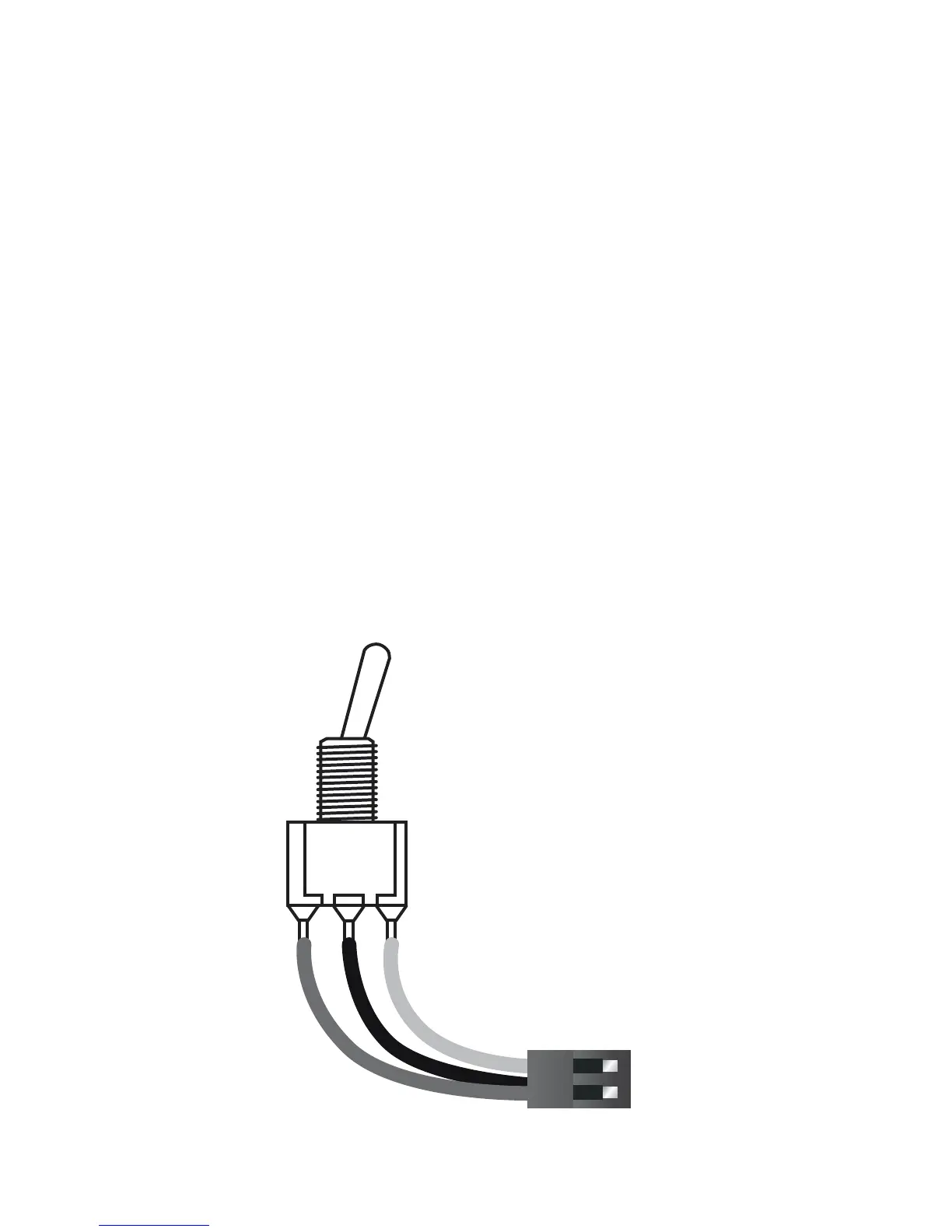

Drill a 1/4” hole in the pick guard or guitar top and mount
the QuickSwitch using the nuts and washers supplied.
Orient the switch according to your preference, using the
colors of the wires soldered onto the switch to indicate
which direction is which. Plug the QuickSwitch into the
Acousti-Phonic (or on the pass-through pins marked Q Q in
the piggyback conguration) to select mag/both/acoustic.
QuickSwitch for mag/both/acoustic
*optional*
Quick
Switch
both
magnetic acoustic
Acousti-phonic
QSW
QSW
Red
Blue
