54
Use an existing hole, or drill a new 9/32” hole in the pick guard
or guitar top and mount the pot using the nuts and washers

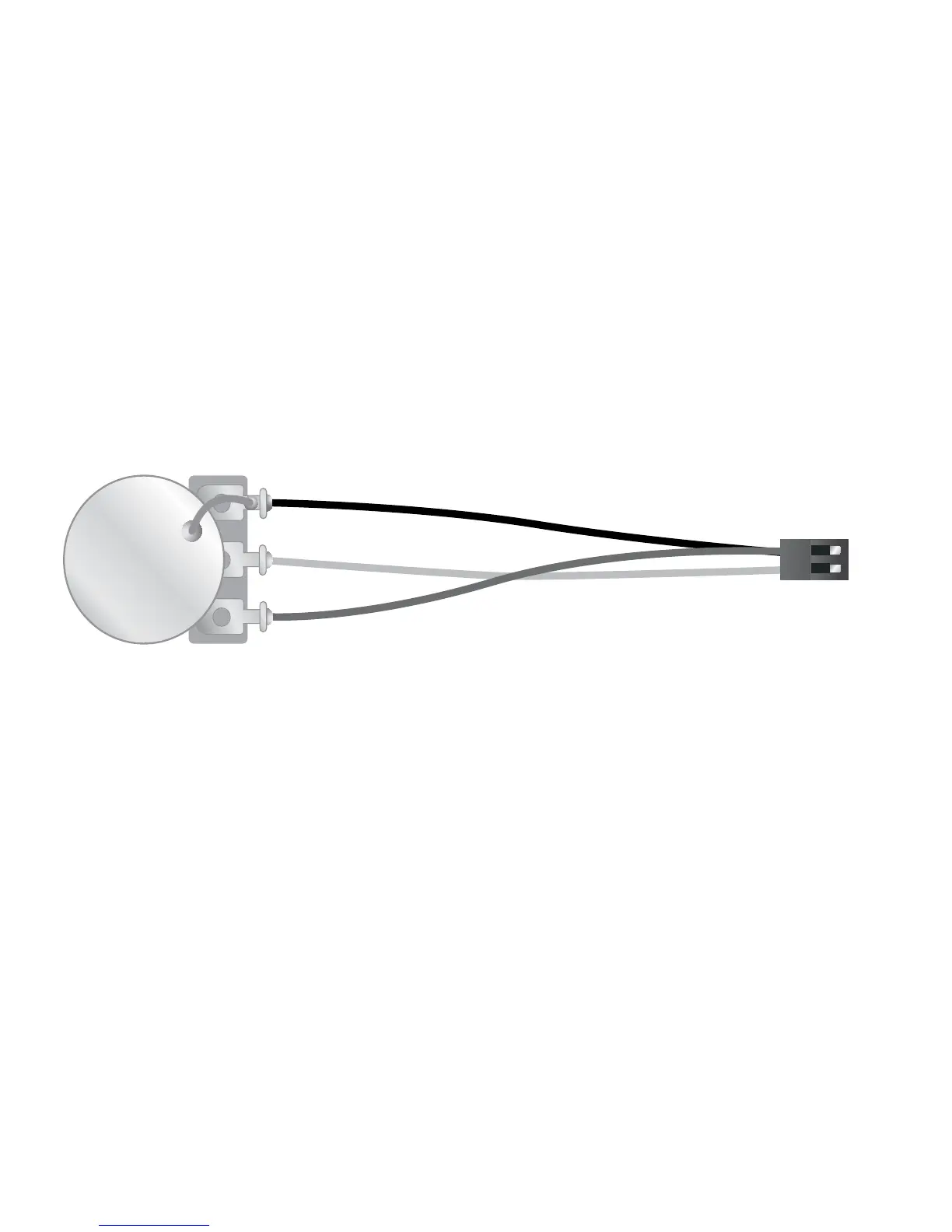

supplied. Plug the MIDI volume pot connector (red, white, and
black wires) into the Hexpander on the rows marked VO and VI.
MIDI volume pot *optional*
Note: a 250k linear-taper pot is preferred, but it will work with
a 250K audio-taper pot too. (regular guitar pots are audio-
taper) You will still be able to control MIDI volume if you use
an audio-taper pot, but mid-volume will not be at mid-scale.
