38

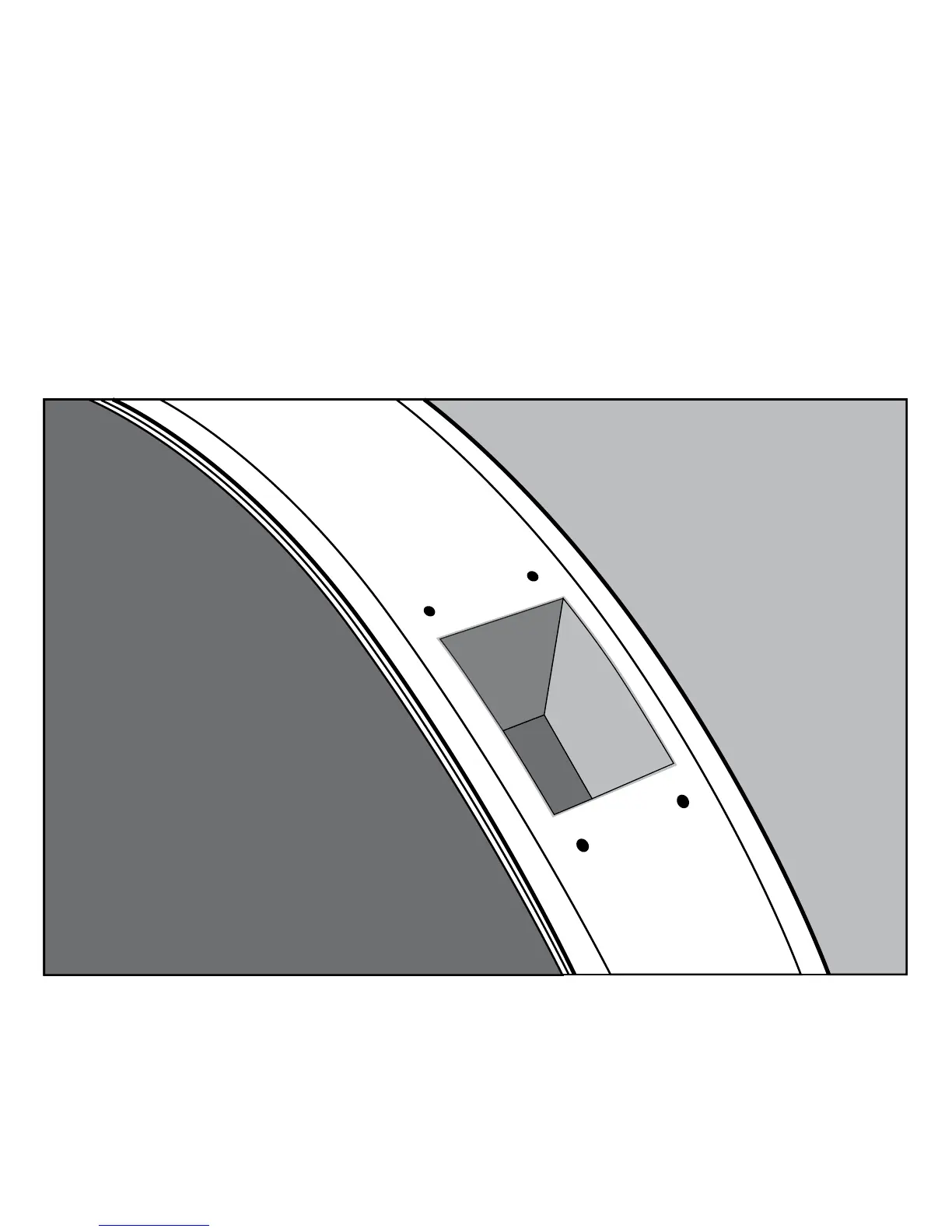

Using a router, a Dremel rotary tool, or a chisel, remove the
remaining wood to edges of the marked rectangle, to a
depth of 1-1/8”. Be careful not to enlarge the mounting hole
beyond the lines, as the jack plate ts quite precisely to these
dimensions. Remember, this cavity does not have to be neat
and smooth, as it will be hidden completely by the jack plate.
Drill through the back of this cavity to join it to the main control
cavity where the Hexpander will be located. Two 5/16” holes side by
side makes a slot wide enough for the ribbon cable to t through.
