GRASS VALLEY Trinix User Manual

Duplication and Expansion
Planning and Installation Manual 131
Restricted Output Expansion
In this application one or more input blocks are not passed through a
splitter and are therefore not boosted. For example, in the system shown
in Figure 68, inputs 1-16 are not split (and therefore are restricted to
outputs 1-512).

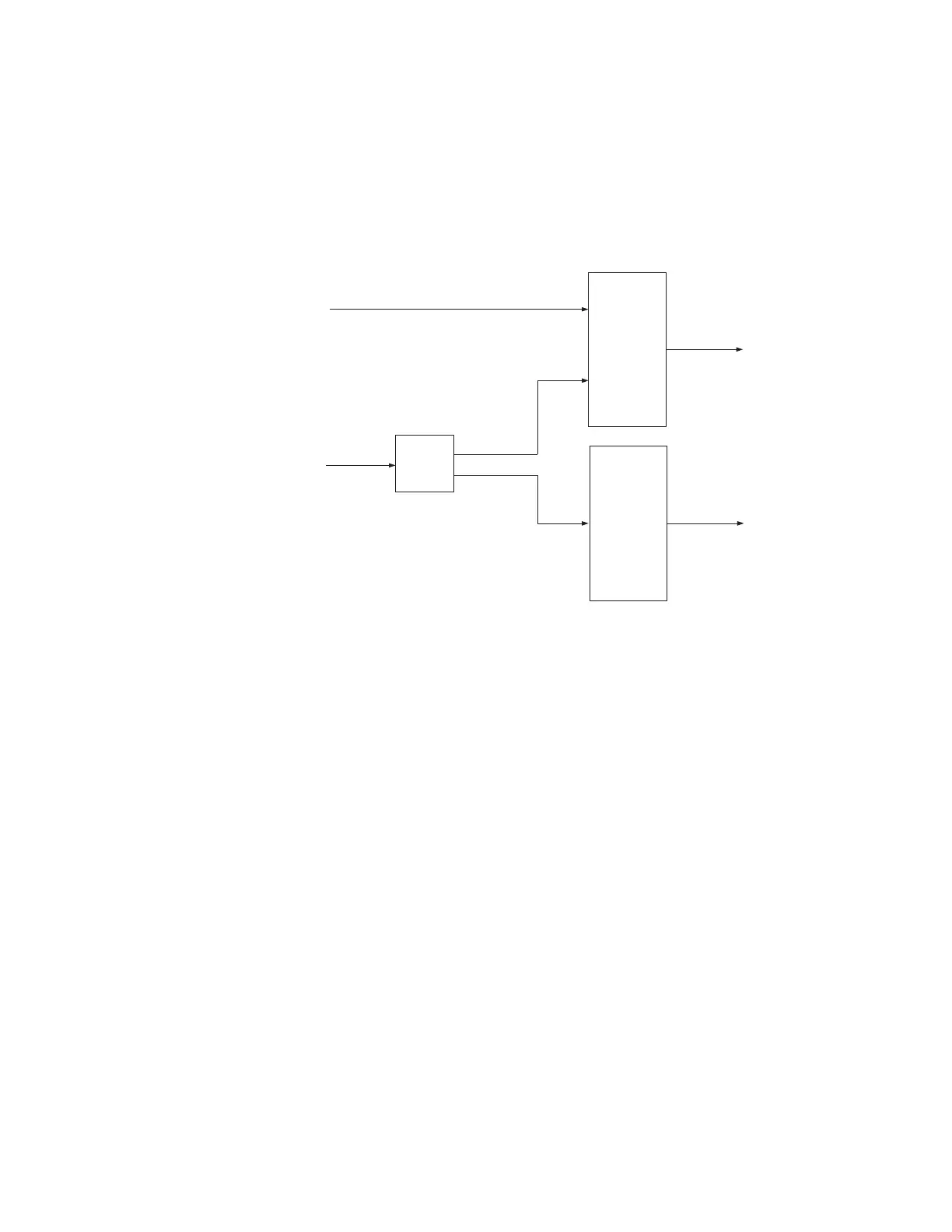

Figure 68.
In this example:
• For SI-33110 and HI-33110 input boards, the gain for inputs
17-512 would be boosted by closing the rear-panel Output
Expand DIP switches on both chassis and verifying that the
on-board jumpers for that set of inputs are in the “Expand
Enable” position. The location of the boost jumpers on these
input boards is shown on page 132. (“Base” refers to the 16
lower-numbered inputs to the main board; “Mez” refers to
the 16 higher-numbered inputs to the mezzanine board.)
The gain for inputs 1-16 must be held at unity by setting the
on-board jumper for that set of inputs to the “Force Normal”
position; this overrides the rear-panel DIP switch setting for
those inputs.
17 - 512
1 - 16
1 - 512
513 - 1024
17 - 512
17 - 512
Outputs
expanded
to 1024
(restricted)
32
PE 33016
used as
splitters
Trinix
Frame 0
512 x 512
Trinix
Frame 2
512 x 512
