Planning and Installation Manual 173
Configuration
1. Connect to the router following the procedure described on
page 166.

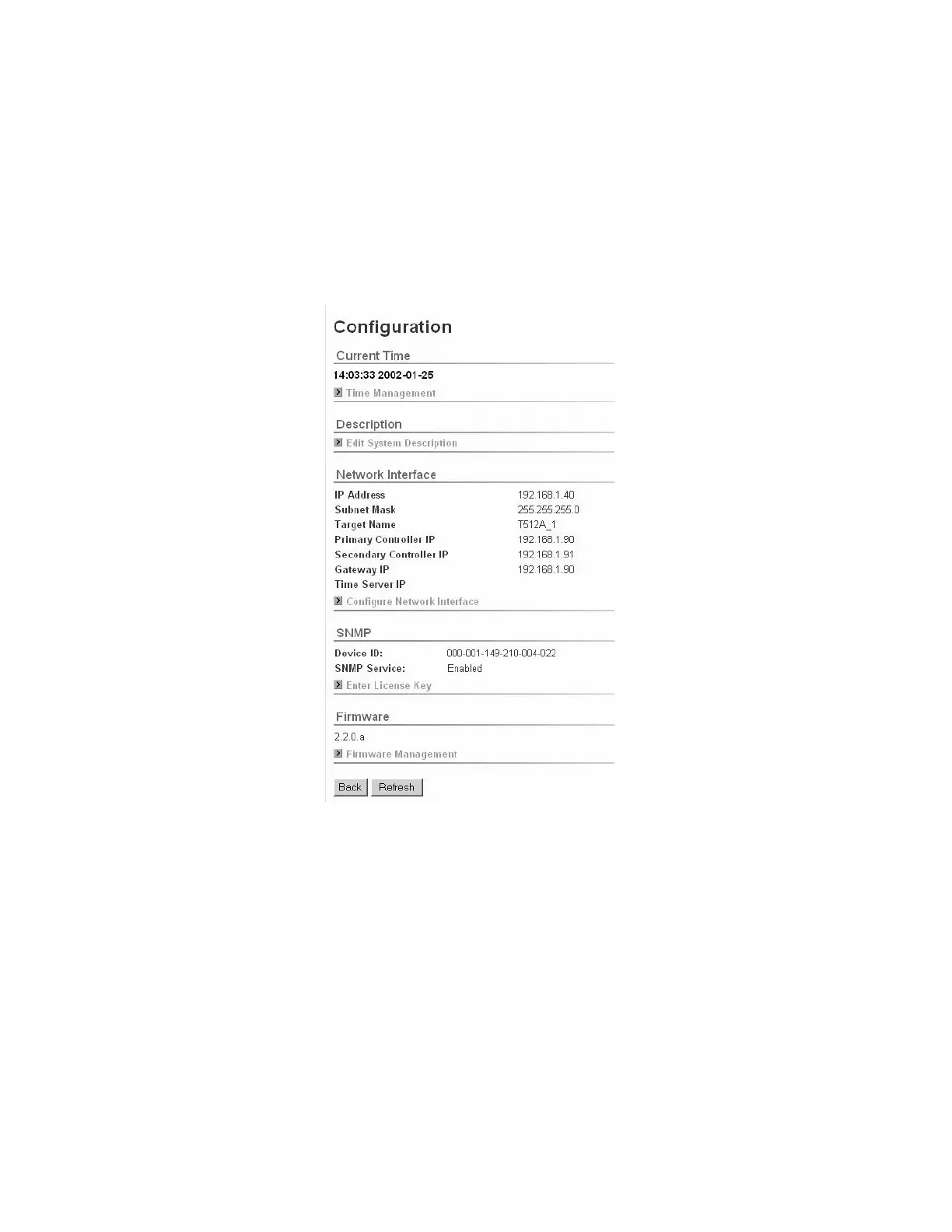

2. Select “Configuration.” This will display a menu similar to that
shown in Figure 101.
Figure 101.
The “Firmware” field shows the version number of the last-activated
top-level software package. In most cases, this will be the version that
is currently running in the system. However, if a PC board (such as an
input board or output board) has been replaced, and the new board
contains different firmware, then the version indicated here will no
longer be accurate. For more information, see page 175.
Opening any of these menus will require entry of the logon user name
“admin” and password “admin.” (The present version of software does
not allow changing the user name and password.)
Note More than one “admin” user can be logged on at the same time. There
is no indication when this is the case.
