SMS Control
In this arrangement the router is under SMS control via a LAN connec-
tion. The PC is used to configure the SMS and is also available for
Broadlinx or SNMP monitoring. See Figure 36.

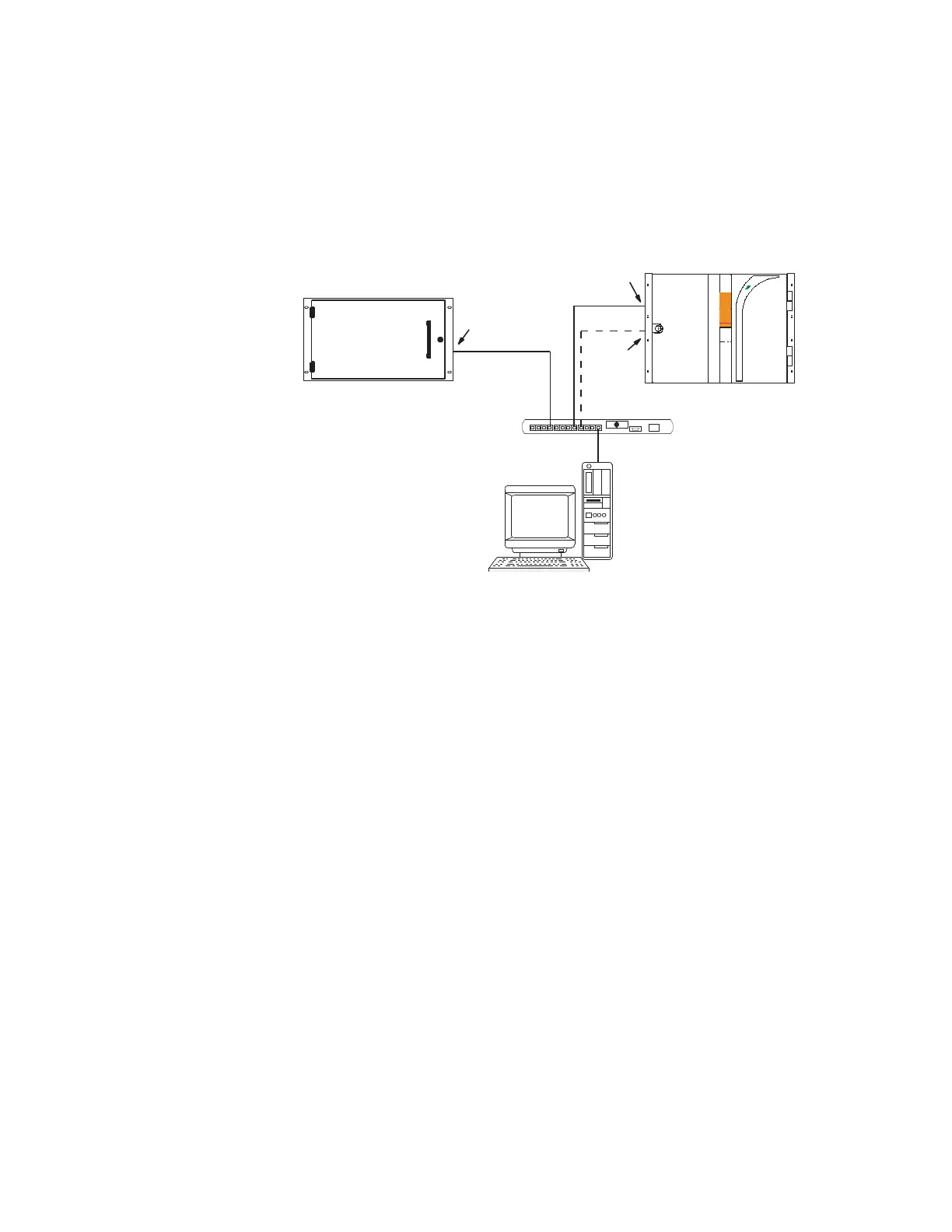

Figure 36. SMS connections to Trinix.
If you plan on using a secondary NR-33000 board another Ethernet
cable must be connected from the “NIC B” jack to the network
switch.
If the Trinix LAN is connected to the Internet the connection should
be made through a firewall.
NIC A
connector
Ethernet switch
NIC B
connector
Trinix
MCPU frame
7000 SMS
PC
Ethernet
connector
