GRASS VALLEY Trinix User Manual

LAN and Com Bus Connections
Planning and Installation Manual 75
Encore Control
In this arrangement the router is under Encore control via a LAN con-
nection. The PC is used to configure the Encore and is also available for
Broadlinx or SNMP monitoring. Figure 37 shows the recommended
connections when the system is equipped with redundant NR-33000
boards and redundant Encore controllers.

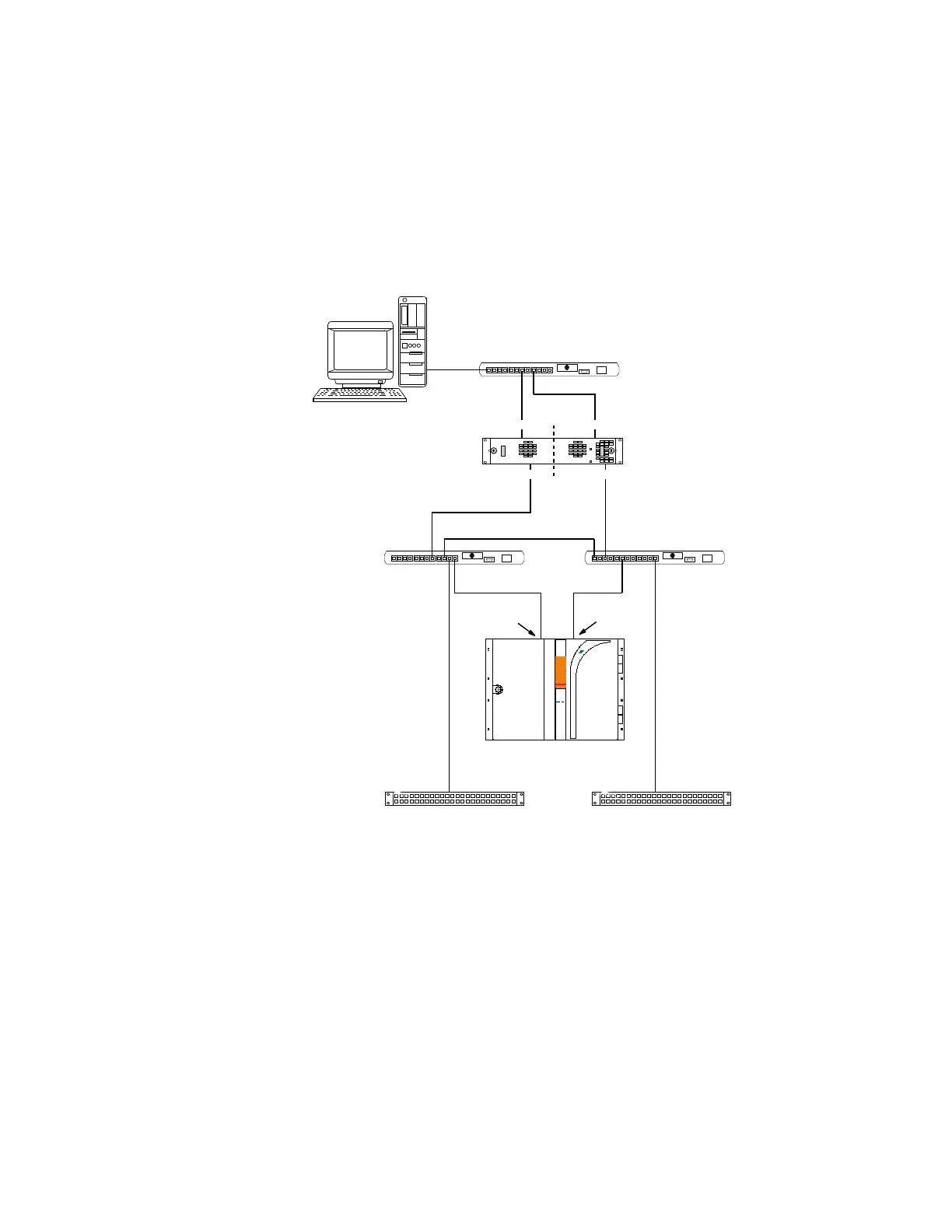

Figure 37. Encore connections to Trinix
NIC A
connector
Trinix
PC
Ethernet switch
Ethernet switch
Ethernet switch
Secondary Encore controller
Primary Encore controller
EN2
EN1
EN2
NIC B
connector
Encore control panels
EN1
