Greenlee 855 - Offsets (Controlling the End of the Second Bend); Three-Bend Saddle

Greenlee Textron / Subsidiary of Textron Inc.
20
4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
855 Smart Bender™

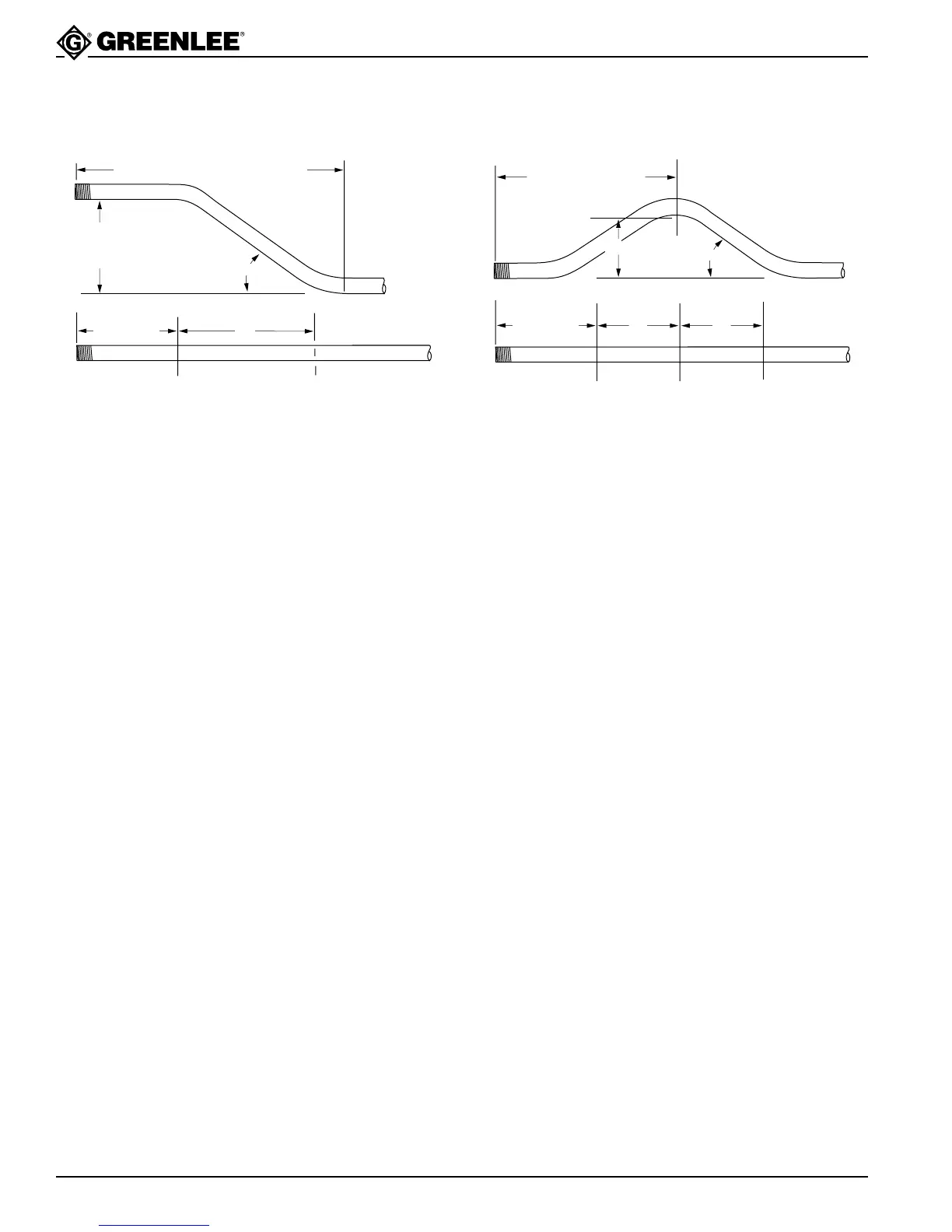

Offsets (controlling the end of the second bend)
BENDING
MARK 1
BENDING
MARK 2
HEIGHT
LENGTH TO END OF SECOND BEND
ANGLE
LENGTH – Z
L1
1. Go to the following chart which is for the size and
type of conduit you are to bend.
2. Look down the ANGLE column until you come to
the angle you want to bend to.
3. Look at the numbers in the row preceded by Z and
pick the one that is directly under the height (H) you
want.
4. Subtract this Z dimension from the desired length.
5. Place your first mark this distance from the end of
the conduit.
6. Look at the numbers in the row preceded by L1 and
pick the one that is directly under the height (H) you
want.
7. Place a second mark this distance from your first
mark.
8. Make your first bend after placing the front edge of
the hook on the first mark and your second bend
after placing the front edge of the hook on the
second mark.
Special Bending Information (cont’d)
Three-Bend Saddle
BENDING
MARK 1
BENDING
MARK 3
BENDING
MARK 2
LENGTH – Z
L1 L2
LENGTH TO CENTER
ANGLE
HEIGHT
1. Go to the following chart which is for the size and
type of conduit you are to bend.
2. Look down the ANGLE column until you come to
the angle you want to bend to.
3. Look at the numbers in the row preceded by Z and
pick the one that is directly under the height (H) you
want.
4. Subtract this Z dimension from the desired length.
5. Place your first mark this distance from the end of
the conduit.
6. Look at the numbers in the row preceded by L1 and
pick the one that is directly under the height (H) you
want.
7. Place a second mark this distance from your first
mark.
8. Look at the numbers in the row preceded by L2 and
pick the one that is directly under the height (H) you
want.
9. Place a third mark this distance from your second
mark.
10. Make your first bend after placing the front edge of
the hook on the first mark and your second bend
after placing the front edge of the hook on the
second mark. Remember to make the second bend
double the first bend. Make your third bend after
placing the front edge of the hook on the third mark.
