Greenlee 855 - Electrical Control System Layout and Parts List

Greenlee Textron / Subsidiary of Textron Inc.
49
4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
855 Smart Bender™

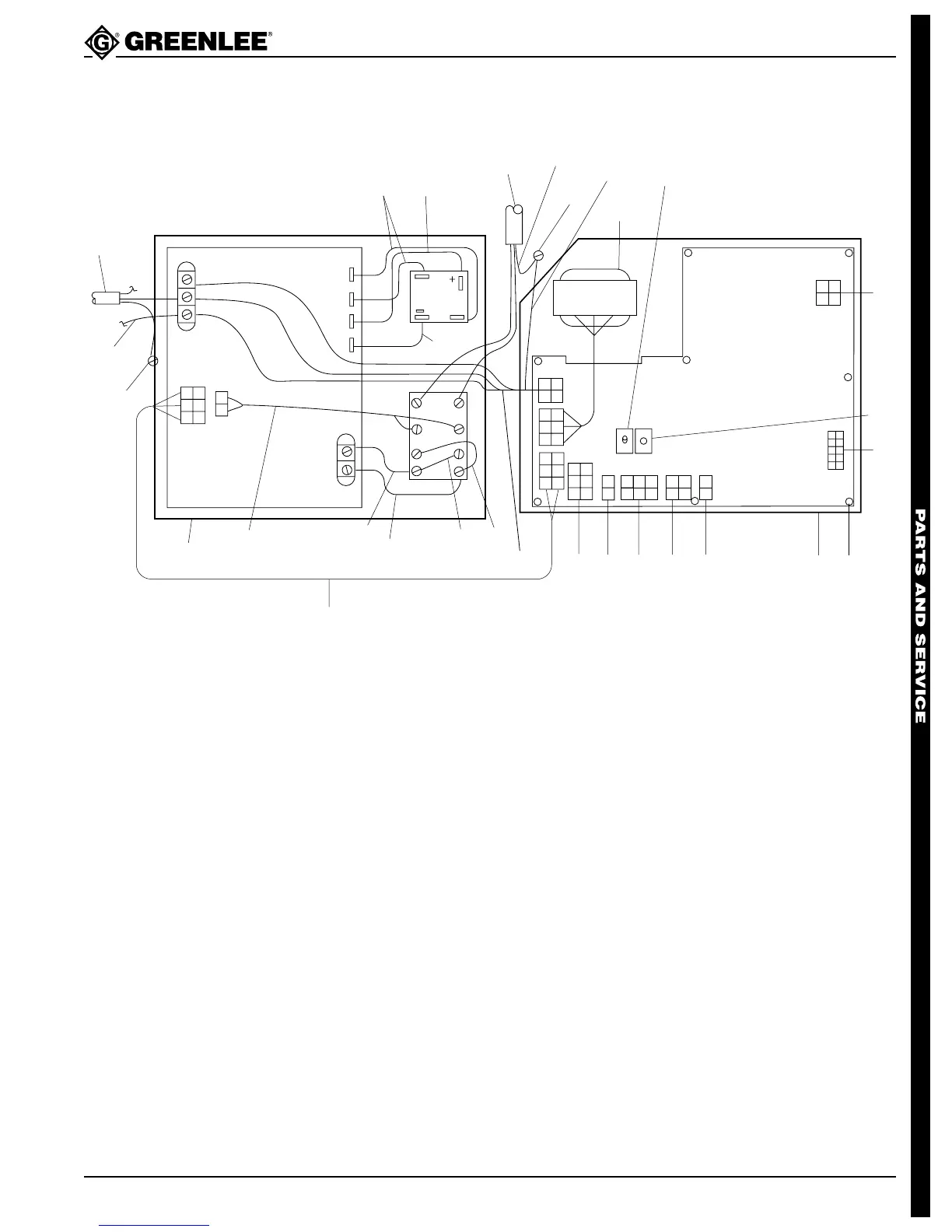

Electrical Control System Layout and Parts List
GREEN
GREEN
GREEN
WHITE
BLACK
PGU BOARD
BLACK
RED
YEL
YEL
RED
BLACK
RED
BLACK
BLACK
WHITE
I/O BOARD
7
1
3
18
19
2
21
22
4
5236
10
9
12
20
11
13
8
26
14
17
27
27
24
15
28
16
Key Part No. Description
1 503 8941.6 PGU Power Wire
2 503 8250.0 Motor
3 503 8603.4 Power Cord
4 500 1708.0 Receptacle Unit
5 503 8636.0 Limit Switch Wire Unit
6 503 8637.9 Brake Wire Unit
7 503 8638.7 Unload Lock-Out Switch Unit
8 503 8639.5 Relay Wire Unit
9 503 8640.9 Red Relay Wire
10 503 8175.0 Black Relay Wire
11 503 8961.0 Red Relay–PGU Wire
12 503 8960.2 Black Relay–PGU Wire
13 503 8648.4 I/O–PGU Wire Unit
14 500 1741.1 I/O to Power Wire Unit
Key Part No. Description
15 500 1707.1 Input/Output Control Unit
16 Directional Test Toggle Switch
17 Test Push Button Switch
18 503 8643.3 Yellow Rectifier Wires
19 503 8642.5 Red Rectifier Wire
20 503 8641.7 Black Rectifier Wire
21 503 8647.6 Transformer Unit
22 500 1084.0 Selector Switch Unit w/o knobs
23 503 8646.8 Optical Encoder
24 503 8902.5 Power Generation Board Assembly
26 Test Terminal (Troubleshooting)
27 905 4329.7 Screw, #8-18 x 3/8 Ground
28 918 6644.8 Support, I/O Board
