Greenlee 855 - Optional Bending Attachments Parts List

Greenlee Textron / Subsidiary of Textron Inc.
48
4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
855 Smart Bender™
15
16
10
11
12
13
17
9
8
14
4
5
6
7
4
1
2
3
UPC No.
Key 78-3310- Part No. Description Qty.
00572 500 0572.3 Shoe Unit, 1/2" to 1-1/4" PVC-
Coated Rigid (includes items 1–4) ..... 1
31919 503 1919.1 Shoe Unit, 1-1/2" to 2" PVC-
Coated Rigid (includes items 4–7) ..... 1
00934 500 0934.6 Support Unit, 1/2" to 1-1/4" PVC-
Coated Rigid (includes items 8–17) ... 1
1 00567 500 0567.7 1/2" to 1-1/4" PVC-Coated
Rigid Shoe........................................... 1
2 00570 500 0570.7 1/2" to 1-1/4" PVC-Coated
Rigid Hook........................................... 1
3 51088 905 1088.7 3/8-16 x 1-1/4" Socket Head
Cap Screw........................................... 4
4 52479 905 2479.9 1/2-13 x 5/8" Socket Head
Cap Screw........................................... 5
5 31918 503 1918.3 1-1/2" to 2" PVC-Coated Rigid Shoe.. 1
6 31916 503 1916.7 1-1/2" to 2" PVC-Coated Rigid Hook.. 1
7 53396 905 3396.8 3/4" x 1-1/2" Shoulder Screw.............. 3
8 00933 500 0933.8 Support Weldment,
PVC-Coated Rigid Roller .................... 1
9 51353 905 1353.3 Retaining Ring .................................... 5
10 00923 500 0923.0 1/2" Roller Axle ................................... 1
11 00924 500 0924.9 3/4" Roller Axle ................................... 1
12 00925 500 0925.7 1" Roller Axle ...................................... 1
13 00926 500 0926.5 1-1/4" Roller Axle ................................ 1
14 00927 500 0927.3 1/2" Roller ........................................... 1
15 00928 500 0928.1 3/4" Roller ........................................... 1
16 00929 500 0929.0 1" Roller .............................................. 1
17 00930 500 0930.3 1-1/4" Roller ........................................ 1
18 54910 905 4910.4 Retaining Ring Pliers (not shown) ...... 1
19 23818 502 3818.3 Metal Storage Box (not shown) .......... 1
Optional Bending Attachments for 1/2" to 2" 40 Mil PVC-Coated Rigid

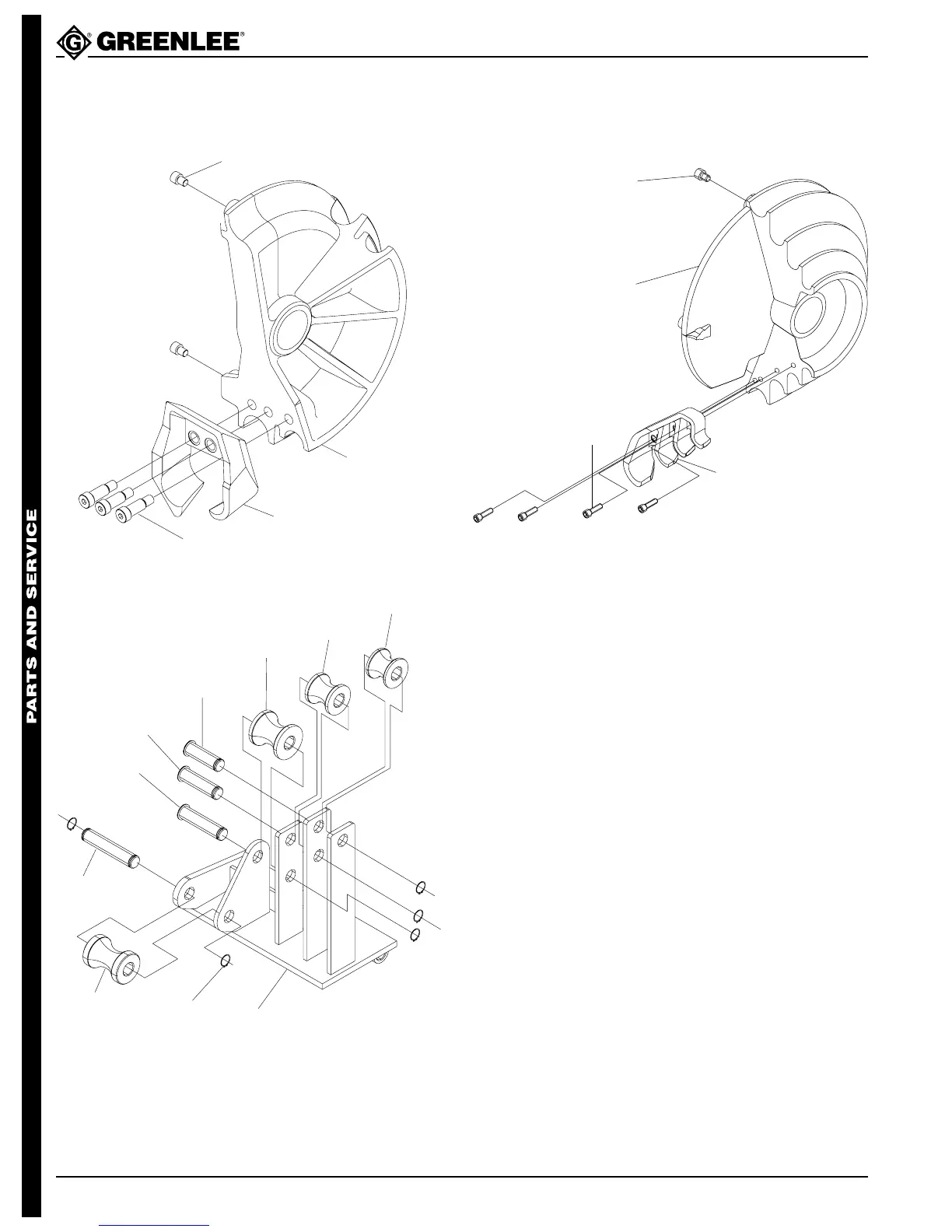

(500 1700.4) Exploded View and Parts List
