-64-
Model G0817 (Mfd. Since 05/16)
Checking/Adjusting Guide Post
Parallel with Blade Front to Back
1. DISCONNECT MACHINE FROM POWER!
2. Loosen guide post lock knob, lower blade
guide assembly all the way, then tighten lock
knob.
3. Remove (2) M5-.8 x 10 cap screws and 5mm
flat washers that secure guide post guard,
then carefully remove guard (see Figures
101–102).
Note: It helps to rotate guard counterclock-
wise while removing it.
Distance "A"
Distance "B"
(Right Side View)
Guide Post
Blade

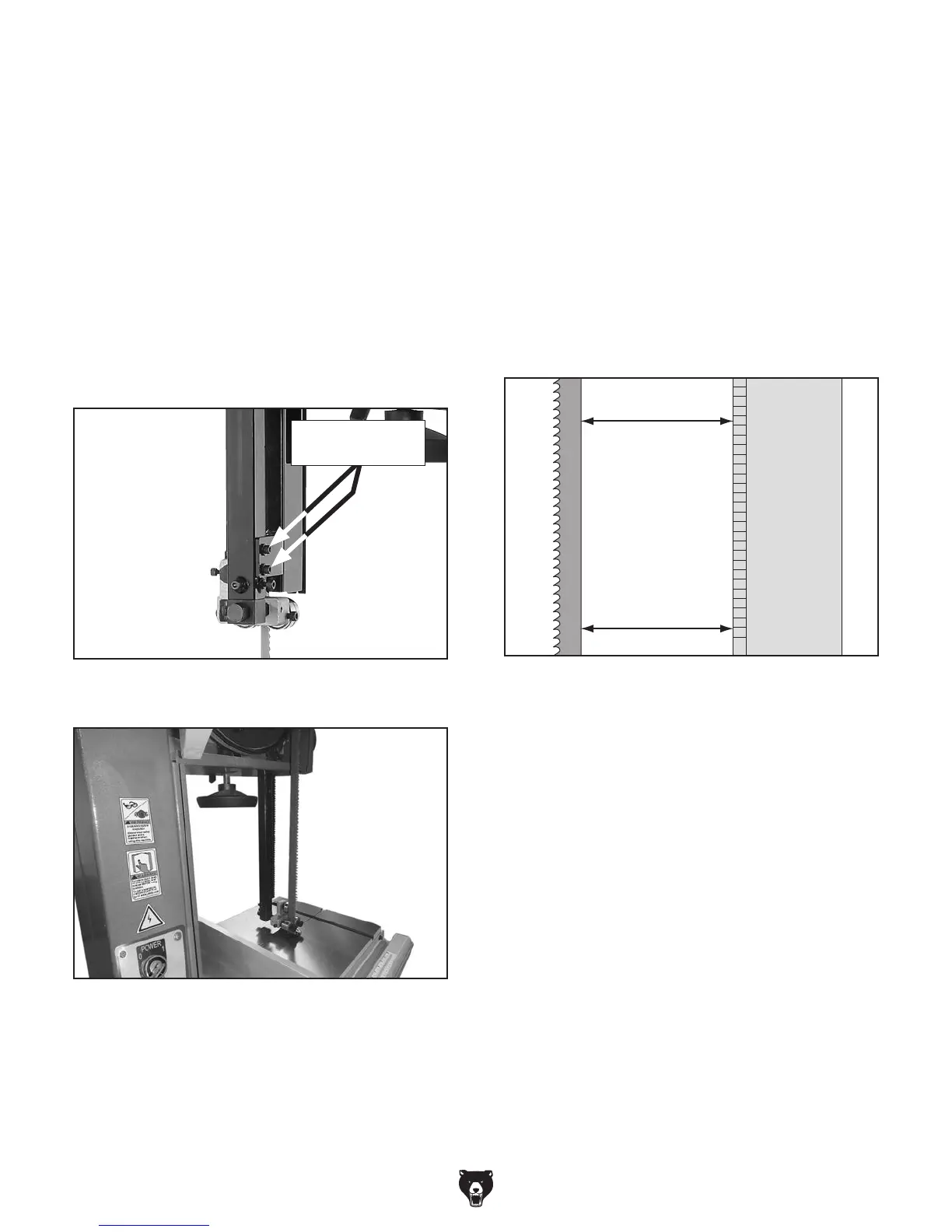

Figure 103. Example of measuring distance
between guide post rack and blade.
4. Measure distance "A" between upper front
face of guide post rack back of blade (see
Figure 103).
5. Measure distance "B" between bottom front
face of guide post rack and back of blade
(see Figure 103).
— If measurements taken in Steps 4–5 are
equal, no adjustments need to be made.
Go to Step 9.
— If measurements taken in Steps 4–5 are
not equal, proceed to Step 6.
Figure 102. Guide post guard removed.
Figure 101. Location of cap screws and flat
washers that secure guide post guard.
Cap Screws and
Flat Washers
To Next Page
