Model G0817 (Mfd. Since 05/16)
-65-
6. Loosen four cap screws shown in Figure 104.
— If guide post to blade distance is greater
at bottom than at top, tighten two upper
set screws shown in Figure 104 an equal
amount until guide post is parallel with
blade.
— If guide post to blade distance is greater
at top than at bottom, tighten two lower
set screws shown in Figure 104 an equal
amount until guide post is parallel with
blade.
7. Tighten four cap screws shown in Figure
104, then repeat Steps 4–5.
— If measurements are equal, proceed to
Step 9.
— If measurements are not equal, repeat
Steps 6–7 until guide post is parallel with
blade.
8. Re-install guide post guard using screws
removed in Step 3.
9. Rotate upper wheel by hand and make sure
blade does not contact guide post guard. If it
does, loosen cap screws from Step 3, adjust
guard so that blade will not make contact with
it, then retighten screws.

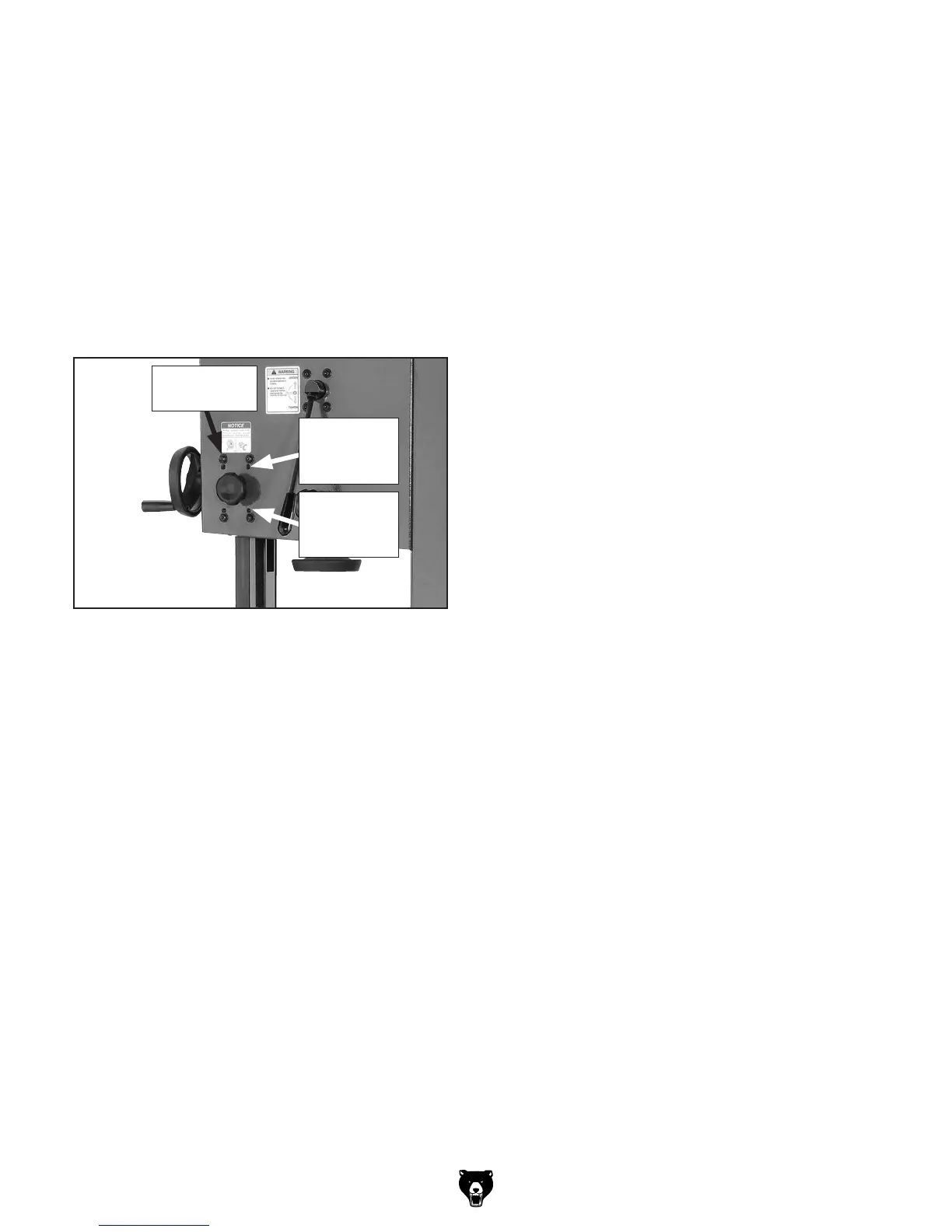

Figure 104. Guide post parallelism adjustment
screws.
Cap Screws
(1 of 4)
Upper
Set Screws
(1 of 2)
Lower
Set Screws
(1 of 2)
