Growatt SPH4000 Installation Manual

make sure that the maximum input voltage of the inverter is not exceeded.

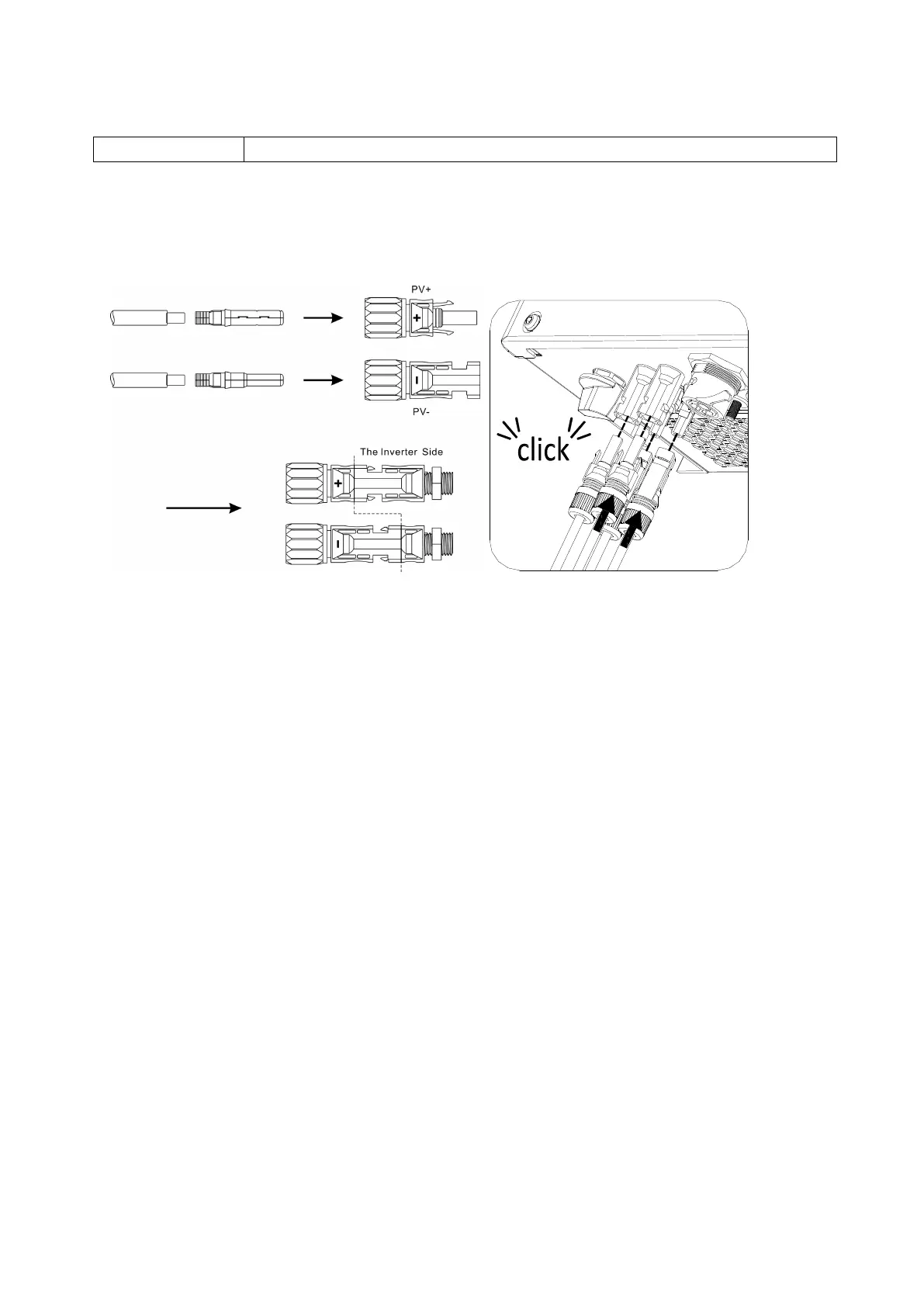

Connection of PV terminal
Chart 5.9
Similar to the traditional inverter connecting, the input of PV panel energy can be realized by using MC4 PV
terminal, the detail steps are as follows:
1. Turn off PV switch.
2. Insert PV panel positive and negative cables into MC4 terminal, then connect positive pole(+) of
connection cable to positive pole(+) of PV input connector, connect negative pole(-) of connection cable to
negative pole(-)of PV input connector, please pay attention to PV input voltage and current within permission
Limit:
Max PV voltage: 550V (consider the lowest temperature)
Max PV input current: 12A
Max PV input power per string: 4000W
Remark:
1. We suggest you use the cable≥4mm
2
/12 AWG to connect.
2. Please do not connect to DC source!
5.4.2 Connection of AC terminal and off grid terminal
SPH has a grid output terminal and off grid out terminal, look down on the SPH from the front, the terminal on
the left (on grid) is grid outlet for connecting grid, the terminal on the right is an emergency power outlet for
connecting critical load.

Growatt SPH4000 Specifications

General

Model	SPH4000
Category	Inverter
Rated Power	4000 W
Max. DC Voltage	550 V
MPPT Voltage Range	120 V - 500 V
Number of MPPTs	2
AC Output Voltage	230 V
Frequency	50/60Hz
Efficiency	97.5%
Start Voltage	150 V
Nominal DC Voltage	360V
Max. Input Current per MPPT	11 A
AC Nominal Power	4000 W
Max. AC Apparent Power	4000 VA
AC Voltage Range	180 V - 280 V
Power Factor	0.8 leading to 0.8 lagging
THDi	<3%
AC Connection Type	Single phase
Max. Charge/Discharge Power	4000 W
Nominal Battery Voltage	48 V
Communication with BMS	CAN/RS485
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Topology	Transformerless
Weight	25 kg
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
