Growatt SPH4000 Installation Manual

Chart 5.10.1 SPH3000-6000TL BL-UP
Chart 5.10.1 Growatt SPH3000-6000
Wire suggest length
Conductor cross
section
Max cable length
Growatt
SPH3000
& SPH
3000TL
UP
Growatt
SPH3600&S
PH 3600 TL
UP
Growatt
SPH4000&S
PH 4000 TL
UP
Growatt
SPH4600&S
PH 4600 TL
UP
Growatt
SPH5000&S
PH 5000 TL
UP
Growatt
SPH6000&S
PH 6000 TL
UP
5.2mm
2
10AWG 40m 33m 28m 26m 25m 23m
6.6mm
2
9AWG 50m 42m 36m 33m 32m 29m

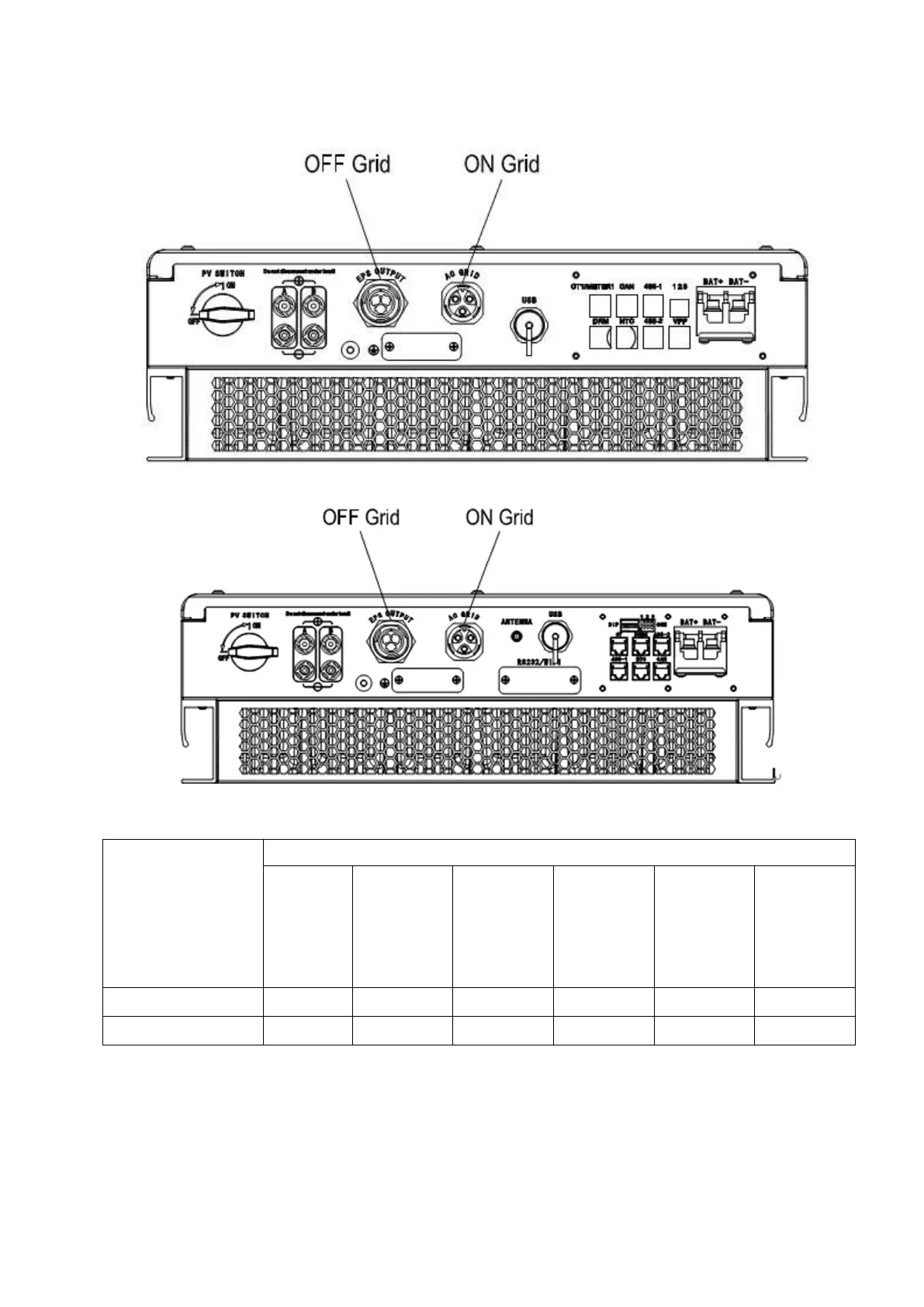

AC output terminal connection steps as follow:

Growatt SPH4000 Specifications

General

Model	SPH4000
Category	Inverter
Rated Power	4000 W
Max. DC Voltage	550 V
MPPT Voltage Range	120 V - 500 V
Number of MPPTs	2
AC Output Voltage	230 V
Frequency	50/60Hz
Efficiency	97.5%
Start Voltage	150 V
Nominal DC Voltage	360V
Max. Input Current per MPPT	11 A
AC Nominal Power	4000 W
Max. AC Apparent Power	4000 VA
AC Voltage Range	180 V - 280 V
Power Factor	0.8 leading to 0.8 lagging
THDi	<3%
AC Connection Type	Single phase
Max. Charge/Discharge Power	4000 W
Nominal Battery Voltage	48 V
Communication with BMS	CAN/RS485
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Topology	Transformerless
Weight	25 kg
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
